Summary of Contents for Deda Elementi SUPERBOX

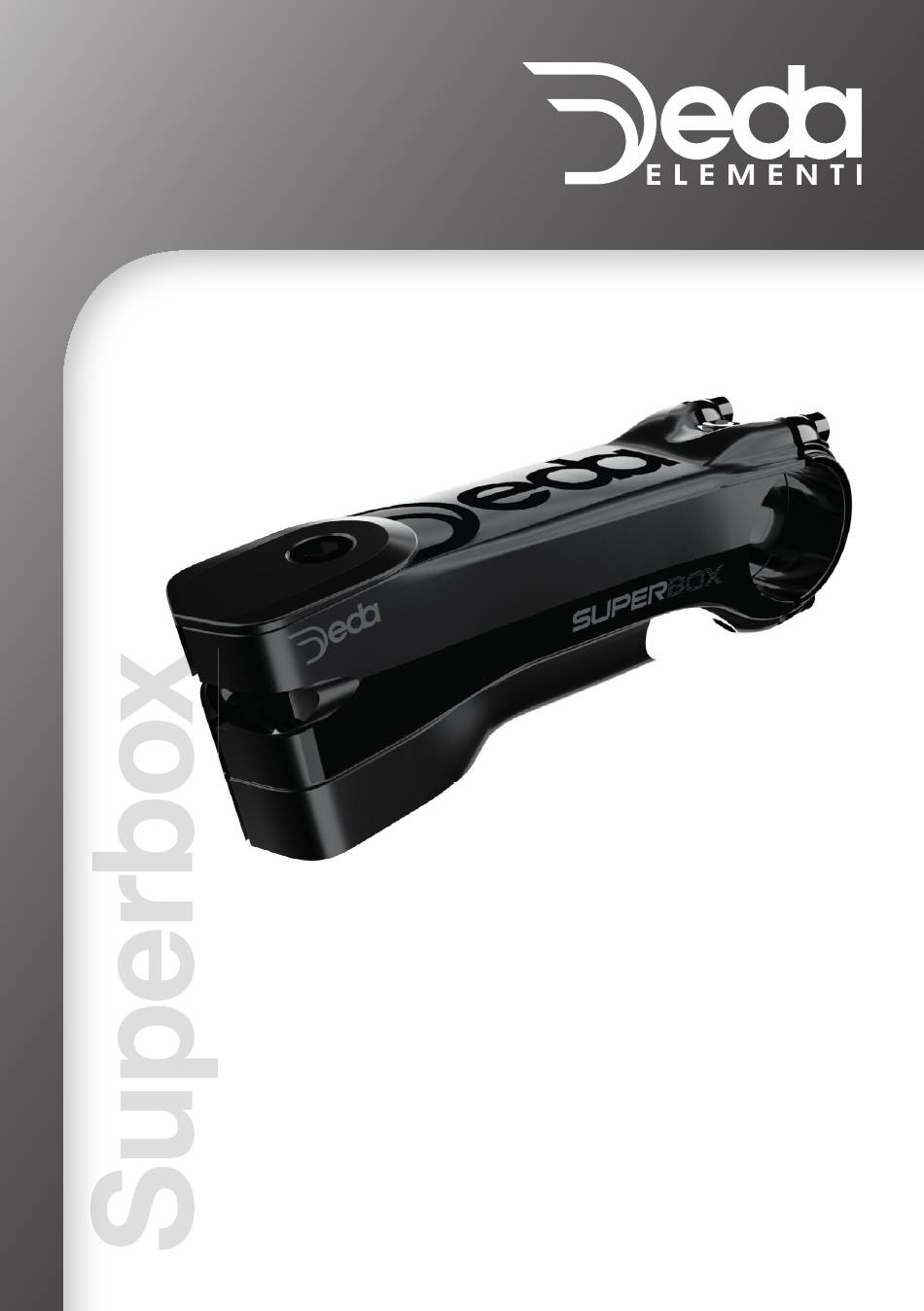

- Page 1 USeR’S MAnUAL Ver. 00 – April 2021 ©Deda Elementi SuPERbOX...
- Page 2 Congratulations for your new Deda Elementi product. Please read these instructions carefully and follow them for correct use. An improper installation or wrong application of the instructions could damage the product, that will be no more covered under warranty, damage the bicycle or cause an accident resulting in injury or death.
-
Page 3: Table Of Contents
CONTENTS GENERAL SAFETY INFORMATION ____________________________________________ pag. 16 WARRANTY _______________________________________________________________ pag. 17 2.1 LIMITS OF WARRANTY PACKAGING _______________________________________________________________ pag. 18 CABLE ROUTINGS _________________________________________________________ pag. 20 4.1 TRADITIONAL BICYCLE FRAME 4.2 BICYCLE FRAME DCR COMPATIBLE 4.4 BICYCLE FRAME WITH D-SHAPE FORK ASSEMBLY INSTRUCTIONS __________________________________________________ pag. 23 INDICATIONS ON PERIODIC CHECKS _________________________________________ pag. -
Page 4: General Safety Information
Deda Elementi dealer to check the correct tightening torques. -
Page 5: Warranty
WARRANTY Deda Elementi warrants that all products are free from defects in materials or workmanship for a period of two years after original purchase unless otherwise stated on the Warranty policy. The Warranty is valid with the purchase of an original Deda Elementi products only. -
Page 6: Packaging
PACKAGING The following parts are included with the Superbox stem: 1) Headset compression screw M6x30 mm 2) Aero top cap 3) Stem body 4) Faceplate, 1 set 5) Stem screw M5x16mm, 6 pcs 6) D-clip 7) S-DCR cover 8) Cover screw M3x20mm... - Page 7 Fig. 3.1: Superbox exploded view...
-
Page 8: Cable Routings
CAbLES ROuTING Superbox stem is compatible for both external and full internal cable routing. 4.1 TRADITIONAL bICYCLE FRAME In case of assembling on traditional frameset (external cable routing), Superbox stem can be installed without the S-DCR cover (7). 4.2 bICYCLE FRAME DCR COMPATIbLE DCR compatible frames require a 1”-1/8 fork steerer and 1.5”... - Page 9 4.2.2 uPPER bEARING SEAT FOR DCR SYSTEM The upper bearing seat must respect the following specifications: Fig. 4.2: upper bearing seat size 4.2.3 MOuNTING In the case of mounting on the DCR frame, the cables will enter the nylon S-DCR cover (7) positioned under the stem, passing through the shims, the 56 mm cover (12) and black compression ring for DCR 45 °...
-
Page 10: Bicycle Frame With D-Shape Fork
4.3 bICYCLE FRAME WITH D-SHAPE FORK This type of frames features a 1”-1/8 upper bearing and a fork steerer with a non- circular section (commonly called D-shape). In this confi guration, you must use the 46mm topcover (11). In the case of mounting on a frame with a D-shape fork, there are two mounting options: 4.3.1 Assembly with S-DCR cover (7) and a traditional handlebar, in this confi guration the cables will enter under the stem in plastic cover (7) -
Page 11: Assembly Instructions
5. ASSEMbLY INSTRuCTIONS Since specific tools and experience are necessary for proper installation, it is recommended that the product be installed by an official Deda Elementi dealer or a qualified bicycle technician. Fig. 5.1: Superbox assembly schema with S-DCR cover system... - Page 12 If necessary, cut the fork steerer according to the manufacturer’s instructions and make sure there are no notches and / or irregularities on the cut surface. It is recommended that this operation be done by an official Deda Elementi dealer or a qualified bicycle technician.
- Page 13 7 Make sure the stem is aligned in the correct position. Tighten the two rear stem screws alternately, turning ½ turn at a time, until a minimum torque of 4Nm is reached. If the stem is not tight enough, increase the torque up to a maximum of 5 Nm.
-
Page 14: Indications On Periodic Checks
These can cause serious accidents that can lead to serious injuries or death. Deda Elementi stems and faceplates are made of hard aluminium alloy. If are damaged as a result of impact or bicycle fall, they cannot be repaired. -
Page 15: Cleaning And Care
Do not expose the stem to direct sunlight and high temperatures. CONTACTS For any question or technical information, please contact Deda Elementi by visiting the website at www.dedaelementi.com and through the email address info@dedaelementi.com. Dedaindustrie S.r.l. reserves the right to modify without notice the content of this manual always guaranteeing the availability of the updated versions on the website download area. - Page 16 www.dedaelementi.com Dedaindustrie S.r.l. Via Leonardo Da Vinci 19/21/23 26010 Campagnola Cremasca (CR) - Italia Phone +39 0373 750 129 Fax +39 0373 751 105 www.dedaos.com.tw Deda OS No.8, Lane 150-30, Sec. 3, Xitun Rd., Xitun Dist. Taichung City 407, Taiwan (R.O.C.) tel: +886-4-24623436 fax: +886-4-24623430 #ridededa...
