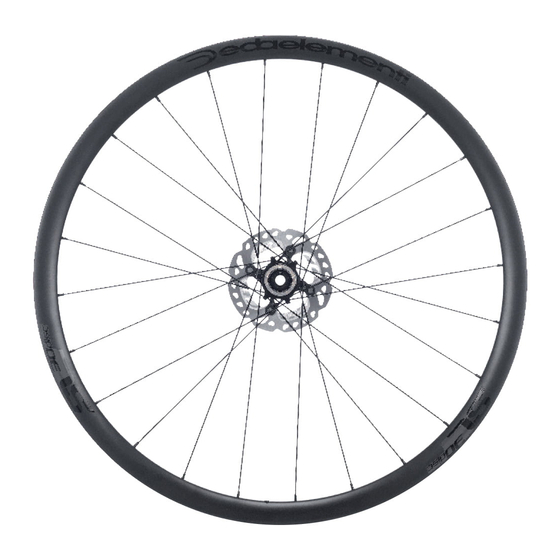

- Page 1 MANUALE D’USO E MANUTENZIONE USER’S MANUAL Ver. 0 – Ottobre / October 2017 ©Deda Elementi SL30DB CarBonio CopertonCino DiSC Brake Carbon ClinCher DisC brake...
- Page 2 Deda elementi dealer or a qualified bicycle technician.
-
Page 3: Table Of Contents
inDiCe INFORMAZIONI GENERALI DI SICUREZZA _____________________________________ pag. 4 GARANZIA ________________________________________________________________ pag. 5 PACKAGING ______________________________________________________________ pag. 6 SPECIFICHE TECNICHE _____________________________________________________ pag. 7 PNEUMATICI _______________________________________________________________ pag. 8 CASSETTA PIGNONI ________________________________________________________ pag. 9 ROTORE FRENO A DISCO ___________________________________________________ pag. 10 MONTAGGIO RUOTE SUL TELAIO ____________________________________________ pag. 11 PULIZIA, MANUTENZIONE E SOSTITUZIONE DI PARTI ___________________________ pag. -
Page 4: General Safety Information
If any doubts or problems occurr, discontinue riding the wheels and have them inspected by an official Deda Elementi dealer or a qualified bicycle technician. These wheels have been designed and intended to be used on normal paved surfaces. -
Page 5: Warranty
Warranty policy. The Warranty is valid for the purchase of an origianl Deda Elementi product only. 2.1 LiMitS oF WarrantY In case of sale or product cession, the Warranty will be considered valid for a two yeras period only from the original purchace. -
Page 6: Packaging
The Wheels package you have just purchased contains the following items: The wheels Wheels bag User’s Manual Rim Tapes teCHniCaL SpeCiFiCationS: Wheels Model SL30DB 10v shimano / sram (with 1.80mm spacer) Cassetta Compatibility 11v shimano *10-11v Campagnolo size 622x19C Width 25.0mm... -
Page 7: Tires
Deda SL30DB wheels are designed to use clincher tires with inner tubes or Tubeless tire. The Tubeless conversion kit is not included into the wheels box. Check tires and inner tubes dimensions according to the rim technical specifications included in this user’s manual. -
Page 8: Sprockets Installation
WarninG: Tire installation requires a specific experience of the product, in case of doubts please contact an official Deda Elementi dealer or a qualified bicycle technician. During tire installation don’t use tools or tire lever that can fold, damage or fragilize the rim edge. -
Page 9: Disc Brake Rotor
WarninG: Disc brake rotor installation requires a specific experience of the product. In case of doubts please contact an official Deda Elementi dealer or a qualified bicycle technician. An incorrect rotor installation can cause serious accidents and injury for the user. -
Page 10: Fitting The Wheels On The Frame
Elementi dealer or a qualified bicycle technician. An incorrect wheels installation can cause serious accidents and injury for the user. Deda SL30DB wheels are pre-assembled from the factory with Thru-axle locking system (Front 12x100, Rear 12x142). The Thru-axles are not included into the wheels package. - Page 11 8.1 ConVerSion enD CapS kit MoUntinG Front hub Remove the end-caps installed on the front hub (standard TA 12x100 mm) and replace them with required ones (QR 100 mm, TA 15 mm). Install the end-cap with the smaller flange diameter (1) on the disc brake rotor side and the one with the bigger flange diameter (2) on the opposite side.
- Page 12 8.2 HUBS Spare partS SpeCiFiCationS...
-
Page 13: Cleaning, Maintenance And Replacement Parts
Deda Elementi dealer. For any service or replacement parts, only orginal Deda Elementi spare parts have to be used in order to guarantee the product quality and the warranty maintaining. - Page 14 www.dedaelementi.com Deda Elementi S.r.l. Via Leonardo Da Vinci, 21/23 26010 Campagnola Cremasca (CR) - Italia Tel. +39 0373 750 129 Fax +39 0373 751 105 www.dedaos.com.tw Deda OS No.8, Lane 150-30, Sec. 3, Xitun Rd., Xitun Dist. Taichung City 407, Taiwan (R.O.C.) tel: +886-4-24623436 fax: +886-4-24623430 Deda Elementi USA dedausa@dedaelementi.com #ridededa...
