Assembly Instructions - Deda Elementi SUPERBOX User Manual

Since specific tools and experience are necessary for proper installation, it is
recommended that the product be installed by an official Deda Elementi dealer or
a qualified bicycle technician.

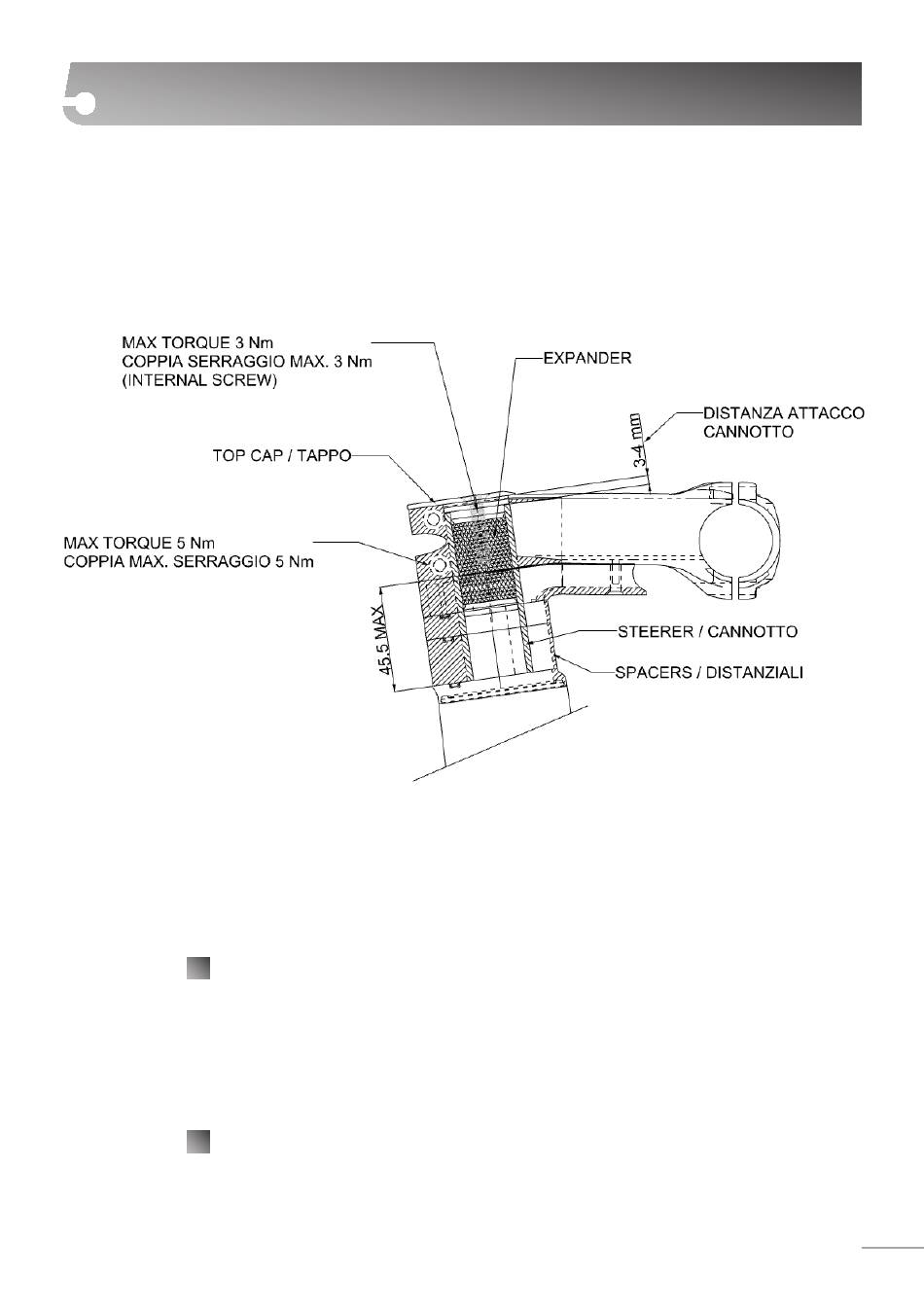

Fig. 5.1: Superbox assembly schema with S-DCR cover system
The assembly procedure is as follows:
1 Replace the original headset topcover mounted on the bicycle with the one
included with the Superbox. Two covers are supplied, one compatible with 46mm
head tubes (11) and one 56mm for DCR system (12). Use the black compression
ring for DCR 45°x45° bearing or the grey version for 36°x45° bearing (13). The
black compression ring is included with the DCR headset.
2 In case of internal cable routing, first insert the cables inside the cover and
secure it with the M3x20mm screw included.
