CAbLES ROuTING
Superbox stem is compatible for both external and full internal cable routing.

4.1 TRADITIONAL bICYCLE FRAME

In case of assembling on traditional frameset (external cable routing), Superbox stem
can be installed without the S-DCR cover (7).

4.2 bICYCLE FRAME DCR COMPATIbLE

DCR compatible frames require a 1"-1/8 fork steerer and 1.5" headset upper
bearing. In this configuration, you must use the 56mm top cover (12) and the
black compression ring of DCR original bearing 45°x45° or the grey version for
36°x45° bearing type (13).
In order to get the complete internal cables routing, the bicycle frame and the
fork have to be compatible. Following features are the compulsory technical
requirement. Discover more about the DCR compatibility with your frame on the
website www.dedaelementi.com
4.2.1 FORK
Deda DCR system requires an entry hole for the front brake cable located at the
fork steerer, this allow the cable routing up to disc brake caliper.

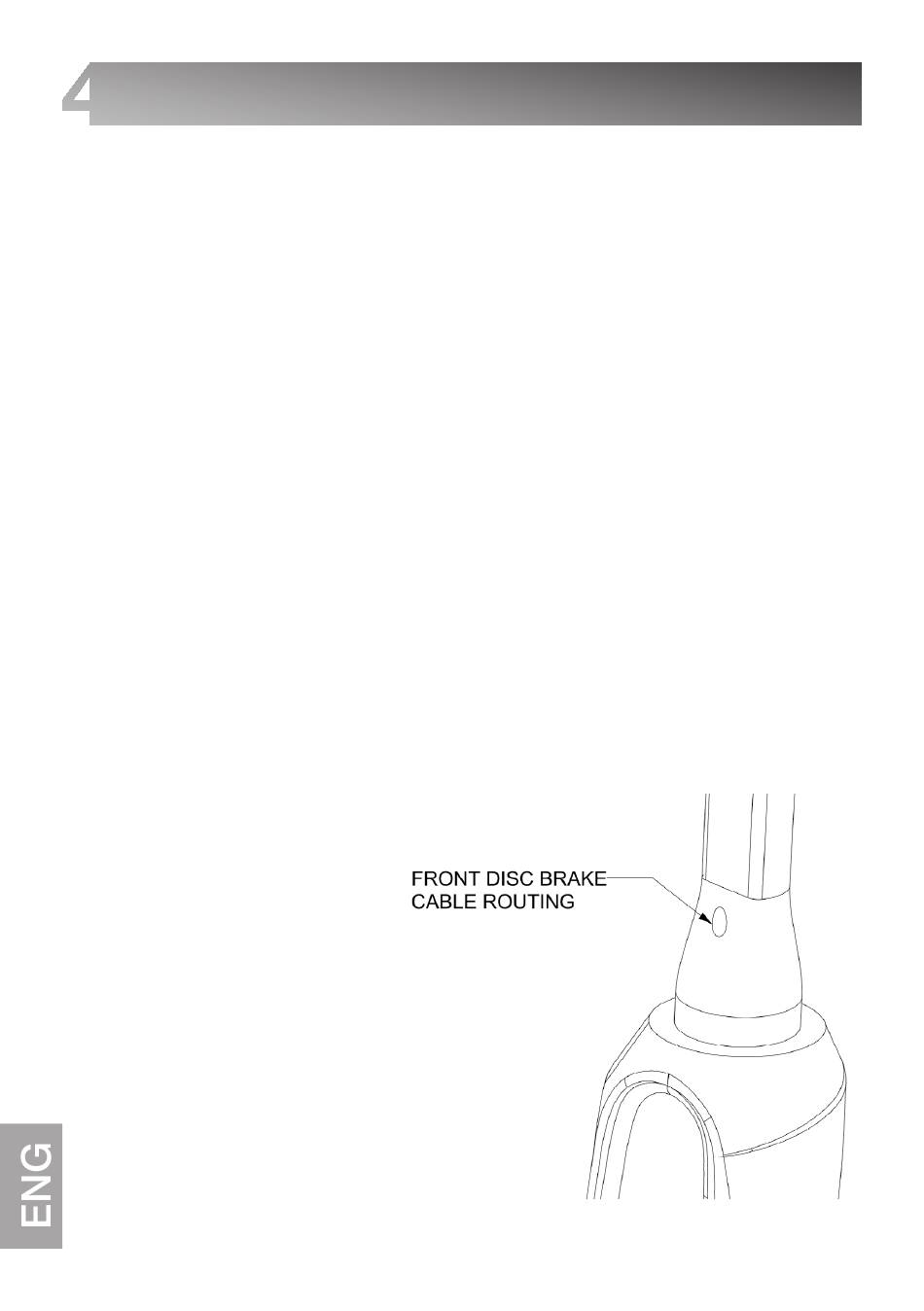

Fig. 4.1: front cable housing cable
