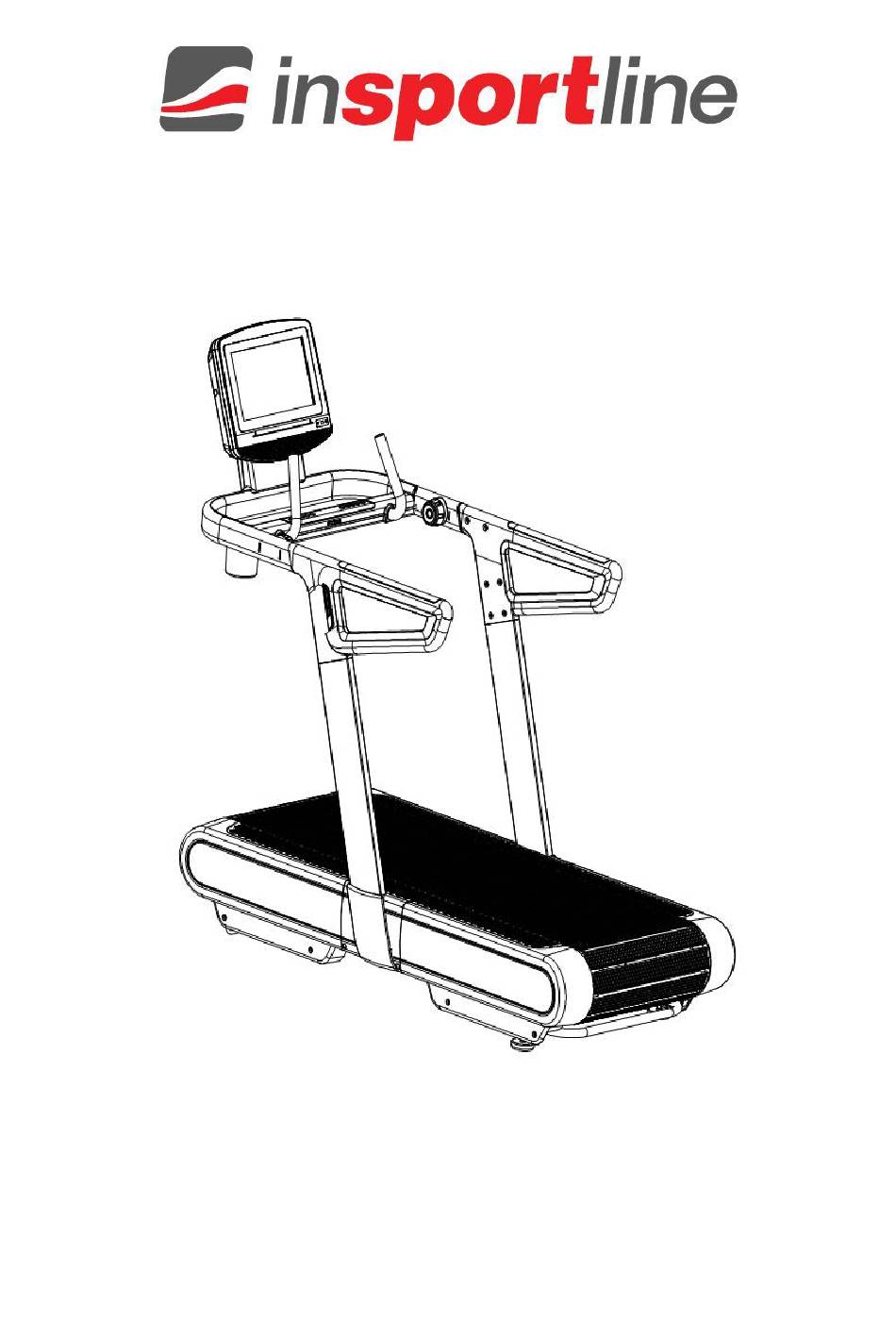

- Page 1 USER MANUAL – EN IN 20166 Treadmill inSPORTline Galdigar...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ........................3 DIAGRAM ..............................5 PARTS LIST ............................6 PRODUCT DESCRIPTION ........................7 PACKAGE ............................... 8 ASSEMBLY ............................. 9 STEP 1 ..............................9 STEP 2 ............................... 10 STEP 3 ............................... 10 STEP 4 ............................... 11 STEP 5 ............................... 11 STEP 6 ............................... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS • Read the manual carefully and keep it for future reference. • Always clip the safety key to your clothes or belt before starting exercising. • Move naturally, forward. Do not look on your feet. Only for one person can use the product on the same time. - Page 4 • Max. user weight: 150 kg • Category: SB (according to EN 957) suitable for professional and commercial use • Dimensions: After assembly 1960x876x1640 mm running belt 1600x550 mm SAFETY WARNING: Do not use heart rate sensors in the handle at speeds above 14 km / h. WARNING! The heart rate monitoring system may not be accurate.
-
Page 5: Diagram
DIAGRAM... -
Page 6: Parts List
PARTS LIST Name Name Incline frame Feet pad Base Hexagonal bolt Incline motor adjust part Hexagonal bolt Guide wheel set Hexagonal bolt Left upright Hexagonal bolt Right upright Hexagonal bolt Console holder Wheel bearing (OMA-01-12-066) Outside cover (OMA-01-13-468) – Handlebar set Incline side frame Drive pipe (OMA-01-08-095) Handlebar pipe... -
Page 7: Product Description
Rear roller Button Belt wheel Round shaft sleeve Synchronous wheel Bolt M5x15 Universal bearing Screw ST3x10 Washer Power cord Power cord socket (Sanwei S-03- Bearing Rubber coated aluminum chain Fuse (with wire) Belt to fix running belt Switch Console Power cord Communication wire Power cord Communication wire... -
Page 8: Package
PACKAGE Base Console frame Upright Handles Covers Console Front handles Console holder Manual Hexagonal bolt M8x15 – 8 pcs Spanner Allen key Spanner Hexagonal bolt M8x20 – 4 pcs Screwdriver... -
Page 9: Assembly
Bolt M10x35 – 6 pcs Screw ST4x16 – 14 pcs Hexagonal bolt M8x30 – 4 pcs Hexagonal bolt M8x40x20 – 6 pcs Hexagonal bolt M8x20 – 2 pcs ASSEMBLY Pull the base out of the package and place it on a flat and firm surface. STEP 1 Connect the main frame and right post communication cables, then slide the right post into the clamping ring and secure with 3x M10x35 bolts. -
Page 10: Step 2
STEP 2 Attach the console frame to the right and left post using 4x M8x20 bolts and 2x M8x20 bolts from the bottom. STEP 3 Attach the front handles to the bracket frame using 4x M8x30 bolts... -
Page 11: Step 4
STEP 4 Attach the console bracket with 4x M8x35x20 bolts. Then attach the bottom of the console bracket with 4x ST4x16 screws STEP 5 Attach the console to the bracket with 2 x M8x35x20 screws. -
Page 12: Step 6
STEP 6 Attach the console back cover with 6x STx16 screws. Then fasten the side post covers with 4x ST4x16 screws. CONSOLE... -
Page 13: Display
DISPLAY Display displays 6 functions: • distance • calories • time • incline • pulse • speed – By default it displays speed, in resistance mode it displays resistance value, in vibration mode it displays vibration value. Setting up default Max. -
Page 14: Faults And Error Codes
FAULTS AND ERROR CODES Possible cause Possible solution Not plugged in or turned on Plug in or start up Safety key not correctly inserted Reinsert the safety key system Check the inputs and outputs of the Short circuit working terminal and communication cables Converter plugged Check or replace the converter... -
Page 15: General Training Recommendations
GENERAL TRAINING RECOMMENDATIONS Be careful when starting your exercise program, exercise should not take too long, and you should not exercise more than once every two days. Extend the duration of exercise each week. Do not set unreachable goals. In addition to running on the treadmill, do other sports activities, such as swimming, dancing or cycling. -
Page 16: Safe Exercise
handrails. Set the speed between 1-6 - 3.2 km / h, stand straight, look ahead and try to stand on the belt several times with one leg. Then put it on both feet to practice. Once you get used to the belt, you can slowly increase the speed to 3-5 km / h and keep it for 10 minutes. -
Page 17: Exercise Instructions
• Runners should choose a speed of 8 km / h or higher. EXERCISE INSTRUCTIONS THE WARM UP PHASE This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury. It is advisable to do a few stretching exercises as shown below. -
Page 18: Storage
STORAGE Keep the treadmill in a clean and dry environment. Make sure the power switch is turned off and the treadmill is not plugged into the power socket. IMPORTANT NOTICE • This treadmill comes with standard safety regulations and is suitable for professional and commercial use. - Page 19 Warranty Conditions Warranty Period The Seller provides the Buyer a 24 months Warranty for Goods Quality, unless otherwise specified in the Certificate of Warranty, Invoice, Bill of Delivery or other documents related to the Goods. The legal warranty period provided to the Consumer is not affected. By the Warranty for Goods Quality, the Seller guarantees that the delivered Goods shall be, for a certain period of time, suitable for regular or contracted use, and that the Goods shall maintain its regular or contracted features.
- Page 20 26847264 VAT ID: CZ26847264 Phone: +420 556 300 970 E-mail: eshop@insportline.cz reklamace@insportline.cz servis@insportline.cz Web: www.inSPORTline.cz inSPORTline s.r.o. Headquaters, warranty & service center: Električná 6471, Trenčín 911 01, SK CRN: 36311723 VAT ID: SK2020177082 Phone: +421(0)326 526 701 E-mail: objednavky@insportline.sk reklamacie@insportline.sk servis@insportline.sk...
