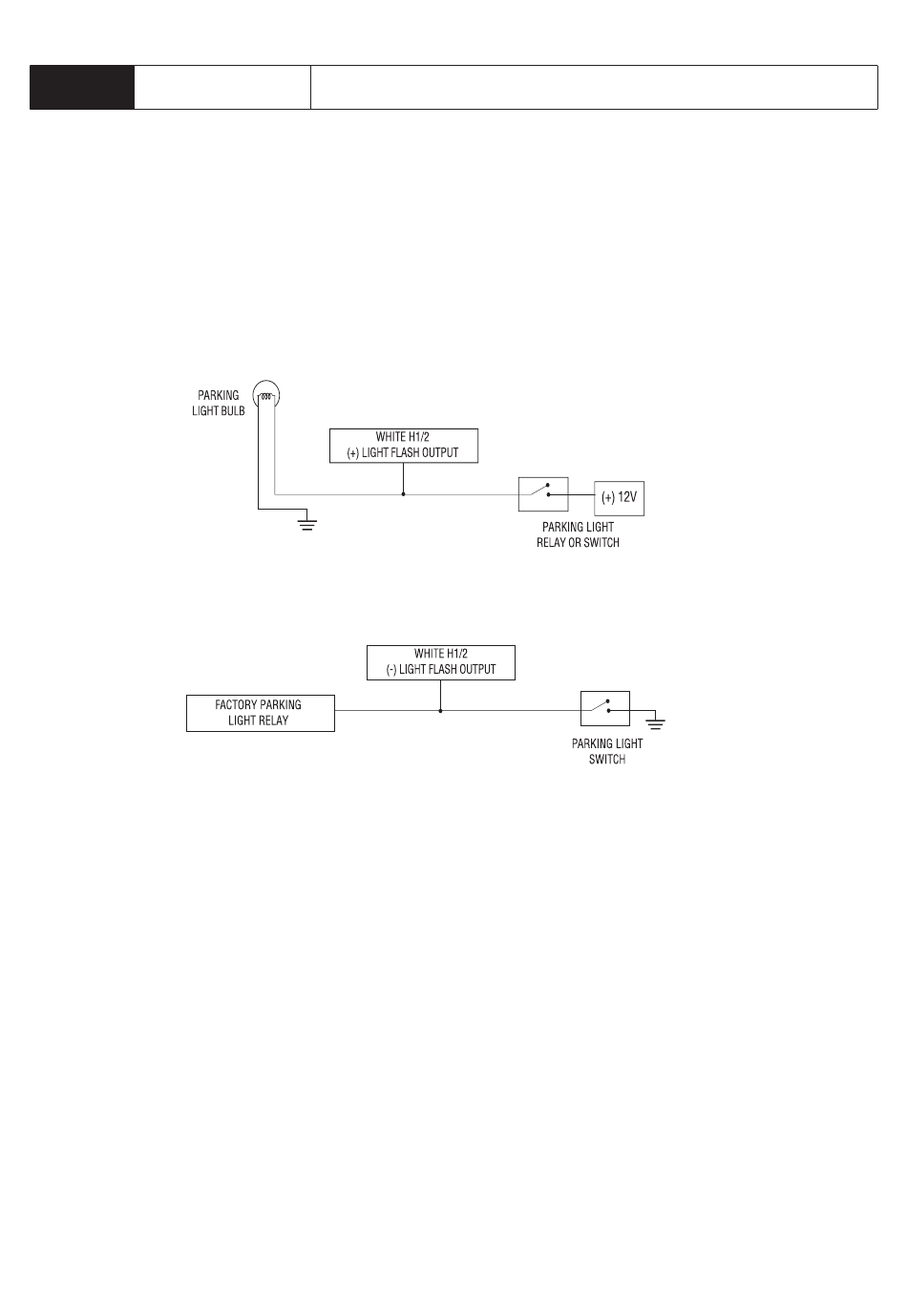

H1/11
WHITE
LIGHT FLASH OUTPUT
As shipped, this wire should be connected to the (+) parking light wire.
It supplys a (+) 10A output. If the light flash polarity fuse jumper inside
the unit is moved to the opposite position (see Internal Jumpers), this
wire supplies (-) 10A output. This is suitable for driving (-) parking light
wires.
23
