Directed Electronics 29402 User Manual

VATS / PASSLOCK / TRANSPONDER
Universal Alarm Bypass Module
Model #s 20402 & 29402
This module lets you bypass virtually any type of factory passive
anti-theft system on the market today to remotely start your
vehicle without permanently disabling the vehicle's anti-theft
system.
In 1983, General Motors came out with their first Vehicle Anti-
Theft System known as VATS which uses a resistor pellet in
the key. Since that time, other more sophisticated theft systems
have followed. Most of these theft systems are still resistance
based, and another uses a "Transponder" which is a tiny pellet
or chip embeded within the the head of the ignition key.
Contents:
1 Universal Alarm Bypass Module
1 8 position wire harness
1 Transponder loop w/connector
2 Cable Ties
1 Instruction booklet
2 Double-stick foam tape

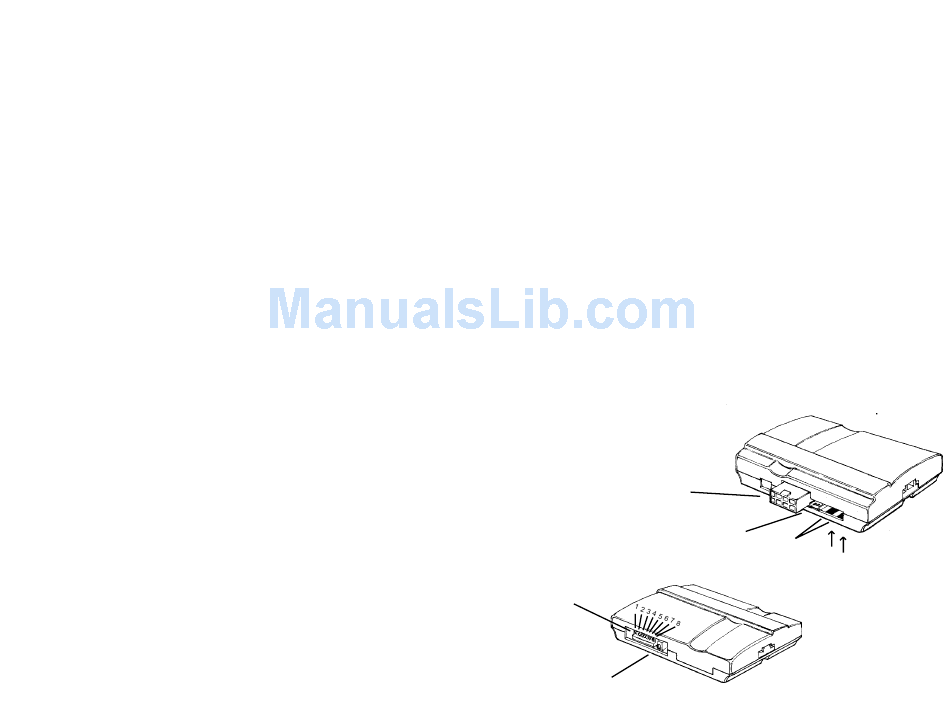

FRONT VIEW
8 position harness
connector
Transponder Loop
connector
BACK VIEW
8 position
dip-switch
Up is OFF
Down is ON
Variable Resistor
© 2005 Directed Electronics, Inc.
2 Resistor
Measuring Pads
1
v2.1
