Directed Electronics Automate AM5 Installation Manual page 20

H1/3 BROWN
This output can be used if an optional siren is installed. Connect this
to the RED wire of the siren. Connect the BLACK wire of the siren to
(-) chassis gound, preferably at the same point as the control module's
BLACK ground wire.
H1/4 YELLOW
Connect this wire to the (+)12V ignition wire. This wire must show
(+)12V with the key in the run position and during cranking. Take care
to insure that this wire cannot be shorted to the vehicle chassis at any
point.
H1/5 BLACK

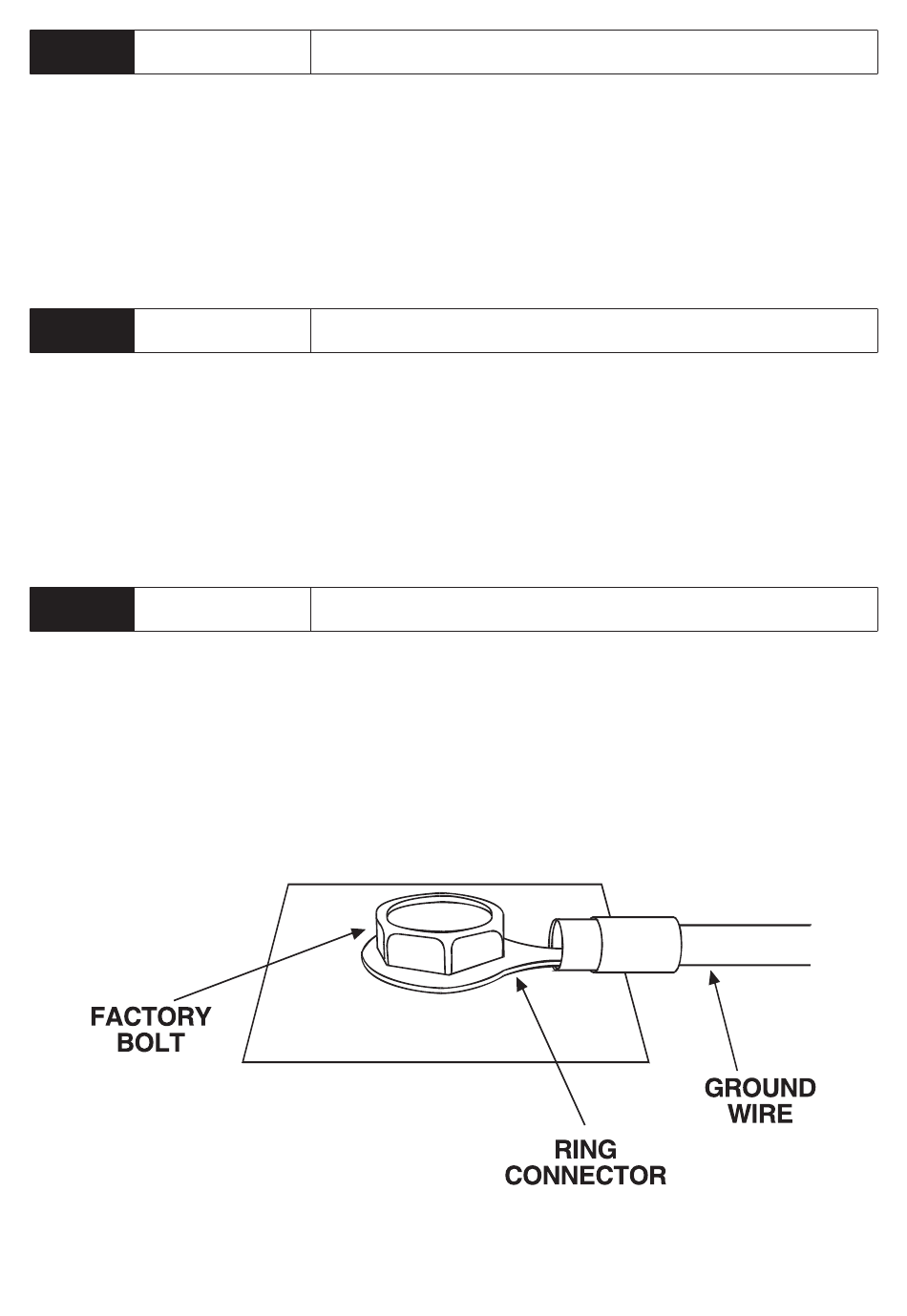

We recommend that you do not use a factory ground. Ground all
your components including the optional siren, to the same point in the
vehicle, (preferably the kick panel). Scrape away any paint and use a
factory bolt or make your own ground with a self-tapping screw and
a star washer.
20
(+) SIREN OUTPUT
(+) IGNITION INPUT
(-) CHASSIS GROUND CONNECTION
