2. Installation

1). Turn off the power
To prevent electrical shock and/or equipment damage, disconnect
electrical power at the main fuse or circuit breaker before installation and
maintenance. Be aware that even if the circuit breaker is off, some voltage
may remain in the wires — before proceeding with the installation, be
sure no voltage is present in the wiring. Take extra precautions to avoid
accidentally turning the device on during installation.

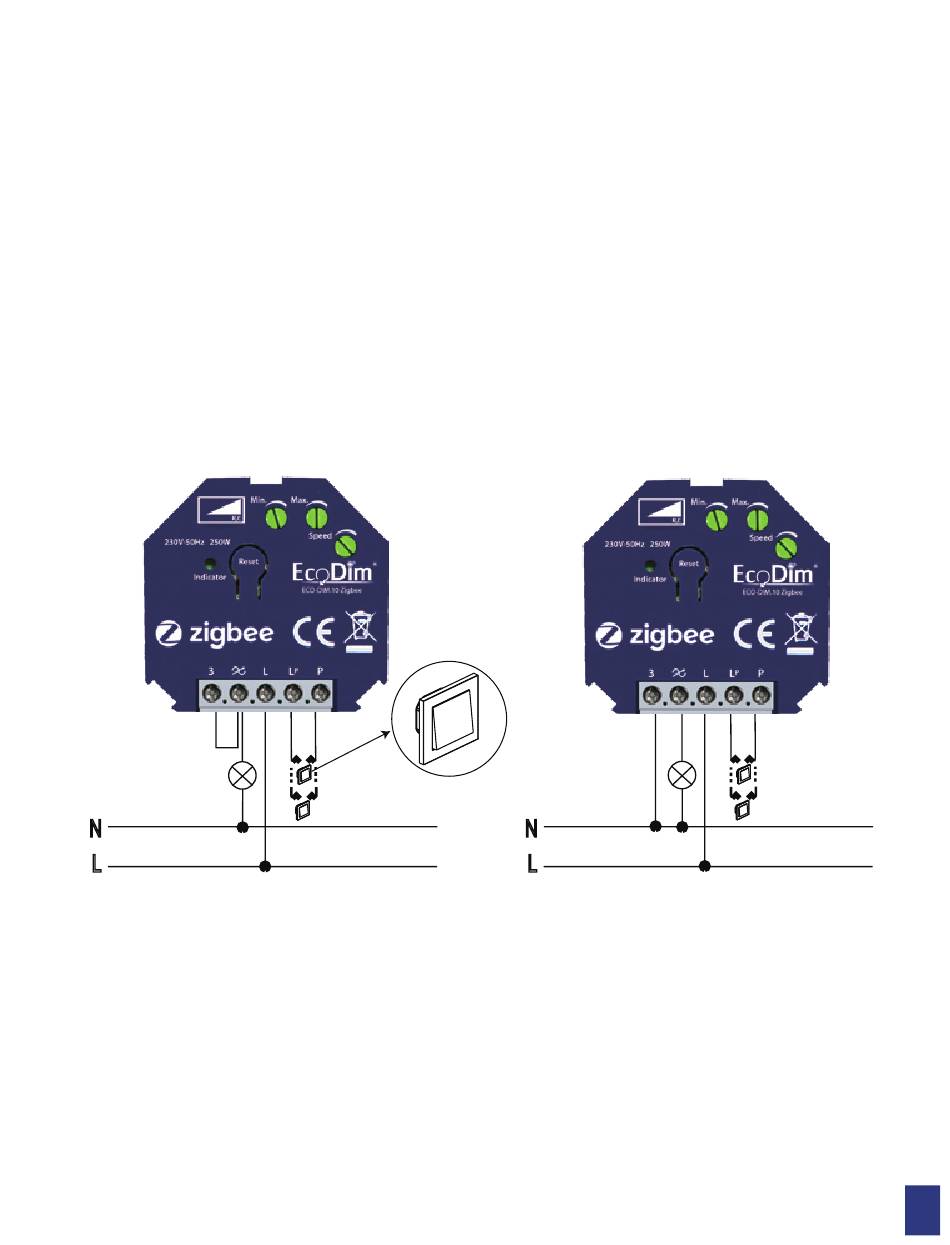

2). Connect the device exactly according to the diagrams shown below
The dimmer is available for 2 and 3 wired connection. Please note in case
of a 2 wired connection port 3 and Load must be connected to make
stable dimming possible.
Trailing Edge
N
L
3). Turn the power back
3. Min./Max./Dimming Speed adjustment
For the SMART dimmer to work optimally or suitable for your preference,
you can adjust the brightness at the Min. and Max. level and also the
dimming speed with the MIN./MAX./Dimming Speed adjustment.
Not suitable for 2way switch, must
be push/ Momentary switch
N
L
Trailing Edge
3
