Installation - EcoDim ECO-DIM.07 Zigbee PRO Manual

Suitable cover plate brands
• Berker by Hager
• Busch-Jaeger
• GIRA
• JUNG
*NIKO plate is not included. Available separately on the EcoDim website via ED-10072

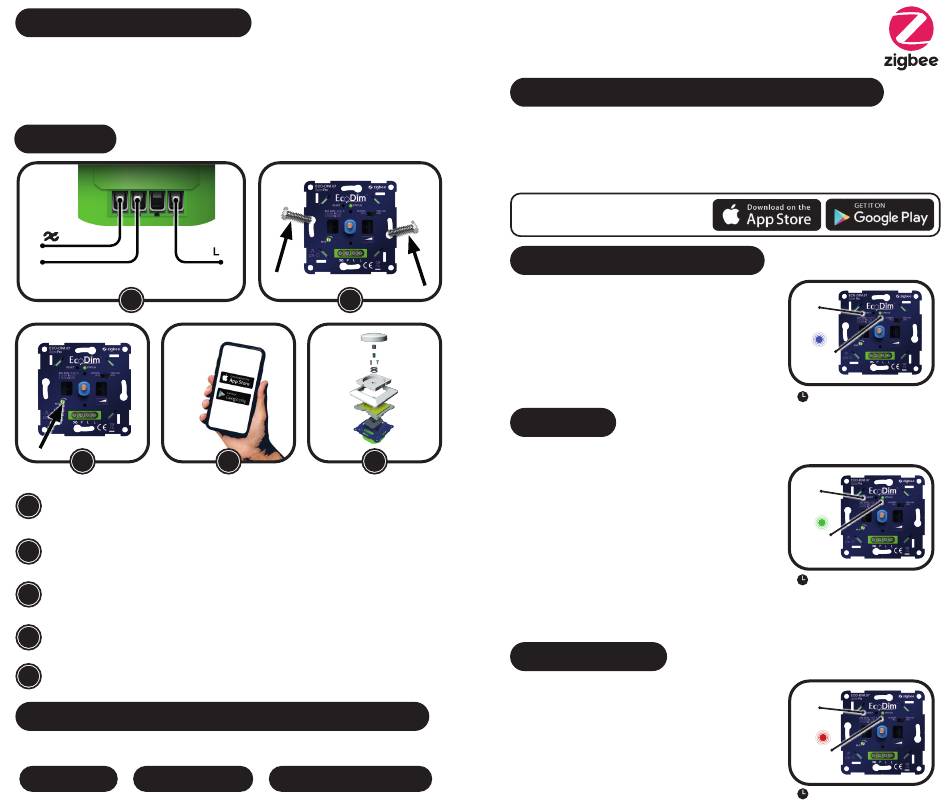

Installation

P
1
3
Step 1
1
Always ensure that the electricity is switched off during installation. Then connect the
power wires as shown in the 'Wiring diagram' .
Step 2
2
Now install the dimmer in the flush-mounting box using the screws.
Step 3
3
Switch the electricity on again. Turn on the connected lamps using the dimmer shaft.
Now set MIN as indicated under 'Setting min. light level'.
4
Step 4
Now link the dimmer to your SMART home system.
Step 5
5
Replace the cover frame, central plate and dimmer button on the dimmer.
Reduction of connection capacity by PowerFactor
When calculating the LED connection power of the dimmer, take into account the PowerFactor
of the dimmable LED lighting. See the global calculation below for this.
NUMBER OF LED LIGHT
=
NOMINAL POWER
SOURCES
Example: 10 lamps * (5W per lamp / 0.8 PowerFactor) = 62.5 Watt
• Kopp
• Merten by Schneider
• Niko*
• PEHA
2
4 5
NOMINAL POWER LED /
*
POWERFACTOR.
ECO-DIM.07 Zigbee
Suitable for Zigbee home automation systems
• Google Assistant/ needed)
Home (Zigbee hub • Philips Hue
needed) • HOMEY
• Amazon Alexa • FutureHome
(Zigbee hub • Trust
DOWNLOAD THE APP AT:
Put dimmer into pairing mode
Remove the device from the previous Zigbee network if it
has already been added, otherwise pairing will fail.
Press the reset button twice.
The indicator light starts flashing blue and stays on for 10
seconds when pairing is successful. Timeout 15 minutes.
TouchLink
Reset the dimmer if it is already included in a Zigbee
network.
Press the reset button 4 times, the indicator starts
flashing green and stays on for 10 seconds.
Bring the remote within 10 cm of the smart dimmer and
set the remote to TouchLink.The LED will flash several
times on successful connection
Note: If the dimmer and touchlink device are not connected to
a hub, a maximum of 1 touchlink device can be linked. If you
want to link multiple touchlink devices, you will always need a
Zigbee hub.
Reset the dimmer
Press and hold the reset button for 5 seconds, the
indicator will remain red for 10 seconds.
Please note that all configuration parameters will be reset
after the device is reset or removed from the network.
PRO
• Aduro Smart
• Aeotec Smart-
Things
• WINK
• IKEA Dirigera
Press for 5
seconds
LED turns
blue(10 sec)
15 min. timeout
Press reset
4 times
LED
flashes
and burns
green.
3 min. timeout
Press for 5
seconds
LED
turns red
(10 sec)
15 min. timeout
