EcoDim Eco-Dim.07 Z-Wave User Manual

Smart led dimmer z-wave 0-200w
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

P
L
USER MANUAL

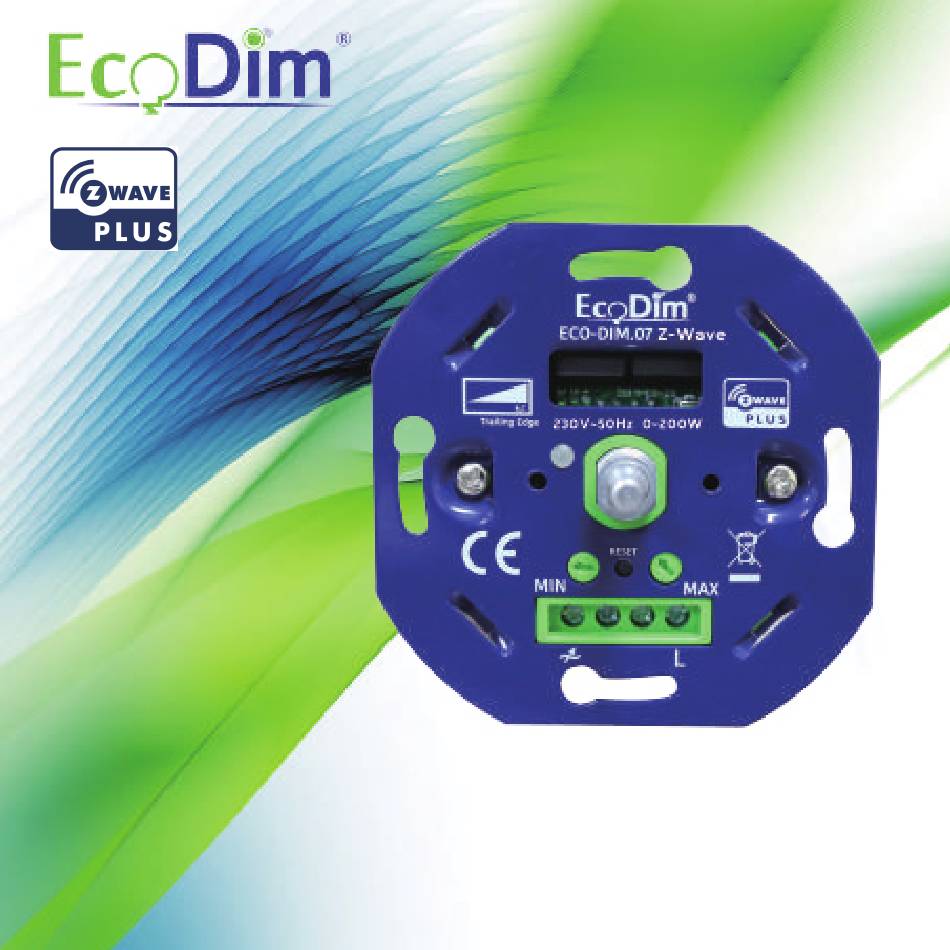

Smart LED dimmer Z-Wave 0-200W
Eco-Dim.07 Z-Wave

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eco-Dim.07 Z-Wave and is the answer not in the manual?

Questions and answers

Related Manuals for EcoDim Eco-Dim.07 Z-Wave

Summary of Contents for EcoDim Eco-Dim.07 Z-Wave

  • Page 1 USER MANUAL Smart LED dimmer Z-Wave 0-200W Eco-Dim.07 Z-Wave...
  • Page 2 Please Read this manual Carefully before installation. Important! • It is dangerous if people without proper training work on an electrical installation! • There may be a dangerous voltage at the output of the dimmer! • When working on the wiring always switch off the mains voltage. Failure to observe this warning may result in death or seriour injury! •...
  • Page 3 ENGLISH Manual..............DUTCH Manual................ GERMANY Manual..............INDEX(Z-Wave Info & Commands)..........
  • Page 4 Smart Dimmer Switch 200W LED Item NO. Eco-Dim.07 Z-Wave LED Indicator Reset Button Indicates resets and To set the dimmer to when the dimmer is factory settings or to in pairing mode pair mode. Min. Setting Max. Setting To set the minimum To set the maximum light level.

  • Page 5: Specifications

    1. Specifications Input voltage 220-240 Vac, 50Hz Power (load) 0-200W LED 10-300W Halogen light bulbs Suitable for Led-, halogen-, light bulbs Type dimmer R,C Phase cut Working temperature 35 °C Operation Push / turn button Dimensions 70.6x70.6x33mm Weight 49,98g Suitable brands of cover material: √...

  • Page 6: Installation

    2. Installation Step 1: Remove the knob and the cover plate. Step 2: Always make sure that the electricity is switched off during installation. Then connect the wires as indicated in the ‘Connection diagram’. Step 3: Now install the dimmer in the mounting box. Use screws or tighten the screws of the mounting clamps.

  • Page 7: Connection Diagram

    4. Connection diagram 1) One Way Connection 2) Multiway master& slave wiring connection...

  • Page 8: Operation

    5. Operation 1) SmartStart Inclusion Smart Start enabled products can be added into a Z-Wave network by scanning the Z-Wave QR Code present on the product with a controller providing SmartStart inclusion. No further action is required and the Smart Start product will be added automatically within 10 minutes of being switched on in the network vicinity.

  • Page 9: Factory Reset

    3) Remove from a Z-Wave Network Method 1. From your Z-Wave hub interface, choose to delete or reset the device as instructed. Method 2. Remove from the Device, see below instructions. Step 1. Press the reset button for 3 times. Step 2.
  • Page 10 Smart Dimmer Schakelaar 200W LED Item No. Eco.Dim-07 Z-Wave LED lampje/indicator Resetknop Het led lampje zal in een Hiermee kunt u de bepaalde kleur beginnen te dimmer naar knipperen wanneer deze in fabrieksinstellingen reset- of koppelstand zit. of in paringmodus zetten. MIN-instelling MAX afstelling Hiermee kunt u het...
  • Page 11 1.Specificaties Input voltage 220-240 Vac, 50Hz Input voltage 0-200W LED 10-300W Halogeen- gloeilampen Geschikte lading Led-,halogeen-, gloeilampen Type dimmer R,C Fase afsnijding Werkbare temperatuur 35 °C Bediening Druk/draai knop Afmeting 70.6x70.6x33mm Gewicht 49,98g Geschikte merken afdekmateriaal: √ Berker by Hager √...
  • Page 12 2. Installatie Stap 1: Verwijder de dimmerknop en het afdekraam. Stap 2: Zorg er altijd voor dat de elektriciteit tijdens de installatie is uitgeschakeld. Sluit vervolgens de stroomdraden aan zoals aangegeven in het ‘Aansluitschema’. Stap 3: Installeer de dimmer nu in de inbouwdoos. Dit kan met schroeven of door de schroeven van de inbouwklemmen aan te draaien.
  • Page 13 4. Aansluitschema 1) 2-draads aansluiting 2) Wisselschakeling/Multischakeling met meerdere pulse schakelaars Let op, wisselschakeling is alleen mogelijk met pulse schakelaars, niet met meerdere dimmers.
  • Page 14 5. Koppelen domotica/apps 1) SmartStart-opname Smart Start-producten kunnen worden toegevoegd aan een Z-Wave-netwerk door de Z-Wave QR-code op het product te scannen met een controller die SmartStart-opname biedt. Er is geen verdere actie vereist en het Smart Start-product wordt automatisch toegevoegd binnen 10 minuten na inschakeling in de netwerkomgeving.
  • Page 15 3) Verwijderen uit een Z-Wave-netwerk Methode 1. Kies vanuit uw Z-Wave hubinterface om het apparaat te verwijderen of opnieuw in te stellen volgens de instructies. Methode 2. Verwijder van het apparaat, zie onderstaande instructies. Stap 2. Het indicatielampje begint Stap 1. Druk 3 keer op de paars te knipperen en resetknop.
  • Page 16 Smart Dimmer Schakelaar 200W LED Item No. Eco.Dim-07 Z-Wave LED-Anzeige Reset-Taste Leuchtet auf, wenn der Reset Zum Zurücksetzen des Dimmer durchgeführt auf die Werkseinstellungen wurde und wenn sich der Dimmer im oder zum Aktivieren des Pairing-Modus befindet. Pairing-Modus. MIN-Einstellung MAX-Einstellung Zum Einstellen der minimalen Helligkeit Zum Einstellen der maximalen...

  • Page 17: Technische Daten

    1.Technische Daten Eingangsspannung 220-240 Vac, 50Hz Anschlussleistung 0-200 W LED 10-300 W Halogen-Glühlampen Anschlussleistung Led-, Halogen-Glühlampen, Glühlampen Dimmertyp R,C Phasenabschnitt Betriebstemperatur 35 °C Bedienung Druck-/Drehknopf Abmessungen 70.6x70.6x33mm Gewicht 49,98g Geeignete Abdeckungsmarken: √ Berker by Hager √ Busch-Jaeger √ Gira √ JUNG √...
  • Page 18 2. Installation 1. Schritt: Den Knopf und die Abdeckung entfernen. 2. Schritt: : Bei der Installation stets darauf achten, dass die Stromzufuhr ausgeschaltet ist. Dann die Stromkabel, wie im „Schaltplan“ angegeben, anschließen. 3. Schritt: Nun den Dimmer in die Unterputzdose einbauen. Dies kann mit Schrauben oder durch Anziehen der Schrauben der Montageklemmen erfolgen.
  • Page 19 4. Verbindingsdiagram 1) Einwegverbindung 2) Multiway Master & Slave Verkabelung...

  • Page 20: Bedienung

    5. Bedienung 1) SmartStart-Aufnahme Smart Start-Produkte können einem Z-Wave-Netzwerk hinzugefügt werden, indem der Z-Wave-QR-Code auf dem Produkt mit einem Controller gescannt wird, der SmartStart-Aufzeichnung bietet. Es sind keine weiteren Maßnahmen erforderlich, und das Smart Start-Produkt wird innerhalb von 10 Minuten nach dem Einschalten in der Netzwerkumgebung automatisch hinzugefügt.
  • Page 21 3) Aus einem Z-Wave-Netzwerk entfernen Methode 1. Wählen Sie in Ihrer Z-Wave-Hub-Schnittstelle, ob Sie das Gerät gemäß den Anweisungen entfernen oder zurücksetzen möchten. Methode 2. Entfernen Sie aus dem Gerät, siehe Anweisungen unten. Schritt 2. Die Anzeigelampe beginnt lila Schritt 1. Drücken Sie zu blinken und leuchtet 10 dreimal die Reset-Taste.

  • Page 22: Technical Data

    INDEX- Z-Wave Information 1. Technical Data Z-Wave Frequency Z-Wave Frequency Wireless Range up to 100m outside, on average up to 40m inside buildings 6.81.03 Explorer Frame Support Device Type Light Dimmer Switch Generic Device Class GENERIC_TYPE_SWITCH_MULTILEVEL Specific Device Class SPECIFIC_TYPE_POWER_SWITCH_MULTILEVEL Role Type Always On Slave(AOS) Rounting...
  • Page 23 3. Note for special commands 1) Z-Wave plus Info Command Report Parameter Value Z-Wave Plus Version Role Type ZWAVEPLUS_INFO_REPORT_ROLE_TYPE_SLAVE_ALWAYS_ON Node Type ZWAVEPLUS_INFO_REPORT_NODE_TYPE_ZWAVEPLUS_NODE Installer Icon Type ICON_TYPE_GENERIC_LIGHT_DIMMER_SWITCH User Icon Type ICON_TYPE_GENERIC_LIGHT_DIMMER_SWITCH 2) Association Group Info Command Association is different to Inclusion. The Inclusion function of a device “includes” the device into a network, allowing it to communicate with other network devices.
  • Page 24 Group Association Description Name Nodes Groups Switch Multilevel: 53 77 69 74 63 68 20 4D 75 6C 74 69 6C 65 76 65 6C 1. “Anti-Clockwise the knob” Sends Switch Switch Multilevel Set(to decrease the brightness and Group 3 Multilevel keep associated devices in sync with this device) to associated devices...
  • Page 25 d) Association Group Command List Command Report Command List Support Team No. COMMAND_CLASS_SWITCH_MULTI- SWITCH_MULTILEVEL_REPORT (0x03) LEVEL (0x26) Group 1 COMMAND_CLASS_DEVICE_RE- DEVICE_RESET_LOCALLY_NOTIFICA- SET_LOCALLY(0x5A) TION(0x01) Group 2 COMMAND_CLASS_BASIC(0x20) BASIC_SET(0x01) COMMAND_CLASS_SWITCH_MULTI- SWITCH_MULTILEVEL_SET(0x01) Group 3 LEVEL(0x26) COMMAND_CLASS_SWITCH_MULTI- SWITCH_MULTILEVEL_SET(0x01) Group 4 LEVEL(0x26) 4) Basic Command Basic CC is maps to Multilevel CC Basic Set = 255 maps to Multilevel Switch Set = 255 Basic Set = 0 maps to Multilevel Switch Set = 0...
  • Page 26 Setting of 0 means that the dimmer will use parameter 1. Valid value:0-99 Setting delay time when turn off, unit is second. Valid value:0-60 You can find the full list of Z-wave commands on our website. www.ecodim.nl/down- loads-smart-dimmer...
  • Page 28 EcoDim Dr. Huber Noodtstraat 89 7001DV Doetinchem Info@ecodim.nl +31 (0)314 844691...
