Assemble Mounting Bracket

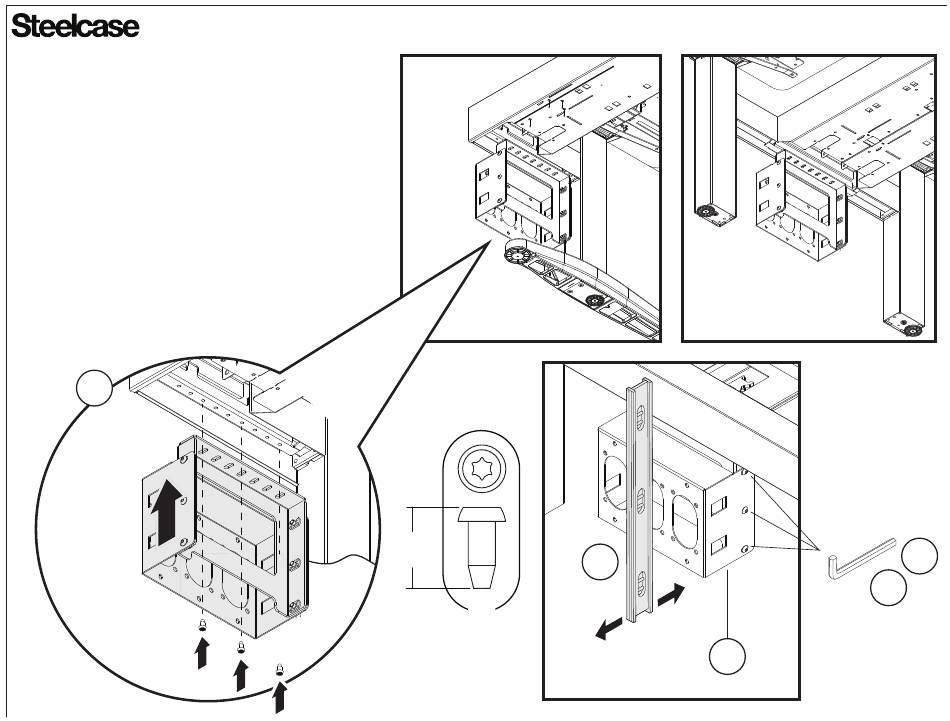

1) Using (3) M6 button head thread forming screws (provided)
attach the mounting bracket to underside of cross-tube
weldment.
TIP: Note hole positions used on single sided (see arrows),
centered on dual sided applications.
2a) Use a level to check for vertical orientation. 2b) Loosen
(6) button head screws using a 5/32" allen wrench, 2c) adjust
the interface bracket to vertical and 2d) retighten (6) button
head screws.
1
5/32"
.472"
2b
(12mm) 2a
2d
3x
2c
