Assemble Mounting Bracket - Steelcase Ology FrameOne Manual

®
Single Sided Dual Sided

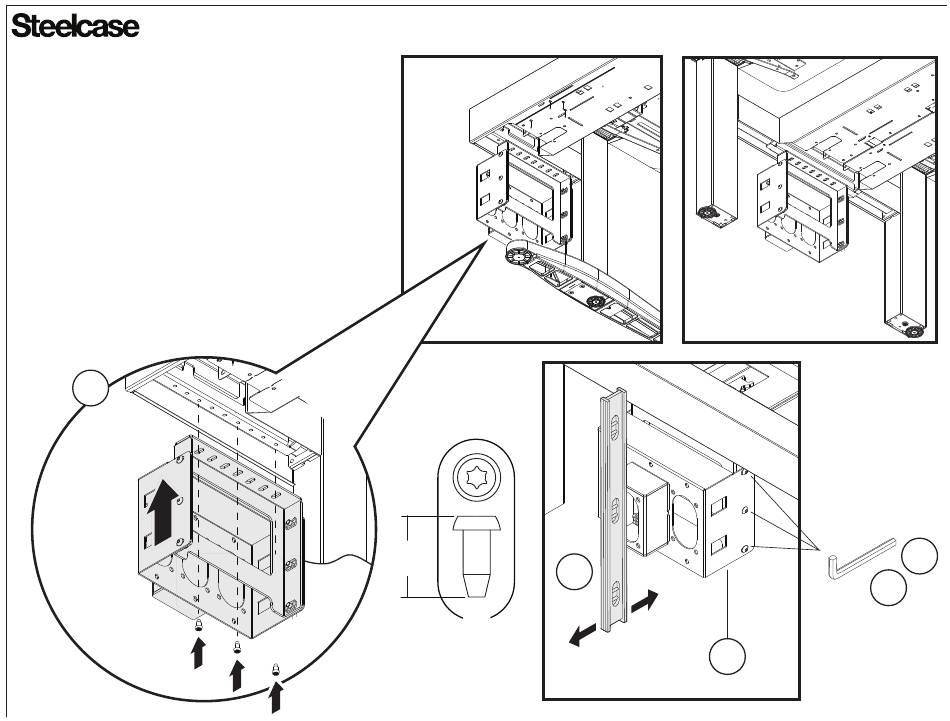

Assemble Mounting Bracket

2) Using (3) M6 button head thread forming screws (provided)
attach the mounting bracket to underside of cross-tube weldment.
TIP: Note hole positions used on single sided (see arrows),
centered on dual sided applications.
3a) Use a level to check for vertical orientation. 3b) Loosen
(6) button head screws using a 5/32" allen wrench, 3c) adjust
the interface bracket to vertical and 3d) retighten (6) button
head screws.
2
5/32"
3b
.472"
(12mm)
3a
3d
3x
3c
Page 3 of 11
1360037001 Rev A
