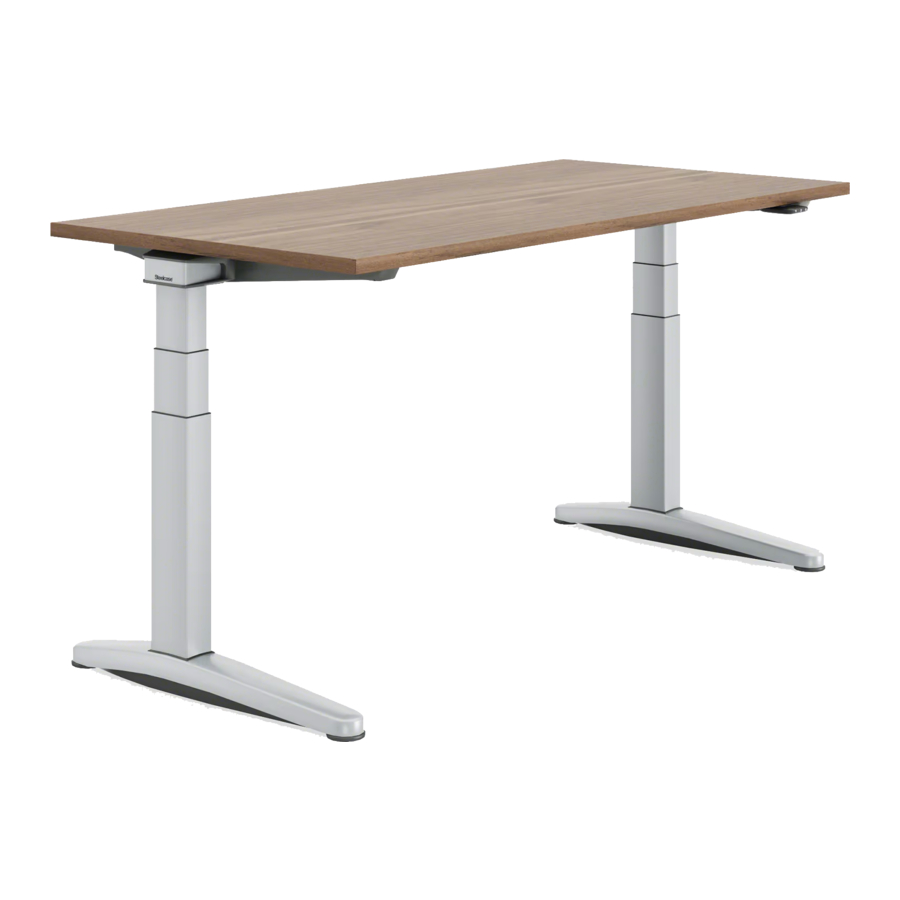

Steelcase Ology User Manual
  1. Manuals
  2. Brands
  3. Steelcase Manuals
  4. Desktop
  5. Ology
  6. User manual
Steelcase Ology User Manual

Steelcase Ology User Manual

Hide thumbs Also See for Ology:
Table of Contents

Advertisement

Quick Links

See also: Manual
Ology
User Guide

Advertisement

Table of Contents
loading

Related Manuals for Steelcase Ology

Summary of Contents for Steelcase Ology

  • Page 1 Ology User Guide...
  • Page 2 WARNING Crush Hazard – Keep Clear NO CHILDREN RISK OF SERIOUS INJURY OR DEATH Raising or lowering desk can trap or crush body parts. DO NOT OPERATE THIS EQUIPMENT UNLESS PROPERLY TRAINED. Read this guide first. DO NOT ALLOW USE BY CHILDREN or people unable to understand the risks and to safely adjust desk height.

  • Page 3: Operating The Controller

    HEIGHT ADJUSTMENT CONTROLLERS Simple Touch Controller OPERATING THE CONTROLLER The desk adjusts via the simple touch controller. • Lift or press on the controller to reach the desired down desk height. • The desk will continue to move up or down until the controller is released or the minimum or maximum height is reached.
  • Page 4 HEIGHT ADJUSTMENT CONTROLLERS Active Touch Controller OPERATING THE CONTROLLER The desk adjusts via the active touch controller. • Lift or press on the controller to reached the desired down desk height. The display will show the current height of the desk. •...
  • Page 5 “INCH” to “CM”. The new selection will flash until the light guide fills. ERROR CODES • In the event of a fault, the display may show an error code number and brief description. Refer to the Ology troubleshooting guide for further instruction.
  • Page 6 SWITCH DISPLAY FROM INCHES TO CENTIMETERS Press and hold the button to change the displayed height from inches to centimeters. ERROR CODES In the event of a fault, the digital-display may show an error code. Refer to the Ology troubleshooting guide for further instructions.

  • Page 7: Cable Management

    When installing equipment, either on the worksurface or below, be sure that the connecting cables are free from obstruction. Ology offers a cable riser, cable brackets or a cable basket to help manage excess cables/wires on the underside of the worksurface.
  • Page 8 • With the control box in standby mode, the desk can lose power without affecting the synchronization of the lifting columns. However, if the control box is still active and not in standby mode, a power loss will require that the lifting columns be re-synchronized.

  • Page 9: Product Specification

    Product Specification Range of Adjustment 22.6" – 48.7" (574 mm – 1,237 mm) Glide Adjustment ½" (14 mm) 1" (25 mm) optional Distributed Weight Capacity Base supports a maximum distributed weight load of: Tip: When calculating lifting capacity, subtract the weight of the 2-leg: 314 lbs (142.4 kg)* worksurface, understructure and 3-leg: 471 lbs (213.6 kg)*...
  • Page 10 Pour télécharger ce document en français, visitez www.steelcase.com/ology/userguide/fr 日本語でこの文書をダウンロードするには、 www.steelcase.com/ology/userguide/ja を訪問 한국어로이 문서를 다운로드하려면, www.steelcase.com/ology/userguide/ko 를 방문 Para baixar este documento em Português, visita www.steelcase.com/ology/userguide/pt Для загрузки этого документа на русском языке зайдите на Steelcase.com/ology/userguide/ru Para descargar este documento en español, visite www.steelcase.com/ology/userguide/es...
