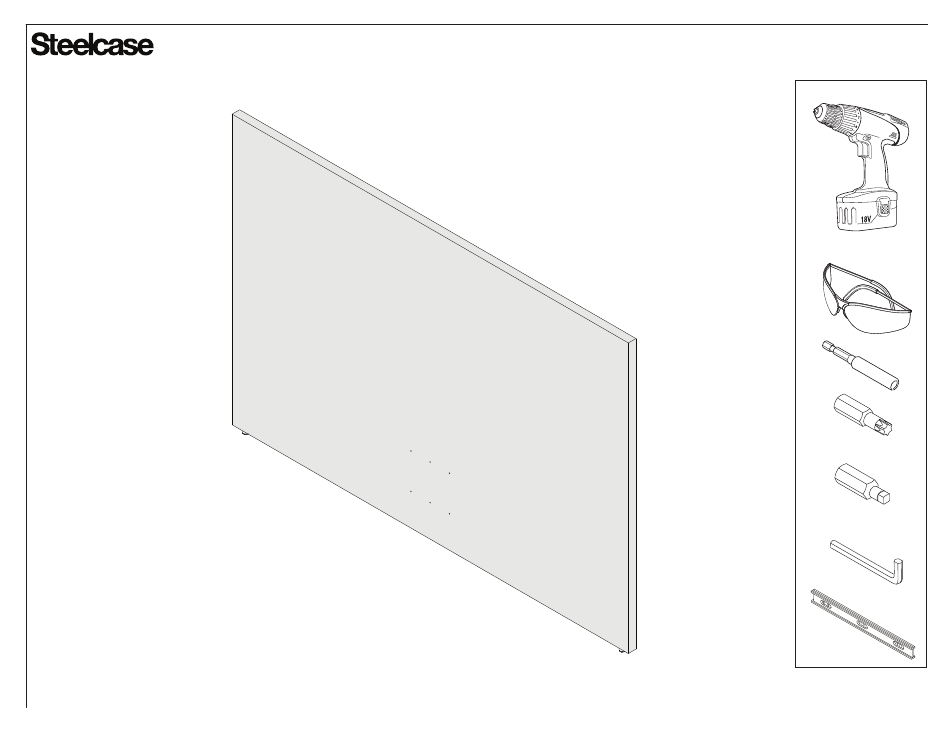

- Page 1 ® Ology Boundary Screen ™ #2 SQUARE 5/32” 888.STEELCASE (888.783.3522) www.steelcase.com © 2020 Steelcase Inc. Grand Rapids, MI 49501 Page 1 of 4 U.S.A. 1360035001 141020 Rev B...
- Page 2 ® Single Sided Dual Sided Assemble Mounting Bracket 1) Using (3) M6 button head thread forming screws (provided) attach the mounting bracket to underside of cross-tube weldment. TIP: Note hole positions used on single sided (see arrows), centered on dual sided applications. 2a) Use a level to check for vertical orientation.
- Page 3 ® CAUTION: Failure to observe this procedure could result in injury. Boundary screen is heavy & must be held in place firmly until attachment is complete to prevent the screen from falling. Attach the Boundary Screen Note: If not installed, install screen leveler glides prior to step 4. 3a) Position boundary screen against bracket and check for alignment of the pilot holes (6X), 3b) adjust the screen leveler glides, if necessary, to match the pilot hole pattern to slots in...
- Page 4 ® Install Trim 4a) Flex sides of trim cover open to overlap mounting bracket. 4b) engage “V-tabs” to slots, then 4c) push cover tight to boundary screen. Page 4 of 4 1360035001 141020 Rev B...
