Hardware Installation Instructions - Soundoff Signal bluePRINT SYNC Quick Start Manual

SYNC
®

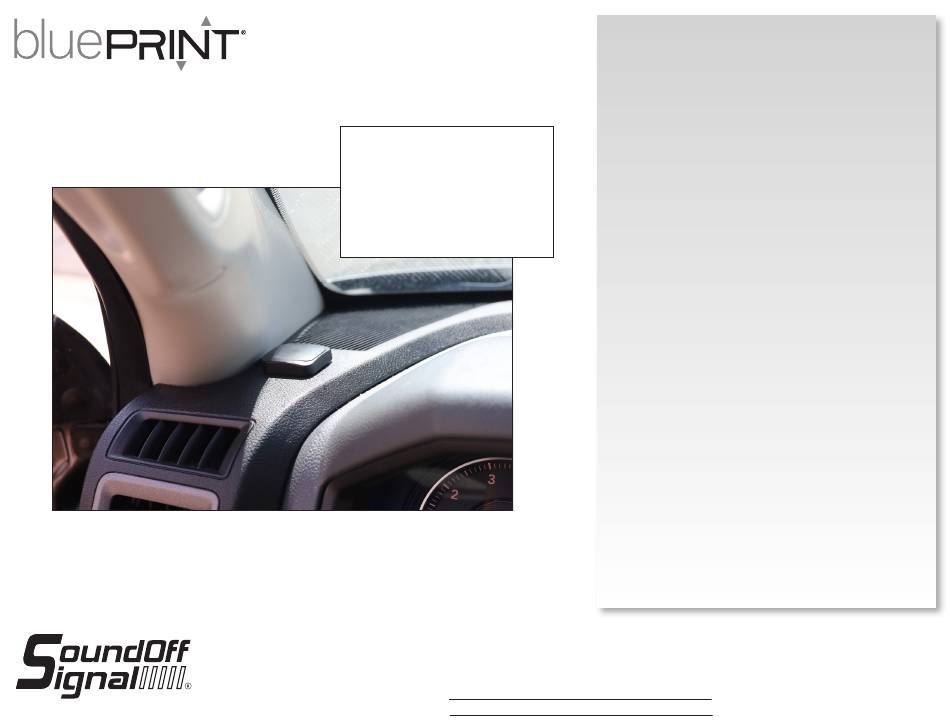

Antenna - Dashboard Installation
1.800.338.7337 / www.soundoffsignal.com
2
GPS T-SPLITTER WARNING:
GPS signal T-Splitters should not be used
with bluePRINT SYNC
an aftermarket antenna, as well as the
magnetic antenna included with bluePRINT
SYNC. The GPS antenna must be directly
connected to bluePRINT SYNC, and not
shared with other devices.
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/tech-services/returns/.
If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press #4).
Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsignal.com.

HARDWARE INSTALLATION INSTRUCTIONS:

1. Install the included GPS antenna in a location with a clear view
of the sky. Common locations for the GPS antenna are on the
exterior of the vehicle (utilizing the magnetic surface), adhered
to the windshield of the vehicle, or on top of the vehicle's
dashboard. In any scenario, make sure to locate the GPS module
away from any high heat sources. Do not secure the module
at this point; leave extra coax cable to allow for GPS final
placement.
® . This goes for
2. Remove any paneling necessary to route the antenna cable to
the installation location of the bluePRINT SYNC module. While
routing, ensure there are no sharp bends or kinks in the coax
cable. Be sure to protect the coax cable from any sharp edges,
or high heat. SoundOff Signal recommends using split loom
to protect the antenna wire further. Secure the antenna wire
whenever possible.
3. Connect the SMA antenna connector to the bluePRINT SYNC
module.
4. On the opposite side of the bluePRINT SYNC module is an
Ethernet port for interfacing with bluePRINT
supplied Ethernet cable between bluePRINT SYNC and the
Control Panel data bus. The connection can be made at the
Central Controller or at the Control Panel itself. Use the provided
Ethernet parallel splitter when necessary.
NOTICE:
Improper use or installation may void warranty coverage.
E N H A N C I N G S A F E T Y T H R O U G H I N N O VAT I O N
NOTE: It is possible to use an aftermarket GPS
or multi-band antenna with bluePRINT SYNC
However, due to variables of aftermarket
manufacturers, SoundOff Signal does not offer
®
GPS signal troubleshooting in these cases.
Additionally, using a GPS antenna with the
incorrect frequency or gain can damage the
bluePRINT SYNC module, voiding the warranty.
See Page 3 for antenna specifications.
.
®
. Connect the
®
BluePrintSYNC 0220
