Chapter 5 Quick Operation Guide

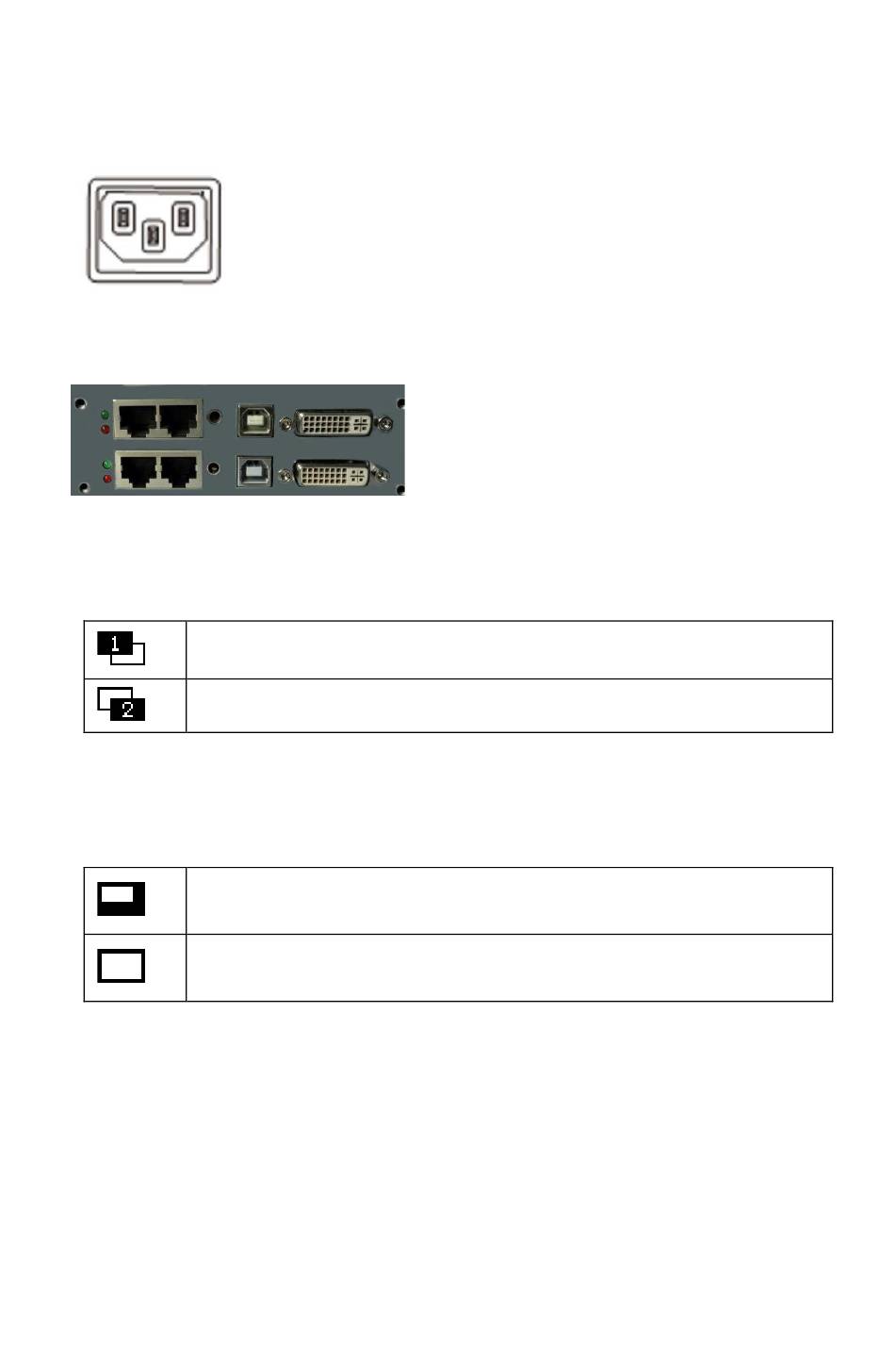

Power Connection
Sending Card Installation
PIP
PIP can be opened directly through the "PIP" button on the front panel.
PIP is opened and picture of CH1 is on the top layer.
PIP is opened and picture of CH2 is on the top layer.
The size and position of main channel and PIP can be set by the options in the
menu.
"
Part/Full Display
Part/Full is closed and the size of output image is same as the size of
window.
Part/Full is opened and the size of output image is the set
resolution.
The shortcut is able to quickly switch between zoomed-out window and full-screen
display.
USB drive Content Browsing and Selecting
Press "EXT" button to set USB drive as input source. Press the button again to
enter USB drive play operation and the indicator lights of six function buttons are
on. These six function buttons now are used as six operation buttons of playback.
Press Stop button (AUTO) to browse the content of USB drive directly on LED
VX200 User's Manual
Please make sure the power supply is well grounded
before installation;
Please use intact power lines to connect devices;
Please make sure the power switch is off;
Operating voltage of the unit: AC 100~240V.
"
PART
Two sending cars can be installed in the
unit at the same time;
Please use the copper bolts and screws
attached with the unit.
5V power cords of sending card are inside.
