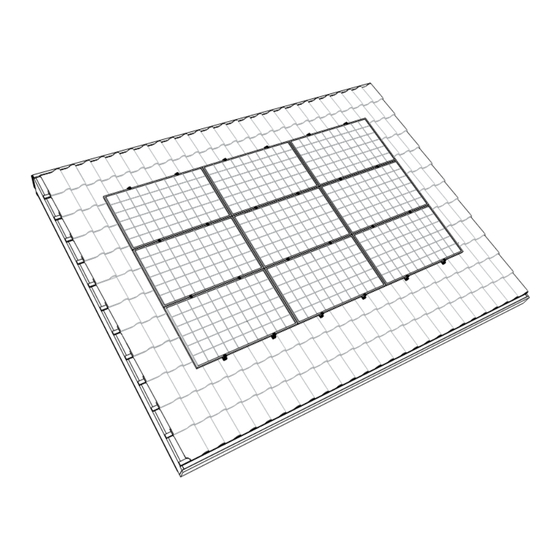

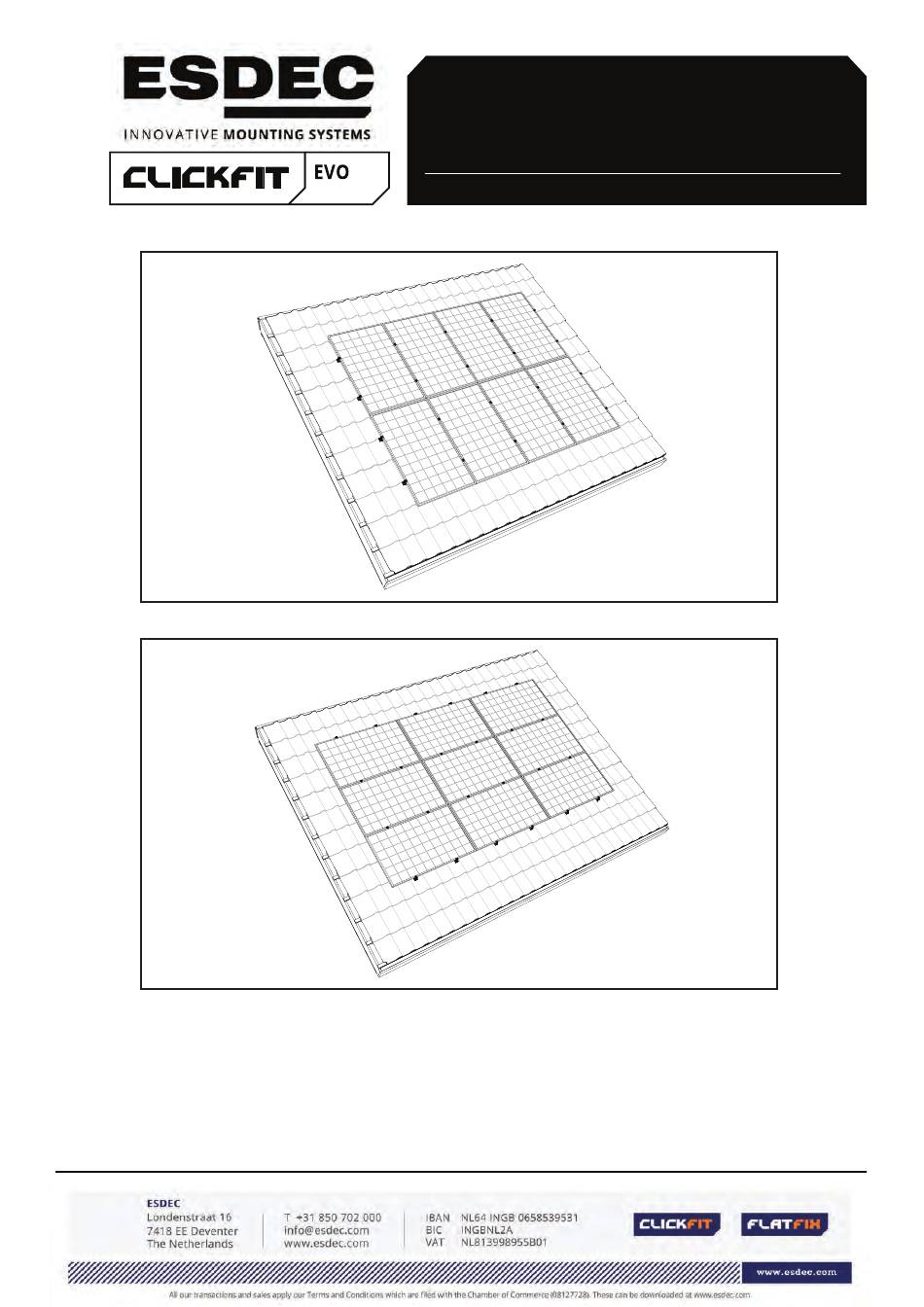

- Page 1 MANUAL MOUNTING SYSTEMS FOR SLOPING ROOFS WITH ROOF TILES portrait set-up landscape set-up ClickFit Evo mounting system for sloping roofs with roof tiles for solar panels Rev. 28.11.17 © ESDEC BV 2017...
-
Page 2: Table Of Contents
CONTENTS page 1. Introduction 2. General installation conditions 3. Product description 4. Parts overview 4.1 Exploded-view mounting system in portrait set-up 4.2 Exploded-view mounting system in landscape set-up 4.3 Universal roof hook for portrait or landscape set-up 4.4 Parts list 5. -
Page 3: Introduction
Read the manual carefully, so that you are aware of its entire contents. Follow the instructions in the manual meticulously. Always execute the actions in the correct sequence. Store the manual in a safe and dry place. If you lose the manual there is an option to request a new copy from Esdec B.V. 2. General installation conditions General Failure to comply with the regulations specified in this document can result in the lapsing of all guarantee and product liability claims. - Page 4 Removal and disassembly Remove the product in accordance with the local laws and regulations. Guarantee Guarantee in accordance with guarantee conditions and general terms and conditions of Esdec BV. These can found on the website www.esdec.com Liability The manufacturer does not accept any liability whatsoever for damage or injury caused by the failure to (strictly) comply with the safety regulations and instructions in this manual, or by inattentiveness during the installation of the product and possible accompanying accessories.
-
Page 5: Product Description
The universal roof hook is fitted with a rotatable click bracket, which enable both horizontal and vertical mounting rails to be clicked securely onto the roof hook. The ClickFit Evo mounting system for tiled roofs can be used on all tiled roofs, regardless of the type of tile. -
Page 6: Exploded-View Mounting System In Landscape Set-Up
4.2 Exploded-view mounting system in landscape set-up 4.3 Universal roof hook for portrait or landscape set-up The Universal roof hook is fitted with a rotatable click bracket, which enables the mounting rail to be clicked on both horizontally and vertically. This means that the roof hook can be used for both portrait and landscape set-ups. roof hook with clamp brack- roof hook with clamp bracket et in portrait set-up... -
Page 7: Parts List
4. ClickFit Evo Roof hook universal Article no: 100-8040 5. ClickFit Evo Roof hook filling rubber Article no: 100-8063 6. ClickFit Evo Mounting rail cable clip optimizer ready Article no: 100-8062 7. ClickFit Evo Mounting rail End cap grey Article no: 100-8060 7B.ClickFit Evo Mounting rail End cap black... -
Page 8: Installation Preparation
5. Installation preparation 5.1 Check tools and accessories Here is a list of the tools/aids required: Marker / chalk Brush Tape measure Battery-powered screwing drill Metal saw Safety gloves Safety glasses Safety helmet Safety clothes Safety shoes Dust mask Hearing protection Scaffold or stable, safe ladder 5.2 Clean the roof... -
Page 9: Determining And Measuring The Position Of The Solar Panels
5.3 Determining and measuring the position of the solar panels When determining the position of the solar panels on the sloping roof it is very important to pay attention to direction of the sunlight during the day and during the entire year. Place the panels on a roof surface that is not shaded. Shadows made by chimneys, dormer windows, trees and nearby buildings have a negative effect on the yield produced by the solar panels. -
Page 10: Installation Of Mounting System In The Portrait Set-Up
6. Installation of the mounting system in portrait set-up 6.1 Pre-mounting the mounting rail connector First determine the total required rail length for the row of solar panels. You can fasten the mounting rails to each other with mounting rail connectors. The mounting rail connector has clamps with teeth that grip the inside of the rail. -
Page 11: Fastening Universal Roof Hooks
6.2 Fastening universal roof hooks 1. Slide the tile above the roof hook upwards, under the tile above it. Hook the top adjustable part of the roof hook behind the tile lath and tile and place the roof hook in the dip of the roof tile below it. The top adjustable part of the roof hook is a minimum of 30 mm and a maximum of 65 mm. -
Page 12: Fastening The Mounting Rail
6.3 Fastening the mounting rail 1. Place the mounting rail in the mounted universal roof hooks. 2. Ensure that the end of the mounting rails protrude 90 - 250 mm in relation to the last roof hook. 3. Now click the mounting rail onto the universal roof hooks. Ensure that it clicks firmly into place. 4.
