8.4

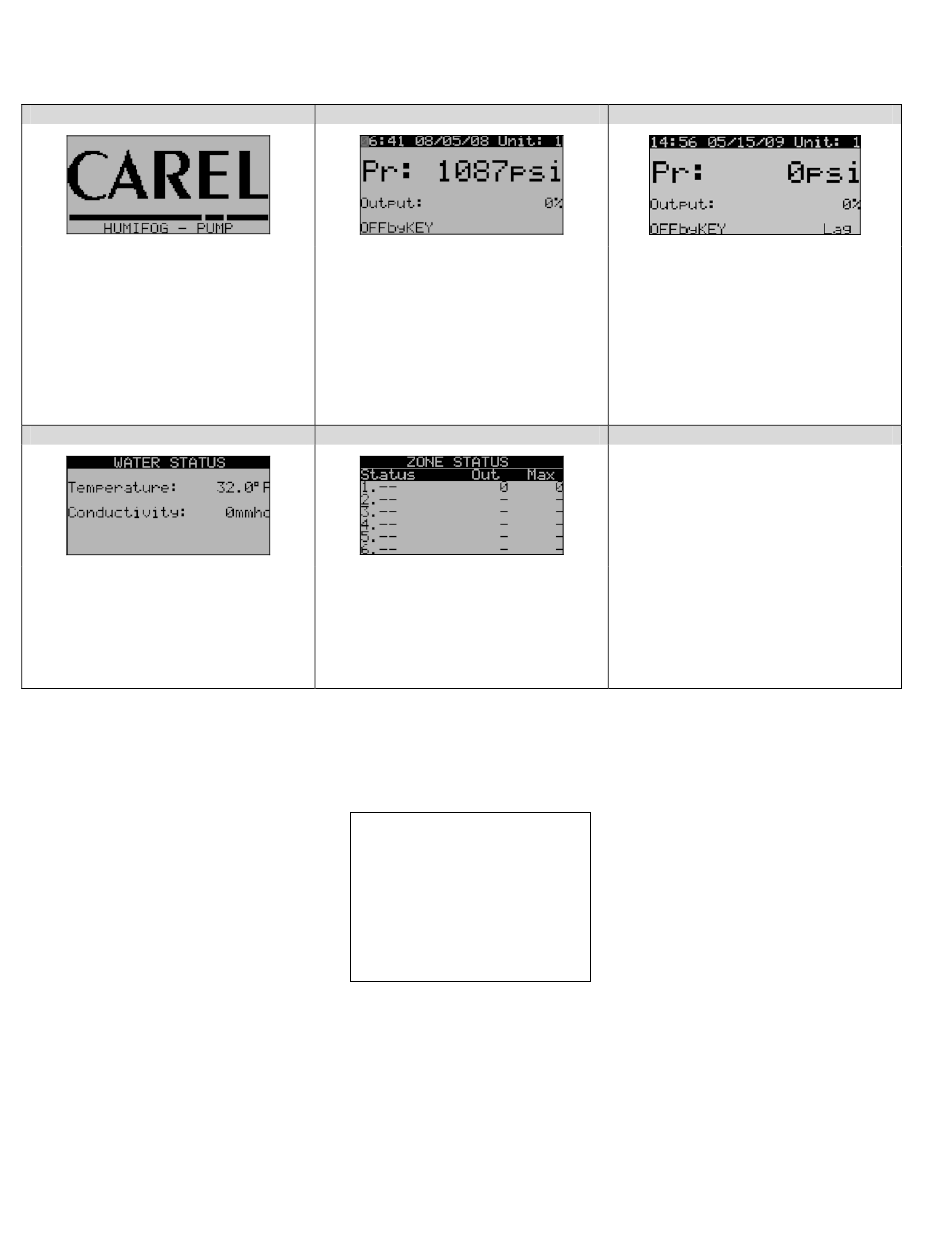

System Status
On initial power up, the controller will go through a series of self-tests and then activate the program, bringing up the following series of
screens. The visibility of some screens is dependent on the configuration of the system.
1 Initial Power Up
This is called the "Main Splash Screen", which
appears on initial power up.
3
This screen shows the temperature of the
water in the bypass loop, as well as the
conductivity of the supply water.
The bypass water temperature is read by a
NTC in the bypass loop. The conductivity is
read by a conductivity sensor in the low
pressure supply water circuit.
8.5
Menu Navigation
To access the main menu, press PRG from the main screen
UP and DOWN: navigation inside the
sub-menus, screens, and
range of values and settings;
See the diagrams below for a layout of the menu navigation screens:
2 (Main Screen)
This is the main display screen. The first line
shows the time, date, and unit identifier.
The second line displays the pressure reading
of the pumping station/system circuit.
The third line displays the operating output as
a percentage of the capacity of the system.
The forth line displays the system status as
"ON", or it will display why the system is OFF.
4
This screen shows the status of the
stages/zones connected to the pump.
The pumping station communicates by pLAN
to the zone, and the setup of the individual
zone capacities will be displayed here.
Main Menu
A.
On/Off unit
B.
Setpoint
C. Clock/Scheduler
D. Input/Output
E.
Data Logger
F.
Board Switch
G. Service
H. Manufacturer
19 of 55
2 (Duplex Main Screen)
This is the main display screen for a duplex
system.
In addition to the information provided on the
typical main screen , the lower right-hand
corner shows whether this unit is on "lead"
st
(turning on 1
because it has the lower
"Demand to Enable" setting) or on "lag"
nd
(turning on 2
at higher demands because its
"Demand to Enable" setting is higher).
Then press ENTER to make your selection
and go to that next screen.
Pressing ESC will return you to the main
display screen.
