2 – Hardware Installation
Hardware Installation
usually need to be done before installing the InfiniPath adapter.
section
2. Shut down the power supply to the system into which you'll be installing the
InfiniPath adapter.
3. Take precautions to avoid damage to the cards by grounding yourself or
touching the metal chassis to discharge static electricity before handling them.
4. Remove the cover screws and cover plate to expose the system's motherboard.
For specific instructions on how to do this, follow the hardware documentation
that came with your system.
5. Locate the HTX slot on your motherboard. Note that the HTX slot has two
separate connectors, corresponding to the connector edges of the adapter.
See
6. Determine if a blanking panel is installed in your chassis. If it is, remove it so
that the InfiniBand connector will be accessible. Refer to your system vendor
instructions for how to remove the blanking panel.
7. Remove the InfiniPath QHT7140 from the anti-static bag.
NOTE:
8. Locate the face plate on the connector edge of the card.
2-12
2.1.4.

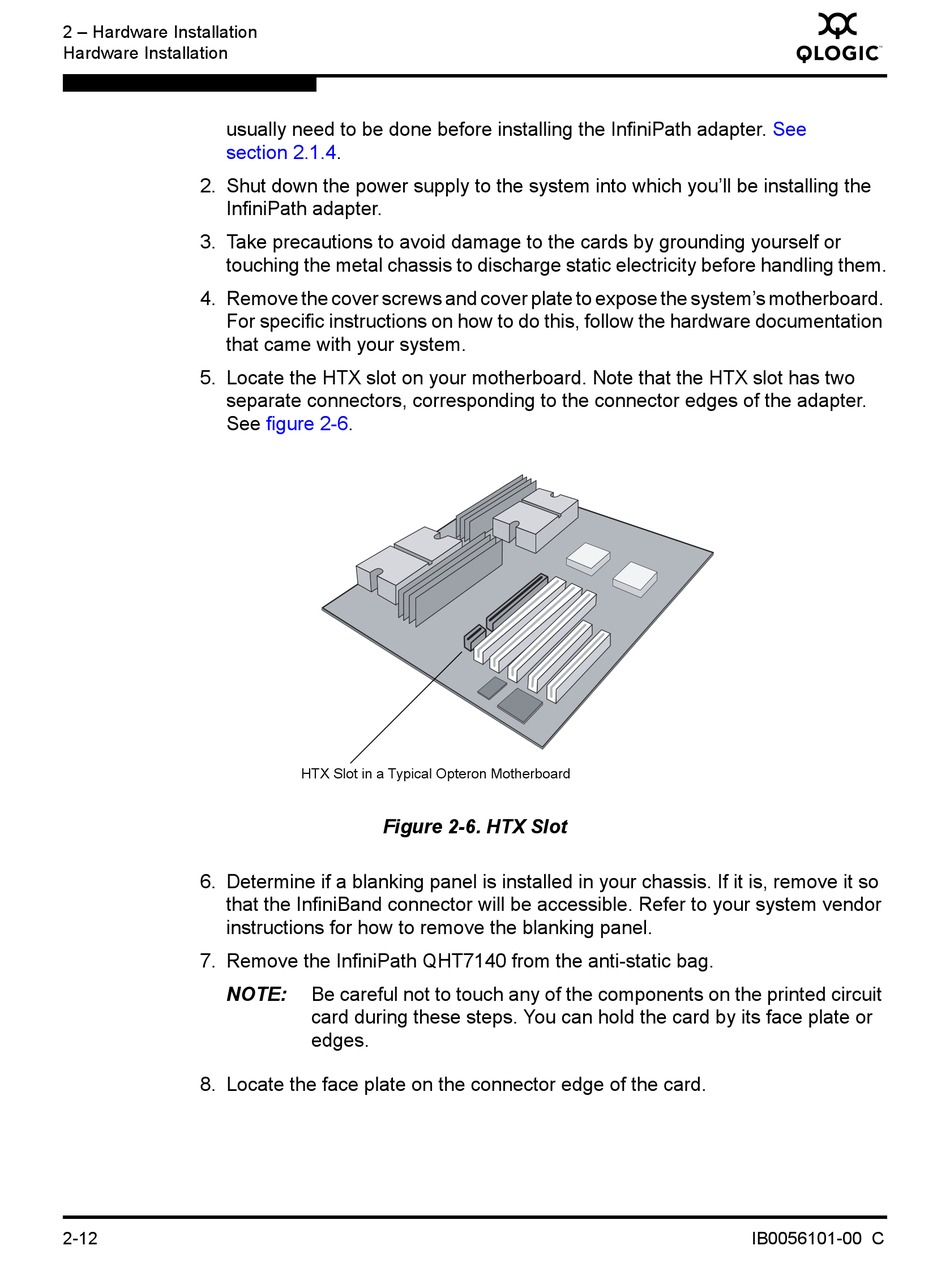

figure 2-6.
HTX Slot in a Typical Opteron Motherboard
Figure 2-6. HTX Slot
Be careful not to touch any of the components on the printed circuit
card during these steps. You can hold the card by its face plate or
edges.
Q
See
IB0056101-00 C
