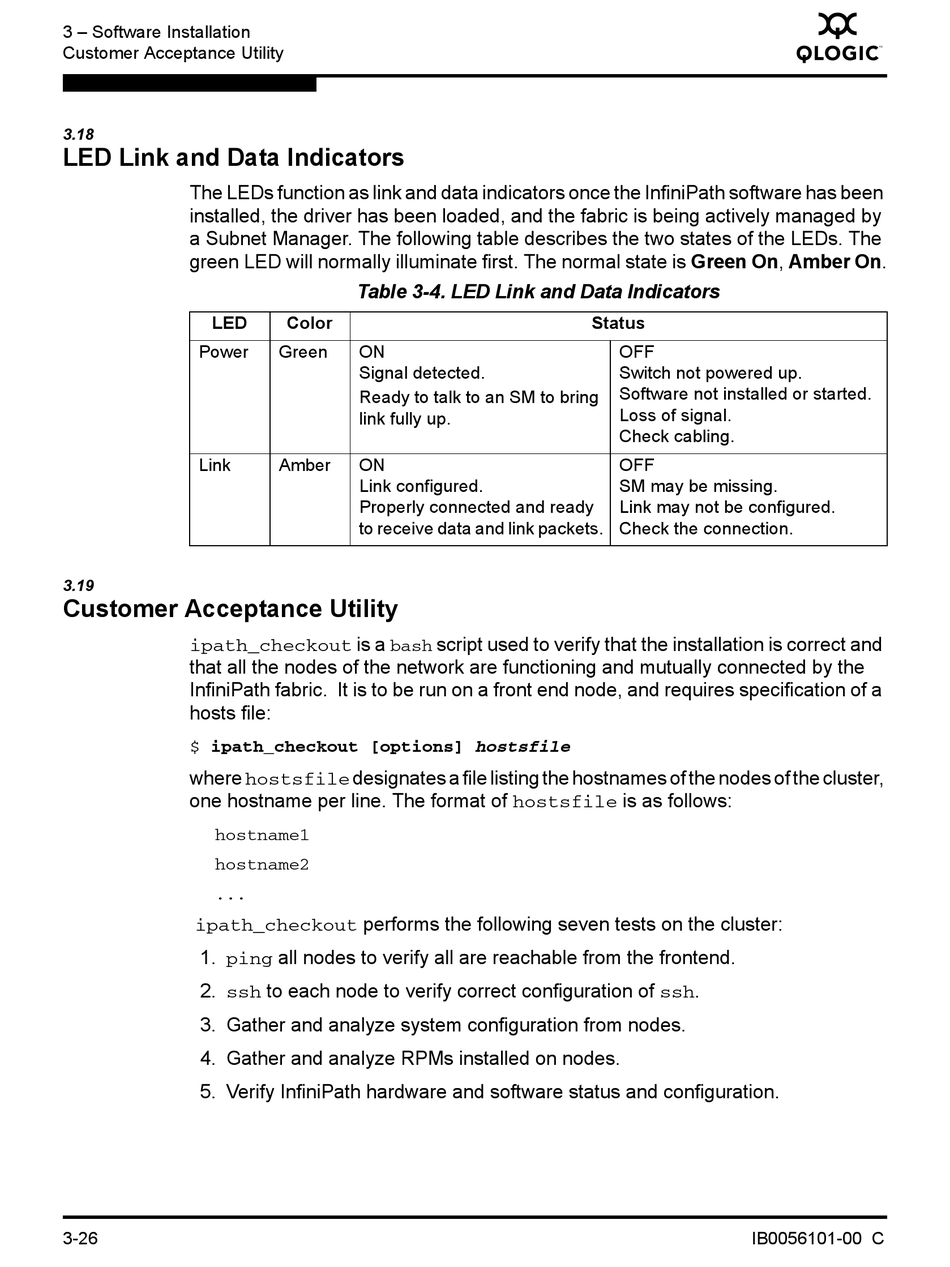

3 – Software Installation
Customer Acceptance Utility
3.18
LED Link and Data Indicators
The LEDs function as link and data indicators once the InfiniPath software has been
installed, the driver has been loaded, and the fabric is being actively managed by
a Subnet Manager. The following table describes the two states of the LEDs. The
green LED will normally illuminate first. The normal state is Green On, Amber On.
LED
Power
Link
3.19
Customer Acceptance Utility
ipath_checkout is a
that all the nodes of the network are functioning and mutually connected by the
InfiniPath fabric. It is to be run on a front end node, and requires specification of a
hosts file:
$ ipath_checkout [options] hostsfile
where hostsfile designates a file listing the hostnames of the nodes of the cluster,
one hostname per line. The format of hostsfile is as follows:
hostname1
hostname2
...
ipath_checkout performs the following seven tests on the cluster:
1. ping all nodes to verify all are reachable from the frontend.
2. ssh to each node to verify correct configuration of ssh.
3. Gather and analyze system configuration from nodes.
4. Gather and analyze RPMs installed on nodes.
5. Verify InfiniPath hardware and software status and configuration.
3-26
Table 3-4. LED Link and Data Indicators
Color
Green
ON
Signal detected.
Ready to talk to an SM to bring
link fully up.
Amber
ON
Link configured.
Properly connected and ready
to receive data and link packets.
script used to verify that the installation is correct and
bash
Status
OFF
Switch not powered up.
Software not installed or started.
Loss of signal.
Check cabling.
OFF
SM may be missing.
Link may not be configured.
Check the connection.
IB0056101-00 C
