Q
HTX Edge
Connectors

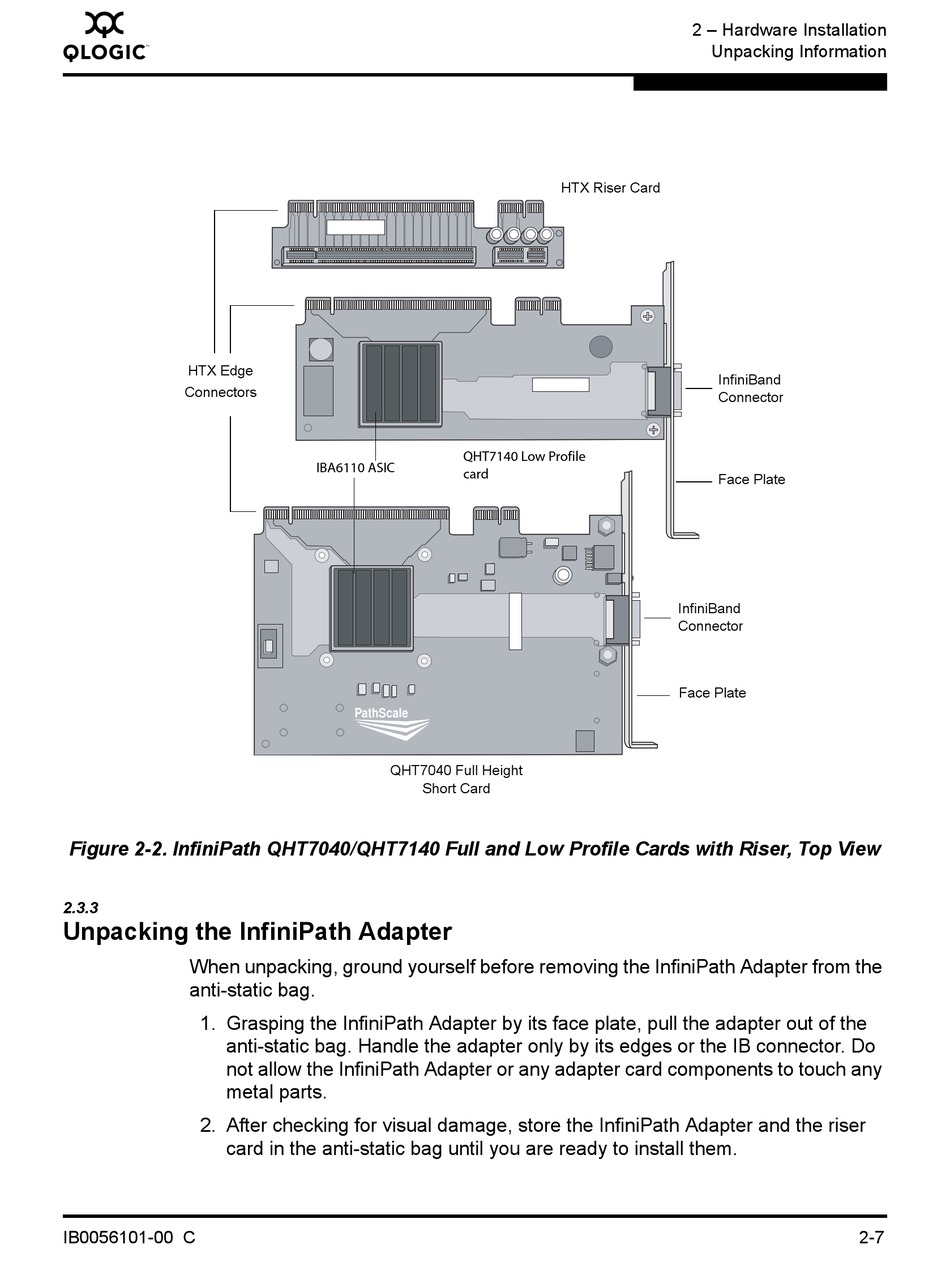

Figure 2-2. InfiniPath QHT7040/QHT7140 Full and Low Profile Cards with Riser, Top View
2.3.3

Unpacking the InfiniPath Adapter

When unpacking, ground yourself before removing the InfiniPath Adapter from the
anti-static bag.
1. Grasping the InfiniPath Adapter by its face plate, pull the adapter out of the
anti-static bag. Handle the adapter only by its edges or the IB connector. Do
not allow the InfiniPath Adapter or any adapter card components to touch any
metal parts.
2. After checking for visual damage, store the InfiniPath Adapter and the riser
card in the anti-static bag until you are ready to install them.
IB0056101-00 C
QHT7140 Low Profile
IBA6110 ASIC
card
PathScale
PathScale
QHT7040 Full Height
Short Card
2 – Hardware Installation
Unpacking Information
HTX Riser Card
InfiniBand
Connector
Face Plate
InfiniBand
Connector
Face Plate
2-7
