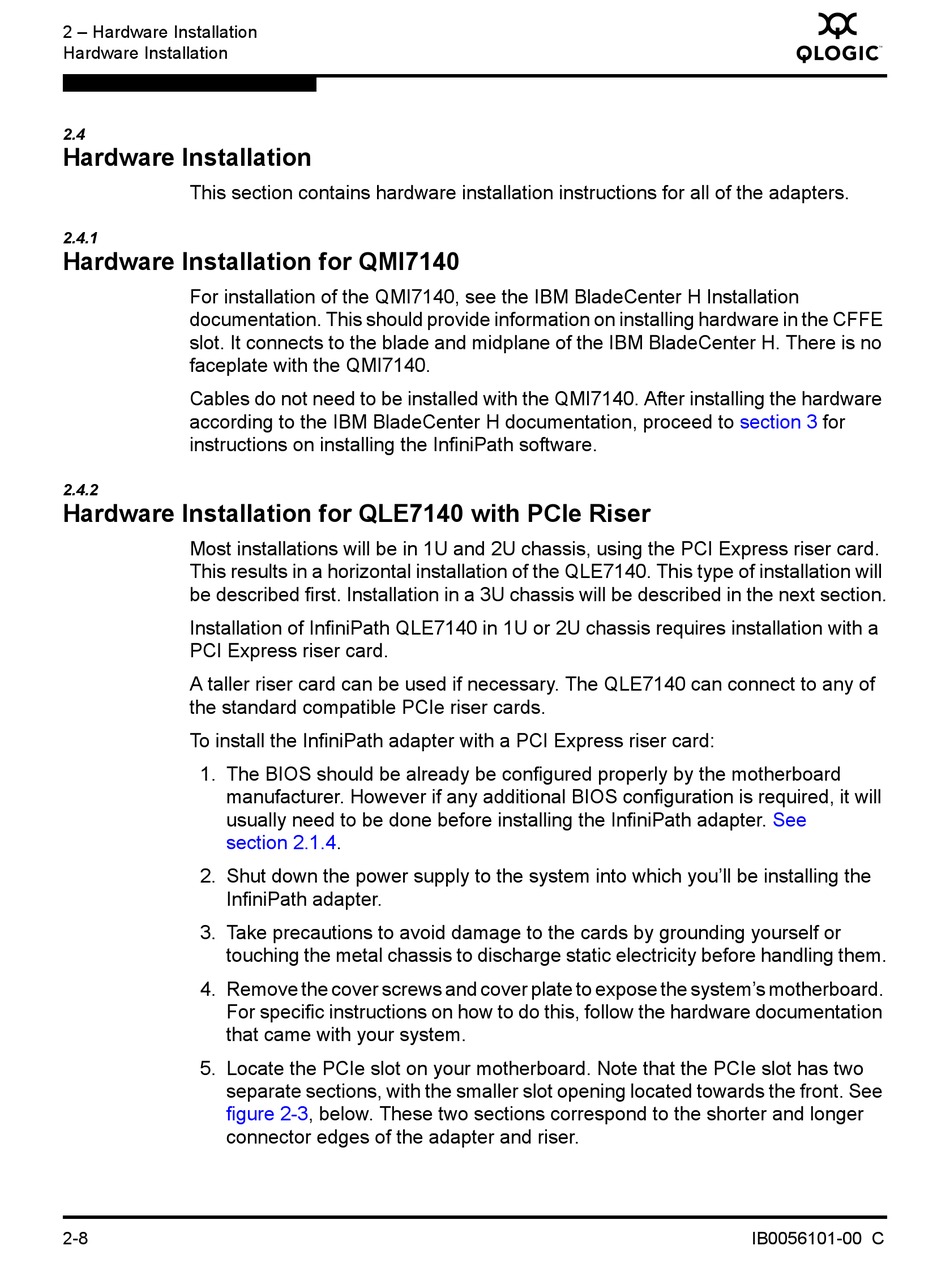

2 – Hardware Installation
Hardware Installation
2.4
Hardware Installation
This section contains hardware installation instructions for all of the adapters.
2.4.1
Hardware Installation for QMI7140
For installation of the QMI7140, see the IBM BladeCenter H Installation
documentation. This should provide information on installing hardware in the CFFE
slot. It connects to the blade and midplane of the IBM BladeCenter H. There is no
faceplate with the QMI7140.
Cables do not need to be installed with the QMI7140. After installing the hardware
according to the IBM BladeCenter H documentation, proceed to
instructions on installing the InfiniPath software.
2.4.2
Hardware Installation for QLE7140 with PCIe Riser
Most installations will be in 1U and 2U chassis, using the PCI Express riser card.
This results in a horizontal installation of the QLE7140. This type of installation will
be described first. Installation in a 3U chassis will be described in the next section.
Installation of InfiniPath QLE7140 in 1U or 2U chassis requires installation with a
PCI Express riser card.
A taller riser card can be used if necessary. The QLE7140 can connect to any of
the standard compatible PCIe riser cards.
To install the InfiniPath adapter with a PCI Express riser card:
1. The BIOS should be already be configured properly by the motherboard
manufacturer. However if any additional BIOS configuration is required, it will
usually need to be done before installing the InfiniPath adapter.
section
2. Shut down the power supply to the system into which you'll be installing the
InfiniPath adapter.
3. Take precautions to avoid damage to the cards by grounding yourself or
touching the metal chassis to discharge static electricity before handling them.
4. Remove the cover screws and cover plate to expose the system's motherboard.
For specific instructions on how to do this, follow the hardware documentation
that came with your system.
5. Locate the PCIe slot on your motherboard. Note that the PCIe slot has two
separate sections, with the smaller slot opening located towards the front. See
figure
connector edges of the adapter and riser.
2-8
2.1.4.
2-3, below. These two sections correspond to the shorter and longer
Q
section 3
for
See
IB0056101-00 C
