2 – Hardware Installation

Hardware Installation for QHT7140 without HTX Riser

13. Insert the HT riser assembly into the motherboard's HTX slot, ensuring good
contact. The InfiniPath Adapter should now be parallel to the motherboard and
about one inch above it.
14. Secure the face plate to the chassis. The InfiniPath adapter has a screw hole
on the side of the face plate which can be attached to the chassis with a retention
screw. The securing method may vary depending upon the chassis
manufacturer. Refer to the system documentation for information about
mounting details such as mounting holes, screws to secure the card, or other
brackets.
The InfiniPath QHT7140 with HTX riser card is now installed. Next, install the cables
as described in
link status.
2.5
Hardware Installation for QHT7140 without HTX Riser
The installation of InfiniPath QHT7140 without an HTX riser card requires a 3U or
larger chassis. The card slot connectors on the QHT7140 fit into the HTX slot in a
vertical installation.
To install the InfiniPath Adapter without the HTX riser card:
1. The BIOS should be already be configured properly by the motherboard
manufacturer. However if any additional BIOS configuration is required, it will
2-14

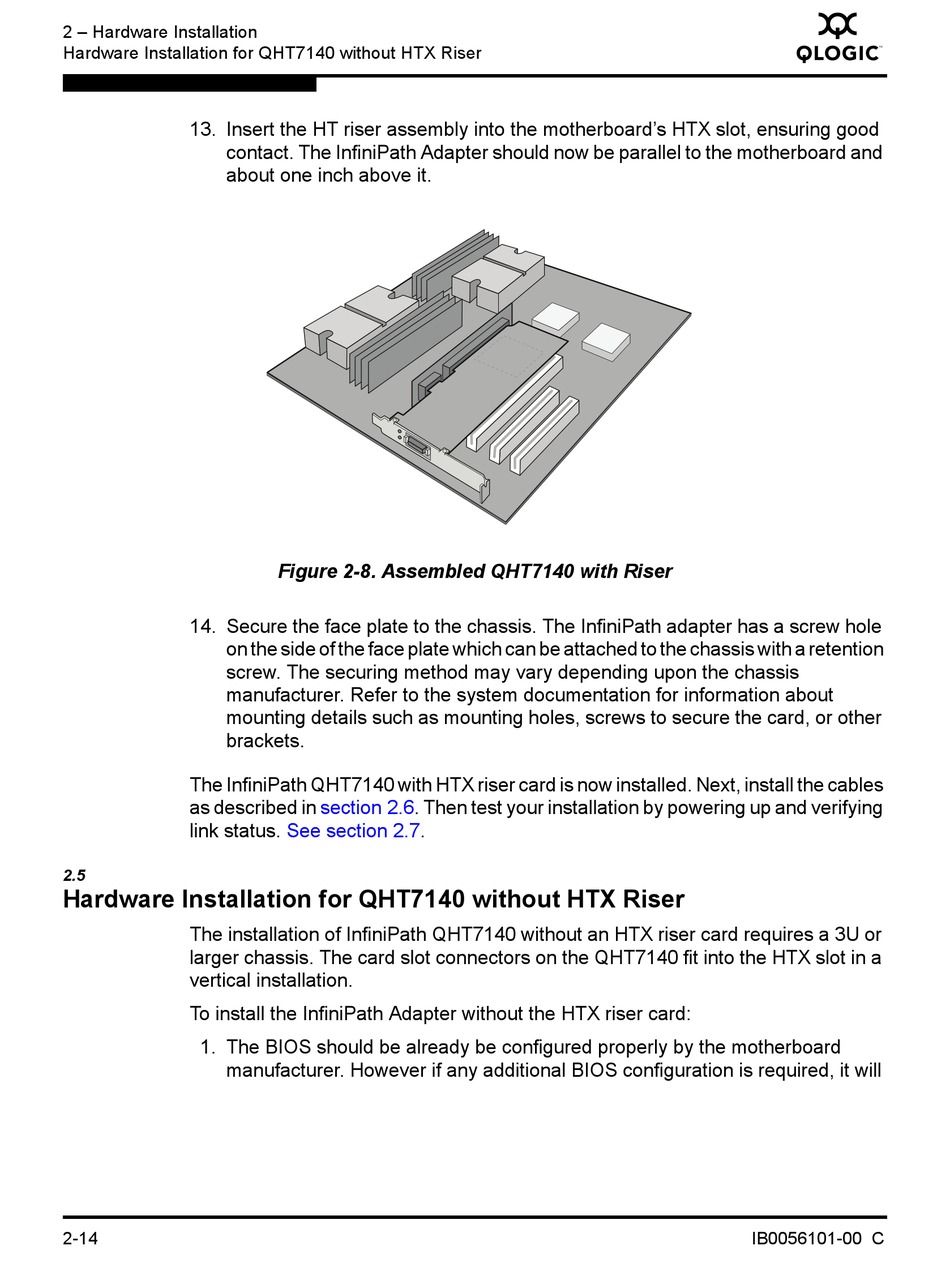

Figure 2-8. Assembled QHT7140 with Riser
section 2.6. Then test your installation by powering up and verifying
See section 2.7.
Q
IB0056101-00 C
