Terminal Identification - Altronix AL175ULX Installation Instructions

Terminal Legend Function/Description
These input terminals are designed to connect to the normally closed outputs of an access control or
TRG1 and TRG2 fire alarm relay. These terminals control [LOCK+], and [STRIKE+], as well as AL175ULX output
relay contacts [NC, NO, C]
This terminal provides DC output voltage when [TRG1] and [TRG2] are shorted together and are
LOCK+
typically used to power Mag Locks.
This terminal provides DC output voltage when [TRG1] and [TRG2] are unshorted and are typically
STRIKE+
used to power Electric Strikes.
Isolated dry Form "C" contacts. Shorting [TRG1] and [TRG2] together causes these contacts to
NC, NO, C switch. They are typically used for controlling multiple AL175ULXs with fire alarm tie-in (Fig. 5
and Fig. 6, pg. 4)
AUX + Continuous positive (+) DC power output voltage. It is not affected by TRG1, TRG2 operation.
COM - Common negative (-) output (ground).
FACP Spare wiring terminal used for fire alarm tie-in application (Fig. 4, pg. 4).
+ BAT -­ Stand-by battery connections.
AC FAIL Indicates loss of AC e.g connect audible device or alarm panel relay normally energized
NC, C, NO When AC power is present. Contact rating 1A @ 28VDC.
1.20"
(31mm)
1.40"
(36mm)
5.10"
(130mm)
5.10"
(130mm)
3.25"
(83mm)
AL175ULX

Terminal Identification:

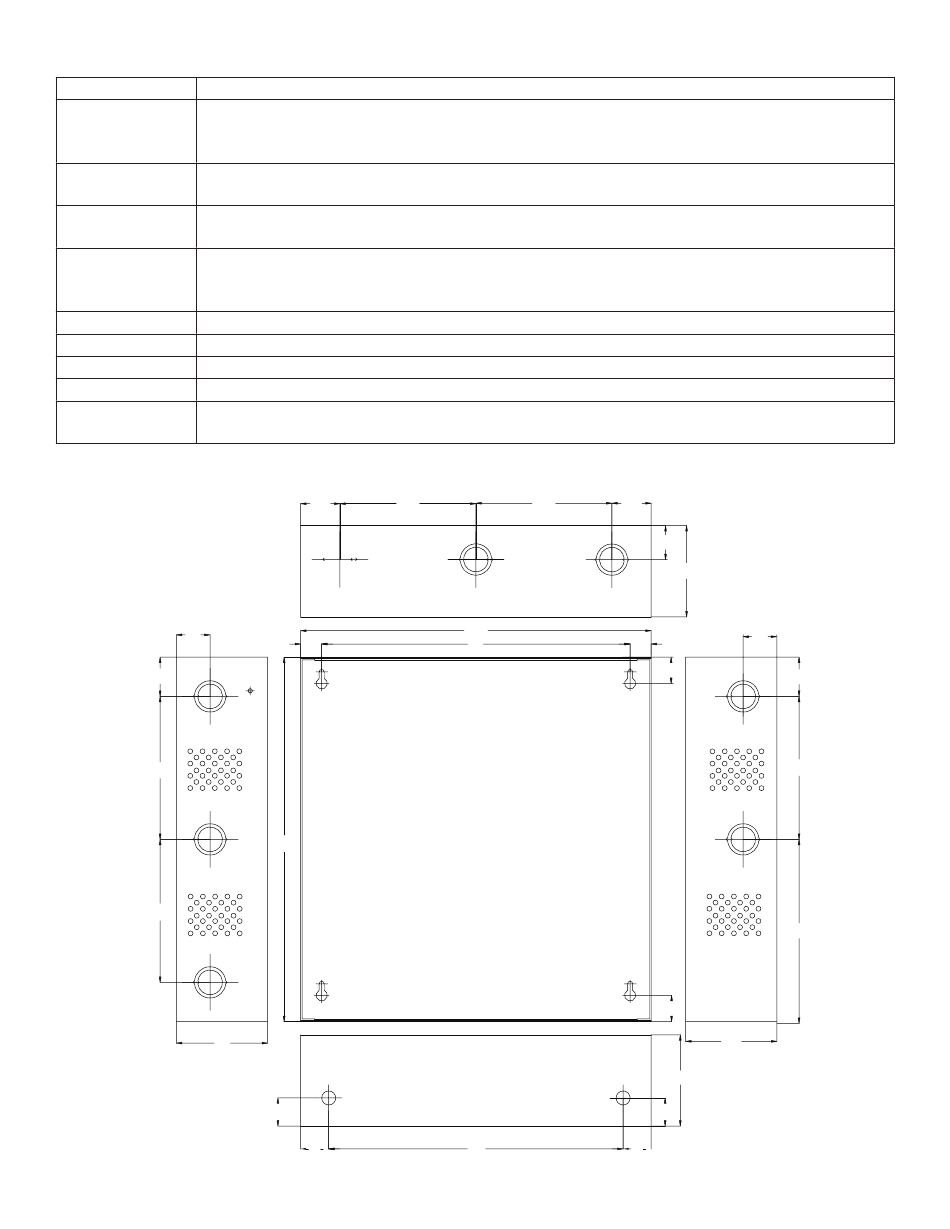

Enclosure Dimensions:
13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.55mm)
1.40" 4.85"
(36mm) (123mm)
0.75"
(19mm)
13.0"
(330mm)
1.0"
(25mm)
1.0"
(25mm)
Available from A1 Security Cameras
www.a1securitycameras.com email: sales@a1securitycameras.com
4.85" 1.40"
(123mm) (36mm)
12.5"
(318mm)
0.75"
11.0"
(19mm)
(279mm)
10.5" 1.0"
(267mm) (25mm)
1.20"
(31mm)
3.25"
(83mm)
1.20"
(31mm)
0.9375"
(24mm) 1.40"
(36mm)
5.10"
(130mm)
6.5625"
(167mm)
0.9375"
(24mm)
3.25"
(83mm)
3.25"
(83mm)
1.0"
(25mm)
- 3 ­
