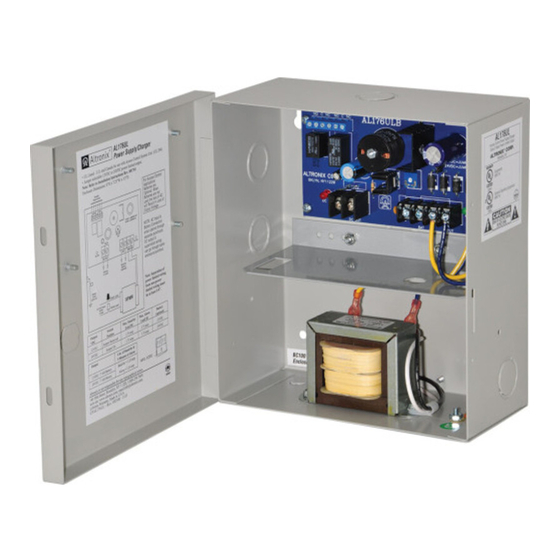

AL176220 Series
Access Control
Power Supply/Chargers
Models Include:
AL176220
- Enclosure Dimensions: 8.5" x 7.5" x 3.5" (215.9mm x 190.5mm x 88.9mm).
- Accommodates one (1) 12VDC/4AH battery.
AL176X220
- Enclosure Dimensions: 13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.6mm).
- Accommodates up to two (2) 12VDC/7AH Batteries.
Installation Guide
Rev. 011416
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
More than just power.
TM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Altronix AL176220 Series
Summary of Contents for Altronix AL176220 Series
- Page 1 AL176220 Series Access Control Power Supply/Chargers Models Include: AL176220 - Enclosure Dimensions: 8.5” x 7.5” x 3.5” (215.9mm x 190.5mm x 88.9mm). - Accommodates one (1) 12VDC/4AH battery. AL176X220 - Enclosure Dimensions: 13.5” x 13” x 3.25” (342.9mm x 330.2mm x 82.6mm).
- Page 2 Overview: Altronix AL176220 and AL176X220 are power supply/chargers that converts a 220VAC (working range 198VAC - 256VAC), 50/60Hz input into 12VDC or 24VDC output (see specifications). Units must be installed in accordance with National and Local Electrical Codes and Regulations.
- Page 3 Relay is normally energized when AC power is present. Contact rating 1A @ 28VDC. LOW BAT Used to notify low battery condition, e.g. connect audible device or alarm panel. NO, C, NC Relay is normally energized. Contact rating 1A @ 28VDC. AL176220 Series Installation Guide - 3 -...
- Page 4 12VDC = JUMPER OUT 24VDC = JUMPER IN DC ON AC ON 220VAC Input + DC OUT ---- + BAT ---- XFMR INPUT 50/60Hz, 0.3A Black Lead Devices Stand-by XFMR White Lead or Load Battery (optional) - 4 - AL176220 Series Installation Guide...
- Page 5 Notes: AL176220 Series Installation Guide - 5 -...
- Page 6 Notes: - 6 - AL176220 Series Installation Guide...
- Page 7 (31.8mm) 1.25” 0.6” (15.2mm) 0.6” (15.2mm) (31.75mm) 6.05” (153.7mm) 1.125” 1.125” (28.6mm) (28.6mm) 1” 1” (25.4mm) (25.4mm) 6.05” (153.7mm) 1.25” 0.6” (15.2mm) 0.6” (15.2mm) (31.75mm) 1” (25.4mm) 5.25” (133.35mm) 1” 1” (25.4mm) (25.4mm) AL176220 Series Installation Guide - 7 -...
- Page 8 1.0” 1.0” 10.5” (266.7mm) (25.4mm) (25.4mm) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty IIAL176220 Series F30U...
