INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the Parts
List in the appropriate place in your machine manual for future reference.
Retaining the Parts List will make it easier to reorder individual parts and will
save you the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.

Operation instructions for kit number 391049

SYNOPSIS / PROBLEM:

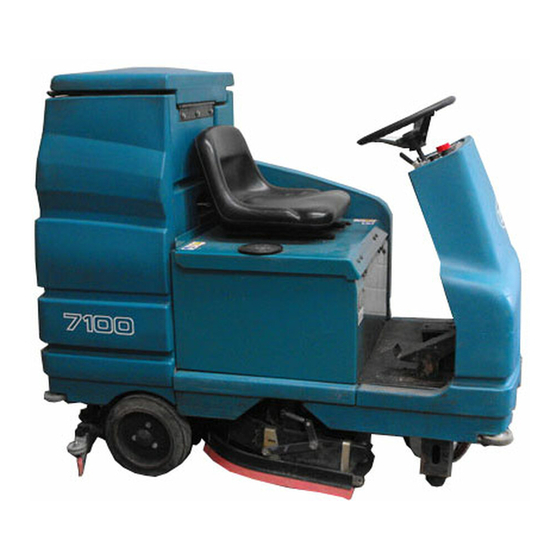

This kit contains the battery rollout cart for the battery rollout kit on the 7100 model scrubber.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 0 hour [battery rollout cart is pre--assembled])

PREPARATION:

(Refer to FIG. 1)
FOR SAFETY: Before leaving or servicing machine, stop on level surface and set parking
brake. Then turn off machine and remove key.
WARNING: Always disconnect battery cables from machine before working
on electrical components.

BATTERY CART OPERATION:

1. Drive the machine to a flat, dry surface.
2. Turn the machine power off and set the parking brake.
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, set parking
brake, turn off machine, and remove key.
3. Lift the operator seat to access the batteries. The
support arm automatically engages when the seat is
lifted all the way up.

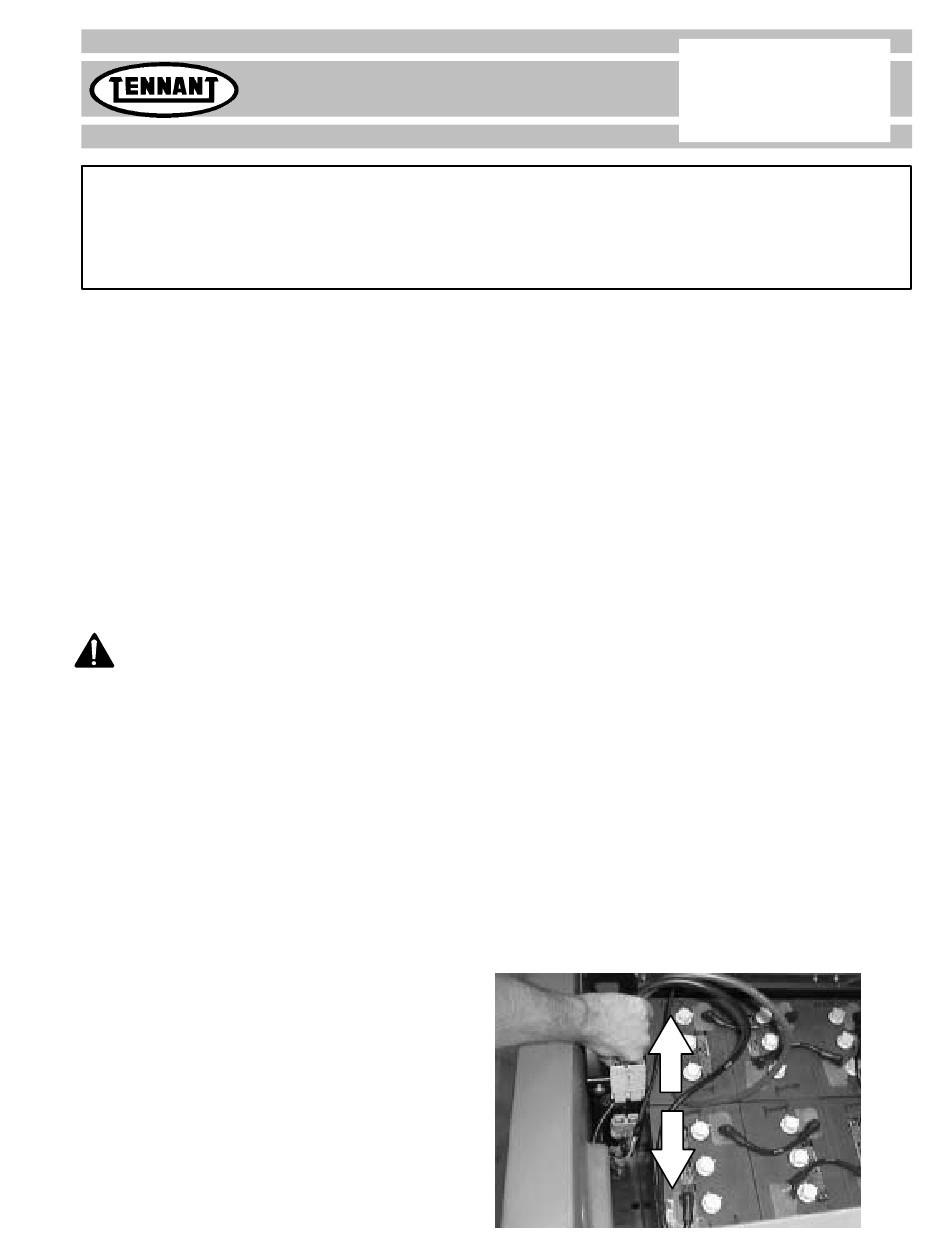

4. Unplug the machine connector from the batteries.
IB 340427 (10-00)
No. 340427
Machine: 7100
Published: 10-00/00
System: OPTIONS
1
