1.3.2 LAN8740A PHY Daughter Board
Representation of the layout of the daughter board included in the PIC32MZ DA Family
Starter Kit is shown in Figure 1-8

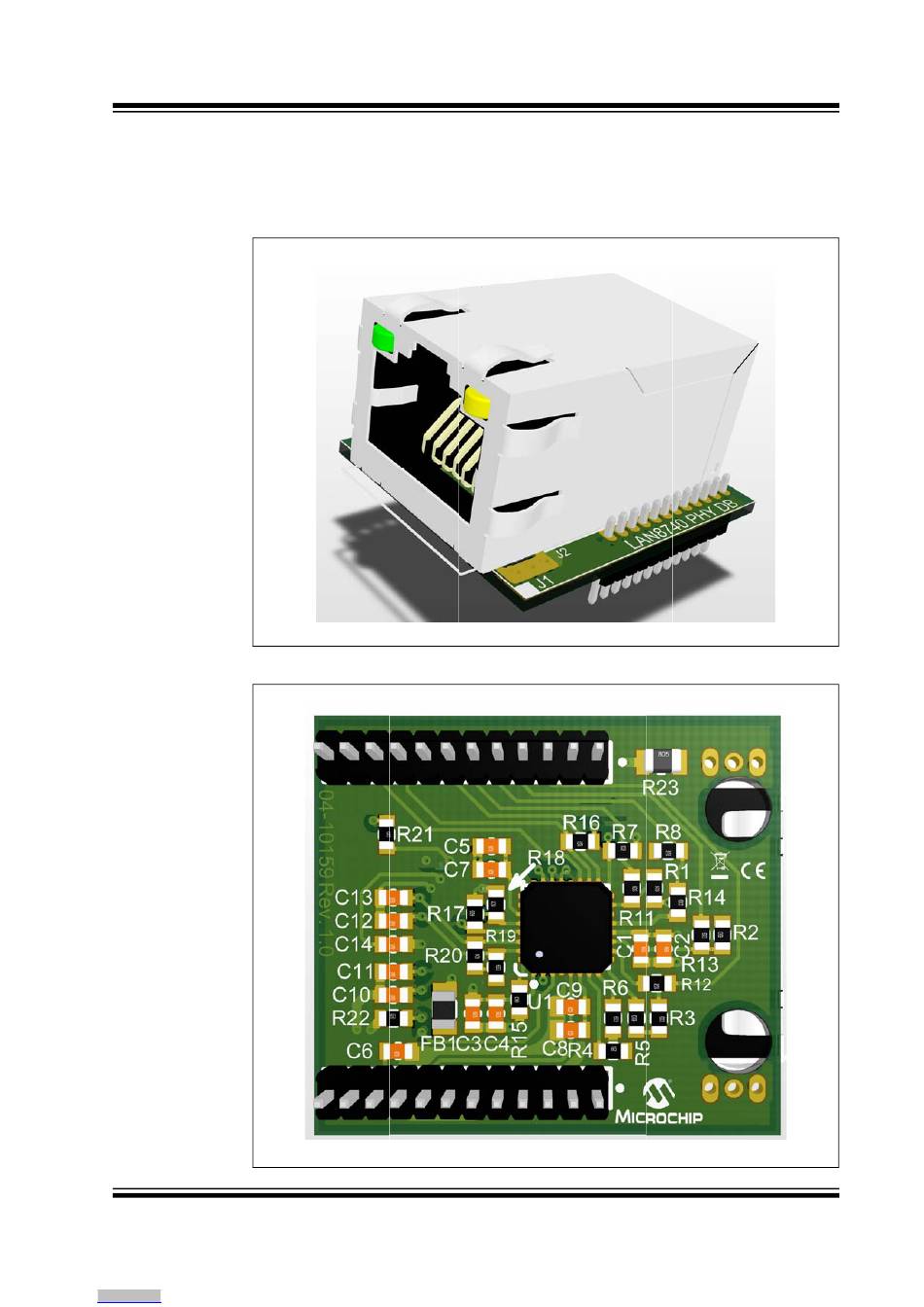

FIGURE 1-8: DAUGHTER BOARD LAYOUT (TOP VIEW)
FIGURE 1-9: DAUGHTER BOARD LAYOUT (BOTTOM VIEW)
and Figure 1-9.
Introduction
DS70005311A-page 21
