PIC32MZ DA Family Starter Kit User's Guide
FIGURE 1-3:
DS70005311A-page 16
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
The bottom assembly of the PIC32MZ DA SK Base Board includes these key features,
as indicated in Figure
1. USB Micro-B connector for on-board debugger (J19).
2. USB Type Micro-AB receptacle for OTG and USB device connectivity for PIC32
OTG/Device-based applications (J6).
3. PIC24FJ256GB106 USB microcontroller for on-board debugging (U7).
4. SST26VF032B SQI-Flash Memory (U5).
5. 50 MHz Ethernet PHY oscillator (Y1).
6. 168-pin Hirose connector for various application boards, such as MEB-II (J3).

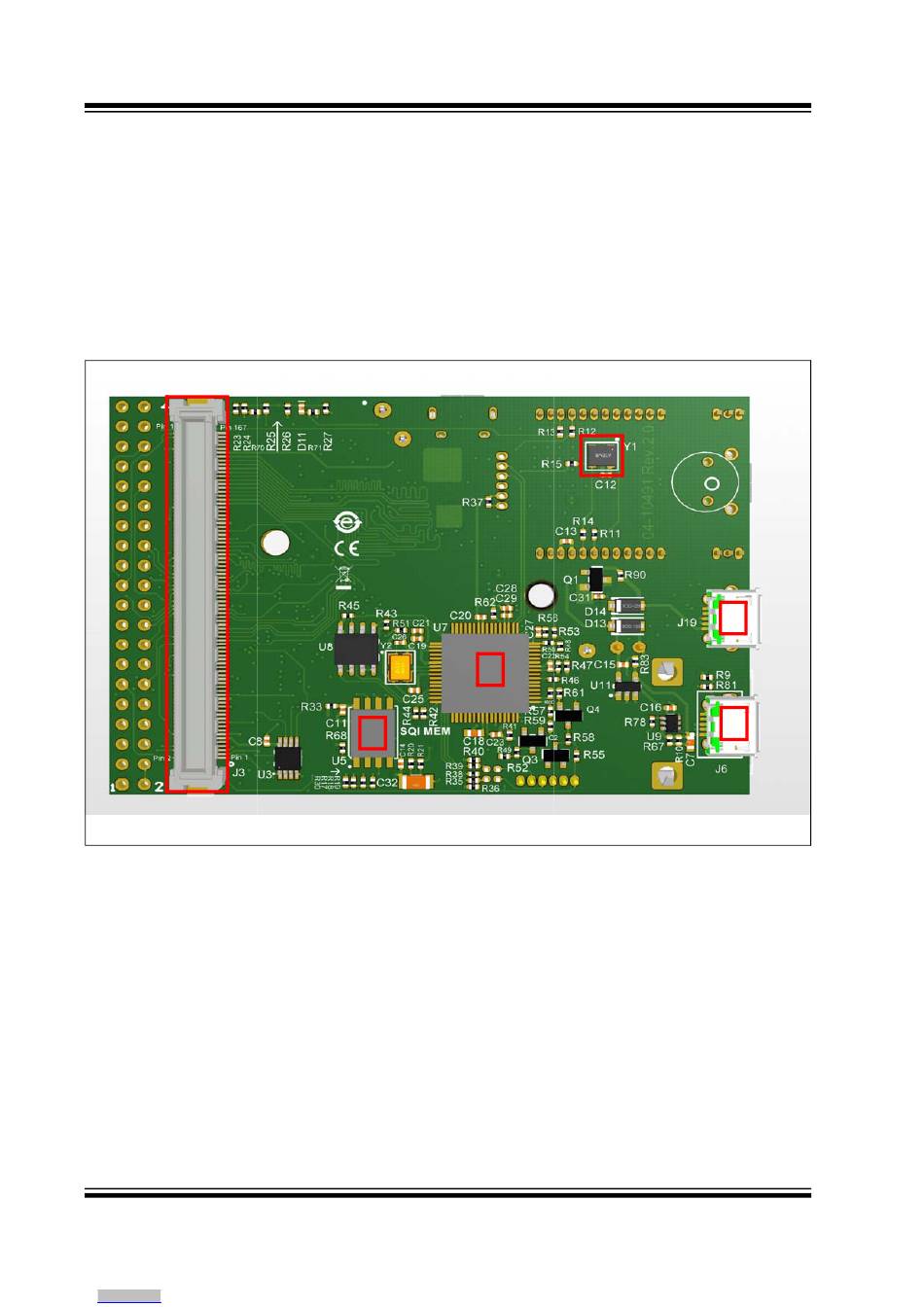

PIC32MZ DA SK BASE BOARD LAYOUT (BOTTOM VIEW)
6
1-3.
3
4
5
1
2
