STEP 4

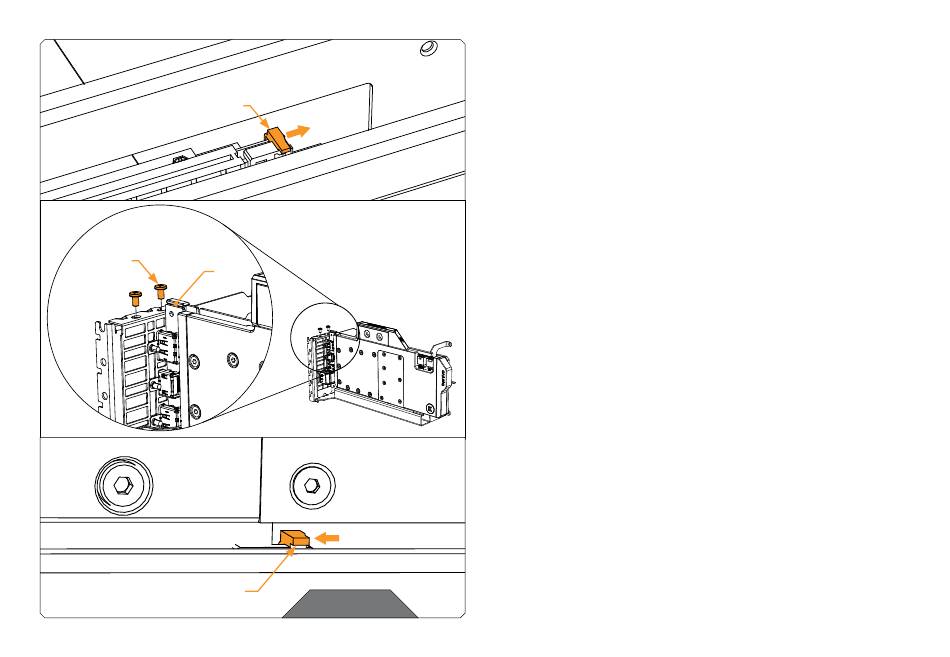

Before you mount the GPU, make sure the PCIE latch is not closed – it
must be pushed to the right side.
PCIE Latch
Carefully mount the GPU onto the GPU Holder, using two UNC
6-32x1/4 screws. Pay special attention not to damage the GPU.
UNC
GPU
6-32x1/4
Secure the GPU by moving the PCIE latch that is positioned
underneath it, to the left. You may use a credit card, screwdriver, or
similar item to move the latch.
PCIE Latch
STEP 4
- 9 -
