EK-Loop
Angled Bracket – 120/140 mm
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EK-Loop and is the answer not in the manual?

Questions and answers

Related Manuals for ekwb EK-Loop

Summary of Contents for ekwb EK-Loop

  • Page 1 EK-Loop Angled Bracket – 120/140 mm USER GUIDE...
  • Page 2 Before you start using this product please follow these basic guidelines: Please, read the manual carefully before you begin with the installation process! EK-Loop Angled Bracket - 120/140mm is compatible with EK- QuantumX Loophole Distroplate.

  • Page 3: Table Of Contents

    TABLE OF CONTENT BOX CONTENTS ASSEMBLING THE EK-LOOP ANGLED BRACKET INSTALLING THE EK-LOOP ANGLED BRACKET DIRECTLY INTO THE CASE INSTALLING THE EK-LOOP ANGLED BRACKET ONTO THE RADIATOR ATTACHING THE RESERVOIR TO THE EK-LOOP ANGLED BRACKET ATTACHING THE FITTINGS SUPPORT AND SERVICE...

  • Page 4: Box Contents

    Allen Key 2.5mm M4 Steel Washers (4 pcs) (4 pcs) EK-Loop Angled Bracket Base - 120 EK-Loop Angled Bracket - 140 - left part EK-Loop Angled Bracket - 140 - right part (2 pcs) (102286) (107025) (107028) - 4 -...

  • Page 5: Assembling The Ek-Loop Angled Bracket

    ASSEMBLING THE EK-LOOP ANGLED BRACKET EK-Loop Angled Bracket base piece has four slot holes that allow adjustability. Larger slot holes will enable adjusting of the bracket’s position (50 mm on each side). Side pieces can be screwed into the base through one of the slots or both of them.

  • Page 6: Installing The Ek-Loop Angled Bracket Directly Into The Case

    INSTALLING THE EK-LOOP ANGLED BRACKET DIRECTLY INTO THE CASE EK-Loop Angled Bracket - 120/140 mm can be mount directly into the case when there is a place for a 140 mm fan. M4 NUT The 140 mm format FLT reservoir can also be mounted onto the EK- Loop Angled Bracket and secured together into the chassis.

  • Page 7: Installing The Ek-Loop Angled Bracket Onto The Radiator

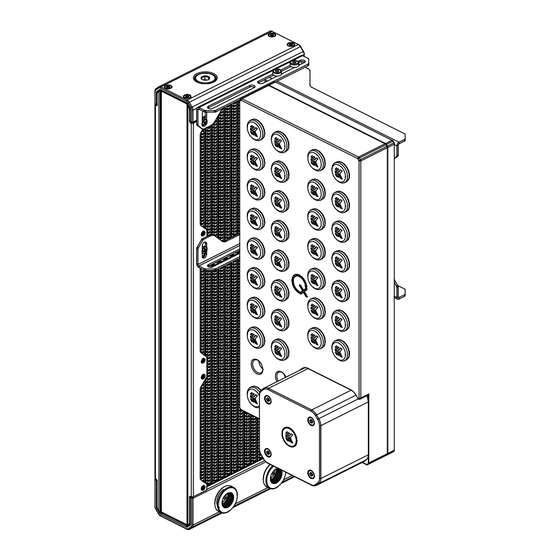

    INSTALLING THE EK-LOOP ANGLED BRACKET ONTO THE RADIATOR EK-Loop Angled Bracket - 120/140 mm can be mounted onto the 120 mm format radiator using the M4 x 5 mm Phillips head radiator mounting screws (as shown in the picture). There is no need for additional nuts, just tighten the screws evenly and do not use excessive force.

  • Page 8: Attaching The Reservoir To The Ek-Loop Angled Bracket

    ATTACHING THE RESERVOIR TO THE EK-LOOP ANGLED BRACKET Carefully position the 140 format reservoir onto the EK-Loop angled bracket and secure it with the enclosed M4 X 10 DIN 7984 screws and acetal standoffs (as shown in the picture). While tightening the screws, do not use excessive force.

  • Page 9: Attaching The Fittings

    ATTACHING THE FITTINGS When using the EK-Loop Angled Bracket with FLT products, we EK-FITTINGS recommend you use EK-Fittings because of their compatibility, and there will be no reason to worry. Before you attach the fittings, make sure the acetal standoffs are placed correctly.

  • Page 10: Support And Service

    SUPPORT AND SERVICE For assistance please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
