General
3.2

Survey and construction

8
6
5
3.3

Technical Data

Type Gripping Range
EXG-MAXI 0 – 400 mm
(0 – 15¾")
7
Fig. 1
Inside Height
E
165 – 215 mm
(6½ – 8½")
1
2
3
Gripper Lenght L Carrying capacity/working
load limit (WLL):
235 mm 600 kg
(9¼") (1,320 lbs)

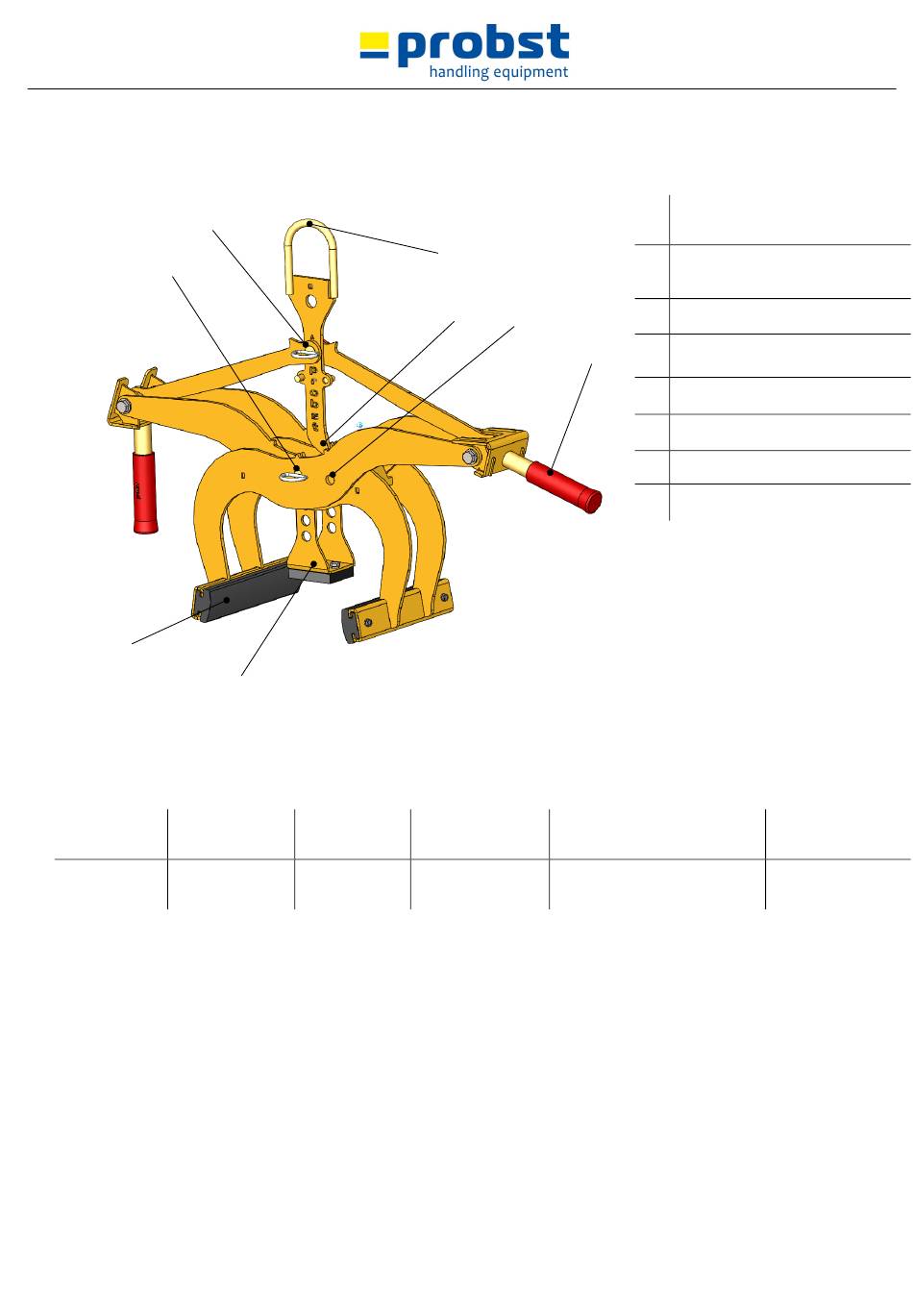

1 Suspension lug for support
frame
2 Locking hook (to transport the
device without a gripping good)
Adjusting hole for gripping range
3
range
4 Handle (for manual operation)
4
5
Rubber grippers
6 Plug bolt with linchpin
7 Hight-adjustalbe support
8 Plug bolt with linchpin
10 / 18
Dead Weight
15 kg
(34 lbs)
