- Page 1 SDW-500 series Industrial Ethernet 5-port Switch...
- Page 2 6644-2214...
-
Page 3: General Information
Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused. -
Page 4: Safety And Regulations
Safety and Regulations Warning signs are provided to prevent personal injuries and/or damages to the product. The following levels are used: Level of warning Description Consequence Consequence personal injury material damage Indicates a potentially Possible death or Major damage to the hazardous situation major injury product... - Page 5 WARNING - PROTECTIVE FUSE The power supply wiring must be sufficiently fused. It must be possible to disconnect manually from the power supply. Ensure compliance to national installation regulations. Replacing the internal fuse must only be performed by Westermo qualified personell. 6644-2214...
- Page 6 WARNING - REDUCE THE RISK OF FIRE To reduce the risk of fire, use only telecommunication line cords with a cable diameter of AWG 26 or larger. Regarding power cable dimensions, see Interface Specifications. CAUTION - CLASS 1 LASER PRODUCT Do not look directly info a fibre optical port or any connected fibre, although the product is designed to meed the Class 1 Laser regulations and complies with 21 CFR 1040.10 and 1040.11.
-
Page 7: Care Recommendations
If the product is used in a manner not according to specification, the protection provided by the equipment may be impaired. If the product is not working properly, contact the place of purchase, nearest Westermo distributor office or Westermo technical support. -
Page 8: Simplified Eu Declaration Of Conformity
10/100Base-T/TX: 3 ports 100Base-FX: 2 port Simplified EU declaration of conformity Hereby, Westermo declares that the equipment is in compliance with EU directives. The full EU declaration of conformity and other detailed information are available at the respective product page at www.westermo.com. -
Page 9: Agency Approvals And Standards Compliance
Agency approvals and standards compliance Type Approval / Compliance EN 61000-6-2, Immproducty industrial environments EN 61000-6-3 , Emission residential environments EN 61000-6-4 , Emission industrial environments E-Mark, Road Vehicles, 10R-04 7216 Safety UL 60950-1, IT Equipment Marine DNV GL rules for classification – Ships and offshore products Note _ Applicable only for 3644-x001 _ Applicable only for 3644-0019, 3644-002x and 3644-003x... -
Page 10: Environmental Conditions

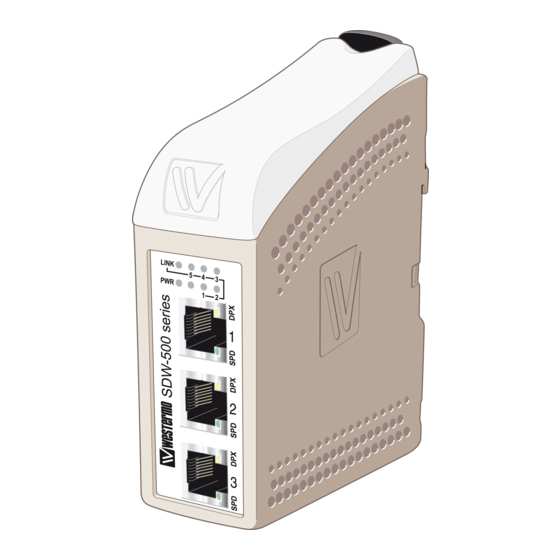

Environmental conditions Isolation between interfaces Power Interface to all other 2.8 kV DC 2.0 kV RMS @ 50 Hz and 60 s duration TX signal Interface to all other 2.1 kV DC 1.5 kV RMS @ 50 Hz and 60 s duration TX shield Interface to all other 1.5 kV DC 1.0 kV RMS @ 50 Hz and 60 s duration Environmental... - Page 11 Description The SDW-550 is an Industrial Ethernet 5-port switch. All ports support auto-negotiation, but DIP-switches also allow speed and duplex configuration of any individual TX port. It is also possible to set up one port to monitor traffic to/from the switch. The SDW-550 has been designed to meet high industrial specifications, providing very high dependability in harsh environmental conditions.
-
Page 12: Interface Specifications
Interface specifications Power SDW-500 series Rated voltage 12 –48 VDC, polarity protected Operating voltage 9.6 – 57.6 VDC Rated current @12 VDC power input SDW-550 320 mA SDW-541-MM-SC2 450 mA SDW-541-SM-LC15 450 mA SDW-541-SM-SC15 350 mA SDW-541-MM-LC2 350 mA SDW-532-MM-SC2... - Page 13 Connections LED indicators Network RJ-45 connection Network Fibre connection or RJ-45 connection Power connection Available models: … SDW-550 10/100Base-T/TX: 5 ports … SDW-541 10/100Base-T/TX: 4 ports 100Base-FX: 1 port … SDW-532 10/100Base-T/TX: 3 ports 100Base-FX: 2 ports 6644-2214...
- Page 14 Power The SDW-500 series supports redundant power connection. The positive input are +VA and +VB, the negative input for both supplies are COM. The power is drawn from the input with the highest voltage. 3-pos screw terminal Description Power A: 9.6 – 57.6 VDC B: 9.6 –...
-
Page 15: Led Indicators
LED indicators At power on the PWR flashes during initialising. Indicators (LED) Power (PWR) Link (LINK) of every port Speed (SPD) and duplex (DPX) of TX ports Status Indication of Internal power, initialising OK Slow flash Initialisation progressing Fast flash Initialisation error LINK No Ethernet link... -
Page 16: Installation
Installation Mounting / Removal WARNING - HAZARDOUS VOLTAGE Do not open an energized product. Hazardous voltage may occur when connected to a power supply. CAUTION - ELECTROSTATIC DISCHARGE (ESD) Prevent electrostatic discharge damages to internal electronic parts by discharging your body to a grounding point (e.g. use a wrist strap). - Page 17 DIP switch settings SDW-550 DIP-switches are accessible under the lid on top of the product. DIP-switches are used to configure the product. WARNING - HAZARDOUS VOLTAGE Do not open an energized product. Hazardous voltage may occur when connected to a power supply. CAUTION - ELECTROSTATIC DISCHARGE (ESD) Prevent electrostatic discharge damages to internal electronic parts by discharging your body to a grounding point (e.g.
-
Page 18: Port 1 Settings
Port 1 settings Port 3 settings Auto-negotiation and Auto-negotiation and auto MDI/MDI-X disabled auto MDI/MDI-X disabled 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 Auto-negotiation and Auto-negotiation and auto MDI/MDI-X enabled auto MDI/MDI-X enabled 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 10 Mbit/s speed selected... -
Page 19: Port Mirroring Settings
Port 5 settings Port mirroring settings Auto-negotiation and No monitoring selected auto MDI/MDI-X disabled 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 Auto-negotiation and Monitoring selected auto MDI/MDI-X enabled 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 10 Mbit/s speed selected 1 2 3 4 5 6 7 8... - Page 20 DIP switch settings SDW-541 and SDW-532 DIP-switches are accessible under the lid on top of the product. DIP-switches are used to configure the product. WARNING - HAZARDOUS VOLTAGE Do not open an energized product. Hazardous voltage may occur when connected to a power supply. CAUTION - ELECTROSTATIC DISCHARGE (ESD) Prevent electrostatic discharge damages to internal electronic parts by discharging your body to a grounding point (e.g.
- Page 21 Port 1 settings Auto-negotiation and auto MDI/MDI-X disabled 1 2 3 4 5 6 7 8 Auto-negotiation and auto MDI/MDI-X enabled 1 2 3 4 5 6 7 8 10 Mbit/s speed selected 1 2 3 4 5 6 7 8 100 Mbit/s speed selected Port 4 settings* 1 2 3 4 5 6 7 8...
- Page 22 Westermo • SE-635 35 Stora Sundby, Sweden Tel +46 16 42 80 00 Fax +46 16 42 80 01 E-mail: info@westermo.com www.westermo.com REV. I 6644-2214 2021-01 Westermo Network Technologies AB, Sweden...
