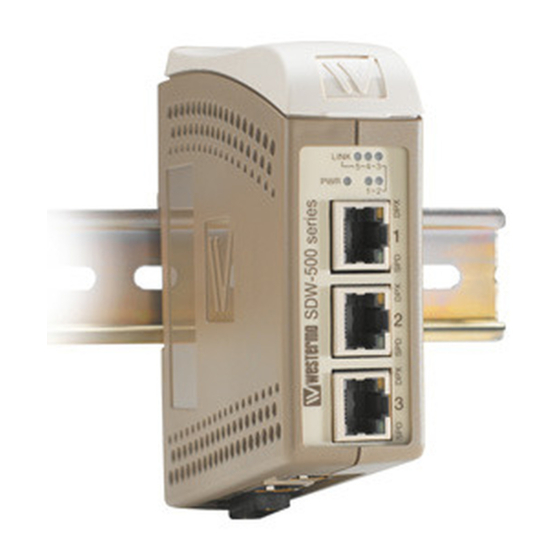

Westermo SDW-500 User Manual
Sdw-500 series, industrial ethernet 5-port switch
Hide thumbs
Also See for SDW-500:
- User manual (21 pages) ,
- User manual (23 pages) ,
- User manual (25 pages)
Subscribe to Our Youtube Channel
Related Manuals for Westermo SDW-500
Summary of Contents for Westermo SDW-500

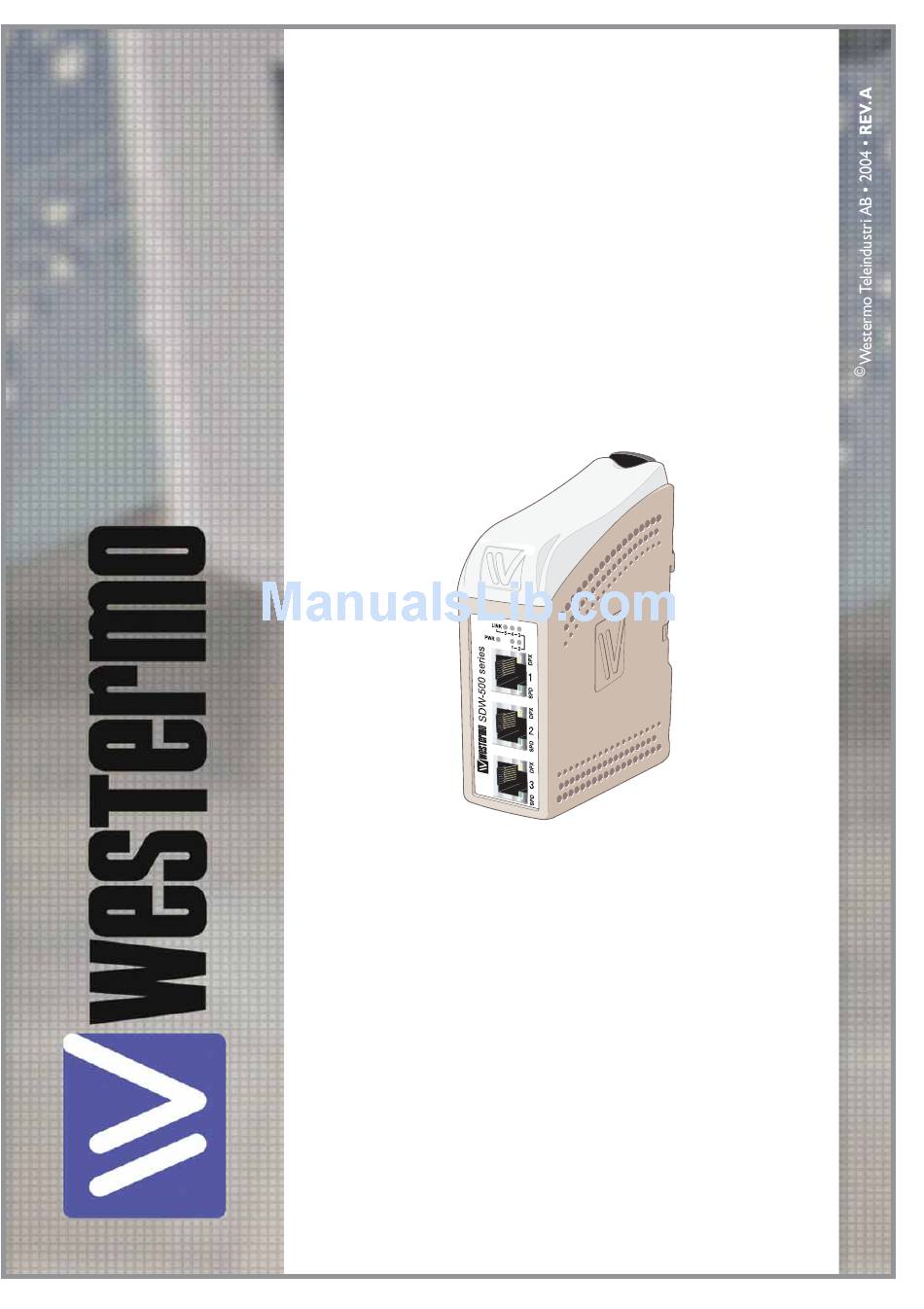

- Page 1 User Guide SDW-500 S E R I E S 6644-2211 Industrial Ethernet 5-port Switch www.westermo.com...
-
Page 2: Table Of Contents
Contents 1. Description ........................................2. Safety ............................................3. Approvals .......................................... 3.1 Declaration of Conformity ..............................4. Specification 6–7 ......................................5. Maintenance ........................................ 6. Installation ........................................6.1 Mounting / Removal ..................................6.2 Connections ......................................6.2.1 Power ......................................6.2.2 TX ........................................6.2.3 FX SC Multi- or single mode (optional) ................... -
Page 3: Description
TX port. It is also possible to set up one port to monitor traffic to/from the switch. The SDW-500 series has been designed to meet high industrial specifications, providing very high dependability in harsh environmental conditions. -
Page 4: Safety
2. Safety General: Before using this unit, read this manual completely and gather all information on the unit. Make sure that you understand it fully. Check that your application does not exceed the safe operating specifications for this unit. Before installation, maintenance or modification work: Prevent damage to internal electronics from electrostatic discharges (ESD) by discharging your body to a grounding point (e.g. -
Page 5: Declaration Of Conformity
3.1 Declaration of Conformity Westermo Teleindustri AB Declaration of conformity The manufacturer Westermo Teleindustri AB SE-640 40 Stora Sundby, Sweden Herewith declares that the product(s) Type of product Model Art no Installation manual DIN-rail SDW-550 LV 3644-0010 6644-2211 DIN-rail SDW-532-MM-SC2-SM-SC15 LV... -
Page 6: Specification
4. Specification Power interface SDW-500 series Rated voltage 12–48 VDC, polarity protected Operating voltage 9.6 – 57.6 VDC Rated current @12 VDC power input SDW-550 320 mA SDW-541-MM-SC2 450 mA SDW-541-MM-ST2 450 mA SDW-541-SM-LC15 350 mA SDW-541-SM-SC15 350 mA SDW-532-2MM-SC2... - Page 7 Isolation between interfaces Power Interface to all other 2.8 kV DC 2.0 kV RMS @ 50 Hz and 60 s duration TX signal Interface to all other 2.1 kV DC 1.5 kV RMS @ 50 Hz and 60 s duration TX shield Interface to all other 1.5 kV DC 1.0 kV RMS @ 50 Hz and 60 s duration Environmental...
-
Page 8: Maintenance
5. Maintenance No maintenance is required, as long as the unit is used as intended within the specified conditions. 6. Installation 6.1 Mounting / Removal Before mounting or removing the unit: Prevent damage to internal electronics from electrostatic discharges (ESD) by discharging your body to a grounding point (e.g. -
Page 9: Connections
6.2 Connections LED indicators Network RJ-45 connection Network Fibre connection or RJ-45 connection Power connection Available models: … SDW-550 10/100Base-T/TX: 5 ports … SDW-541 10/100Base-T/TX: 4 ports 100Base-FX: 1 port … SDW-532 10/100Base-T/TX: 3 ports 100Base-FX: 2 ports NOTE! SDW-532-MM-SC2-SM-SC15 Port 4: SC Single mode 15 km connector Port 5: SC Multi mode 2 km connector 6644-2211... -
Page 10: Power
6.2.1 Power The SDW-500 series supports 3-pos screw terminal Description redundant power connection. The positive input are +VA and +VB, the negative input for both supplies are COM. The power is drawn from the input with the highest voltage. 6.2.2 TX Ethernet TX connection (RJ-45 connector), automatic MDI/MDI-X crossover. -
Page 11: Dip Switch Settings Sdw-550
6.3 DIP switch settings SDW-550 DIP-switches are accessible under the lid on top of the unit. DIP-switches are used to configure the unit. Warning! Prevent damage to internal electronics from electrostatic discharges (ESD) by discharging your body to a grounding point (e.g. use of wrist strap), before the lid on top/front of the unit is removed. - Page 12 Port 1 settings Auto-negotiation and auto MDI/MDI-X disabled 1 2 3 4 5 6 7 8 Auto-negotiation and auto MDI/MDI-X enabled 1 2 3 4 5 6 7 8 Port 4 settings 10 Mbit/s speed selected Auto-negotiation and 1 2 3 4 5 6 7 8 auto MDI/MDI-X disabled 1 2 3 4 5 6 7 8 100 Mbit/s speed selected...
-
Page 13: Dip Switch Settings Sdw-541 And Sdw-532
6.4 DIP switch settings SDW-541 and SDW-532 DIP-switches are accessible under the lid on top of the unit. DIP-switches are used to configure the unit. Warning! Prevent damage to internal electronics from electrostatic discharges (ESD) by discharging your body to a grounding point (e.g. use of wrist strap), before the lid on top/front of the unit is removed. - Page 14 Port 1 settings Auto-negotiation and auto MDI/MDI-X disabled 1 2 3 4 5 6 7 8 Auto-negotiation and auto MDI/MDI-X enabled 1 2 3 4 5 6 7 8 10 Mbit/s speed selected 1 2 3 4 5 6 7 8 100 Mbit/s speed selected Port 4 settings* 1 2 3 4 5 6 7 8...
-
Page 15: Led Indicators
6.5 LED indicators At power on the PWR flashes during initialising. Indicators (LED) Power (PWR) Link (LINK) of every port Speed (SPD) and duplex (DPX) of TX ports Status Indication of Internal power, initialising OK Slow flash Initialisation progressing Fast flash Initialisation error LINK No Ethernet link... -
Page 16: Application Example
Application example Westermo Teleindustri AB • SE-640 40 Stora Sundby, Sweden Phone +46 16 42 80 00 Fax +46 16 42 80 01 E-mail: info@westermo.se Westermo Web site: www.westermo.com Subsidiaries Westermo Data Communications Ltd Westermo Data Communications S.A.R.L. Talisman Business Centre • Duncan Road 9 Chemin de Chilly 91160 CHAMPLAN Park Gate, Southampton •...
