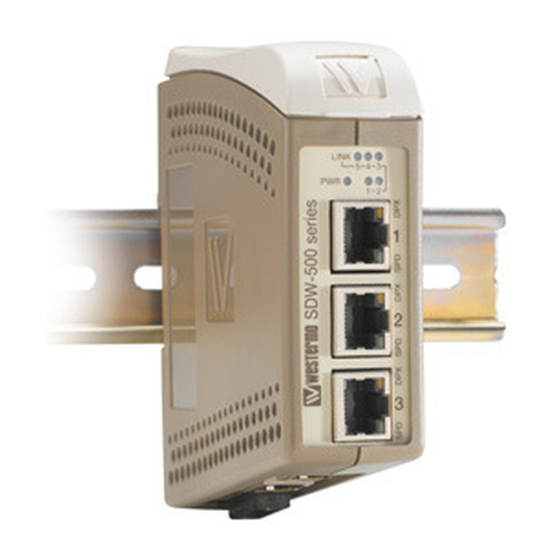

Westermo SDW-500 User Manual
Industrial ethernet 5-port switch
Hide thumbs
Also See for SDW-500:
- User manual (16 pages) ,
- User manual (23 pages) ,
- User manual (25 pages)
Related Manuals for Westermo SDW-500
Summary of Contents for Westermo SDW-500
- Page 1 SDW-500 SDW-541-F1G-T4G & SDW-550-T5G Industrial Ethernet 5-port Switch...
- Page 2 6644-2240...
-
Page 3: General Information
Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused. -
Page 4: Safety And Regulations
Safety and Regulations Warning signs are provided to prevent personal injuries and/or damages to the product. The following levels are used: Level of warning Description Consequence Consequence personal injury material damage Indicates a potentially Possible death or Major damage to the hazardous situation major injury product... - Page 5 WARNING - PROTECTIVE FUSE The power supply wiring must be sufficiently fused. It must be possible to disconnect manually from the power supply. Ensure compliance to national installation regulations. Replacing the internal fuse must only be performed by Westermo qualified personell. 6644-2240...
- Page 6 WARNING - REDUCE THE RISK OF FIRE To reduce the risk of fire, use only telecommunication line cords with a cable diameter of AWG 26 or larger. Regarding power cable dimensions, see Interface Specifications. CAUTION - CLASS 1 LASER PRODUCT Do not look directly info a fibre optical port or any connected fibre, although the product is designed to meed the Class 1 Laser regulations and complies with 21 CFR 1040.10 and 1040.11.
-
Page 7: Care Recommendations
If the product is used in a manner not according to specification, the protection provided by the equipment may be impaired. If the product is not working properly, contact the place of purchase, nearest Westermo distributor office or Westermo technical support. -
Page 8: Simplified Eu Declaration Of Conformity
Simplified EU declaration of conformity Hereby, Westermo declares that the equipment is in compliance with EU directives. The full EU declaration of conformity and other detailed information are available at the respective product page at www.westermo.com. Agency approvals and standards compliance... -
Page 9: Type Tests And Environmental Conditions
Type tests and environmental conditions Environmental phenomena Basic standard Description Test levels EN 61000-4-2 Enclosure Contact: ±6 kV Air: ±8 kV Fast transients EN 61000-4-4 Power port ±2 kV Signal ports ±2 kV Surge EN 61000-4-5 Power port Line to earth: ±2 kV Line to line: ±1 kV Signal ports Line to earth: ±2 kV... - Page 10 –40 to +74 °C (–40 to +165 °F) can be achieved with no moving parts. The units have been tested both by Westermo and external test houses to meet EMC, isolation, vibration and shock standards, all to the highest levels suitable for heavy industrial, trackside and maritime environments.
-
Page 11: Interface Specifications
Interface specifications Power Operating voltage Rated: 12 to 48 VDC Operating: 9.6 to 57.6 VDC Rated current SDW-541-F1G-T4G: 12-48 VDC; 260–65mA SDW-550-T5G: 12-48 VDC; 260–65mA Rated frequency Inrush current, I 22.7·10 s @ 48 VDC Startup current* 2 x Rated current Polarity Reverse polarity protected Redundant power input... - Page 12 Connections LED indicators Network RJ-45 connection Network fibre connection Power connection SDW-541-F1G-T4G SDW-550-T5G Available models: … SDW-541-F1G-T4G 10/100/1000Base-T/TX: 4 ports, 100/1000Base-FX: 1 port … SDW-550-T5G 10/100/1000Base-T/TX: 5 ports 6644-2240...
- Page 13 Power The SDW-500 series supports redundant power connection. The positive inputs are +DC1 and +DC2, the negative inputs for both supplies are COM. The power is drawn from the input with the highest voltage. 4-pos screw terminal Description Power +DC1 9.6–57.6 VDC...
-
Page 14: Led Indicators
Flash 12 Hz 1000 Mbit/s Half duplex (TX only) Full duplex SFP Transceivers The product supports Westermo labelled transceivers only. See Westermo's modular transceivers datasheets 100 Mbit and 1 Gbit for supported SFP transceivers. See Transceiver User Guide "6100-0000" for transceiver handling instructions. 6644-2240... -
Page 15: Installation
Installation Mounting / Removal WARNING - HAZARDOUS VOLTAGE Do not open an energized product. Hazardous voltage may occur when connected to a power supply. CAUTION - ELECTROSTATIC DISCHARGE (ESD) Removal Prevent electrostatic discharge damages to internal electronic parts by discharging your body to a grounding point (e.g. use a Press down the black support at the back of the unit, see figure. -
Page 16: Dip Switch Settings
DIP switch settings DIP-switches are accessible under the lid on top of the unit. DIP-switches are used to configure the unit. WARNING - HAZARDOUS VOLTAGE Do not open an energized product. Hazardous voltage may occur when connected to a power supply. CAUTION - ELECTROSTATIC DISCHARGE (ESD) Prevent electrostatic discharge damages to internal electronic parts by discharging your body to a grounding point (e.g. -
Page 17: Port Settings
Port settings Port 2 settings Port 1 settings Auto-negotiation enabled Auto-negotiation enabled 10/100/1000 Mbit/s speed 10/100/1000 Mbit/s speed selected selected 1 2 3 4 5 6 7 8 9 1 0 1 2 3 4 5 6 7 8 9 1 0 100 Mbit/s speed selected 100 Mbit/s speed selected 1 2 3 4 5 6 7 8 9 1 0... -
Page 18: Factory Settings
Factory settings Port mirroring settings No monitoring selected 1 2 3 4 5 6 7 8 9 1 0 Monitoring selected 1 2 3 4 5 6 7 8 9 1 0 1 2 3 4 5 6 7 8 9 1 0 1 2 3 4 5 6 7 8 9 1 0 Hub mode Flow control selected... - Page 19 6644-2240...
- Page 20 Westermo • SE-635 35 Stora Sundby, Sweden Tel +46 16 42 80 00 Fax +46 16 42 80 01 E-mail: info@westermo.com www.westermo.com REV. H 6644-2240 2021-01 Westermo Network Technologies AB, Sweden...
