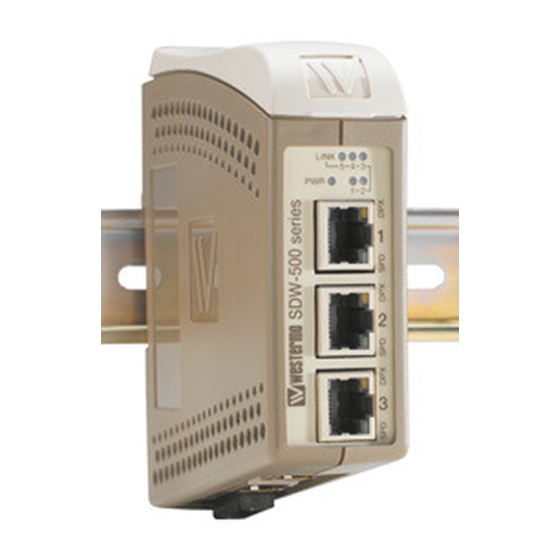

Westermo SDW-550 User Manual
Sdw-500 series, industrial ethernet 5-port switch
Hide thumbs
Also See for SDW-550:
- User manual (15 pages) ,
- User manual (23 pages) ,
- User manual (16 pages)
Related Manuals for Westermo SDW-550
Summary of Contents for Westermo SDW-550

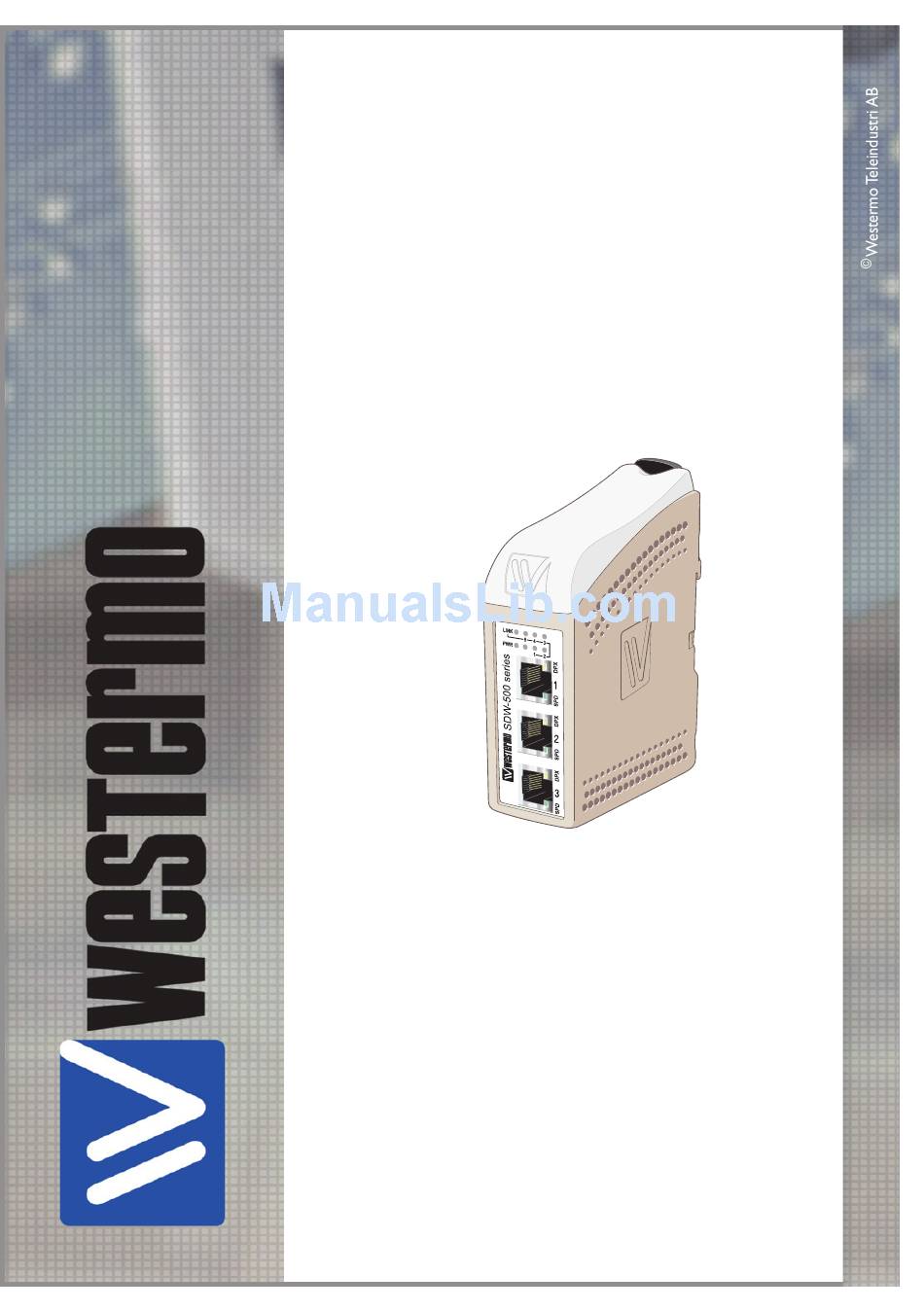

- Page 1 User Guide 6644-2214 SDW-500 Industrial Ethernet 5-port Switch www.westermo.com...
-
Page 2: Software Tools
Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused. -
Page 3: Before Installation
Do not use or store the unit in dusty, dirty areas, connectors as well as other mechanical part may be damaged. If the unit is not working properly, contact the place of purchase, nearest Westermo distributor office or Westermo Tech support. -
Page 4: Maintenance
Note. Fibre Optic Handling Fibre optic equipment needs special treatment. It is very sensitive to dust and dirt. If the fibre will be disconnected from the modem the protective hood on the transmitter/ receiver must be connected. The protective hood must be kept on during transportation. The fibre optic cable must also be handle the same way. -
Page 5: Agency Approvals And Standards Compliance
Article number, model and description Article Model Description 3644-0001 SDW-550 10/100Base-T/TX: 5 ports 3644-6001 SDW-550 E-mark 10/100Base-T/TX: 5 ports 3644-0015 SDW-550B 10/100Base-T/TX: 5 ports 3644-0019 SDW-532-MM-SC2-SM-SC15 10/100Base-T/TX: 3 ports 100Base-FX: 2 port 3644-0020 SDW-541-MM-SC2 10/100Base-T/TX: 4 ports 100Base-FX: 1 port... -
Page 6: Declaration Of Conformity
Declaration of Conformity Westermo Teleindustri AB Declaration of Conformity The manufacturer Westermo Teleindustri AB SE-640 40 Stora Sundby, Sweden Herewith declares that the product(s) Type of product Model Art no Industrial Ethernet switch SDW-500 series 3644-0001, -0002, -0005, -0015, -0019, -0020,-... -
Page 7: Environmental Conditions
TX shield Interface to all other 1.5 kV DC 1.0 kV RMS @ 50 Hz and 60 s duration Environmental Temperature, operating –25 to +70°C (SDW-550), –25 to +65°C (SDW-541) –25 to +60°C (SDW-532) Temperature, storage and transportation –25 to +70°C... - Page 8 TX port. It is also possible to set up one port to monitor traffic to/from the switch. The SDW-550 has been designed to meet high industrial specifications, providing very high dependability in harsh environmental conditions. Features: …...
-
Page 9: Interface Specifications
Interface specifications Power SDW-500 series Rated voltage 12 –48 VDC, polarity protected Operating voltage 9.6 – 57.6 VDC Rated current @12 VDC power input SDW-550 320 mA SDW-541-MM-SC2 450 mA SDW-541-MM-ST2 450 mA SDW-541-SM-LC15 450 mA SDW-541-SM-SC15 350 mA SDW-541-SM-LC40... - Page 10 Fibre connection or RJ-45 connection Power connection Available models: … SDW-550 10/100Base-T/TX: 5 ports … SDW-541 10/100Base-T/TX: 4 ports 100Base-FX: 1 port … SDW-532 10/100Base-T/TX: 3 ports 100Base-FX: 2 ports NOTE! SDW-532-MM-SC2-SM-SC15 Port 4: SC Single mode 15 km connector...
- Page 11 Power The SDW-500 series supports redundant power connection. The positive input are +VA and +VB, the negative input for both supplies are COM. 3-pos screw terminal Description Power The power is drawn from the input with the highest A: 9.6 – 57.6 VDC voltage.
-
Page 12: Led Indicators
LED indicators At power on the PWR flashes during initialising. Indicators (LED) Power (PWR) Link (LINK) of every port Speed (SPD) and duplex (DPX) of TX ports Status Indication of Internal power, initialising OK Slow flash Initialisation progressing Fast flash Initialisation error LINK No Ethernet link... -
Page 13: Dip Switch Settings Sdw-550
DIP switch settings SDW-550 DIP-switches are accessible under the lid on top of the unit. DIP-switches are used to configure the unit. Warning! Prevent damage to internal electronics from electrostatic discharges (ESD) by discharging your body to a grounding point (e.g. use of wrist strap), before the lid on top/front of the unit is removed. - Page 14 Port 1 settings Port 3 settings Auto-negotiation and Auto-negotiation and auto MDI/MDI-X disabled auto MDI/MDI-X disabled 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 Auto-negotiation and Auto-negotiation and auto MDI/MDI-X enabled auto MDI/MDI-X enabled 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 10 Mbit/s speed selected...
-
Page 15: Port Mirroring Settings
Port 5 settings Port mirroring settings Auto-negotiation and No monitoring selected auto MDI/MDI-X disabled 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 Auto-negotiation and Monitoring selected auto MDI/MDI-X enabled 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 10 Mbit/s speed selected 1 2 3 4 5 6 7 8... - Page 16 DIP switch settings SDW-541 and SDW-532 DIP-switches are accessible under the lid on top of the unit. DIP-switches are used to configure the unit. Warning! Prevent damage to internal electronics from electrostatic discharges (ESD) by discharging your body to a grounding point (e.g. use of wrist strap), before the lid on top/front of the unit is removed.
- Page 17 Port 1 settings Auto-negotiation and auto MDI/MDI-X disabled 1 2 3 4 5 6 7 8 Auto-negotiation and auto MDI/MDI-X enabled 1 2 3 4 5 6 7 8 10 Mbit/s speed selected 1 2 3 4 5 6 7 8 100 Mbit/s speed selected Port 4 settings* 1 2 3 4 5 6 7 8...
-
Page 18: Installation
Installation Mounting / Removal Before mounting or removing the unit: Prevent damage to internal electronics from electrostatic discharges (ESD) by discharging your body to a grounding point (e.g. use of wrist strap). Prevent access to hazardous voltages by disconnecting the unit from AC/DC mains supply and all other electrical connections. - Page 19 6644-2214...
-
Page 20: Sales Units
France Singapore Other Offices infos@westermo.fr sales@westermo.com.sg www.westermo.fr www.westermo.com Germany Sweden info@westermo.de info.sverige@westermo.se www.westermo.de www.westermo.se For complete contact information, please visit our website at www.westermo.com/contact or scan the QR code REV. G 6644-2214 2017-04 Westermo Teleindustri AB, Sweden...
