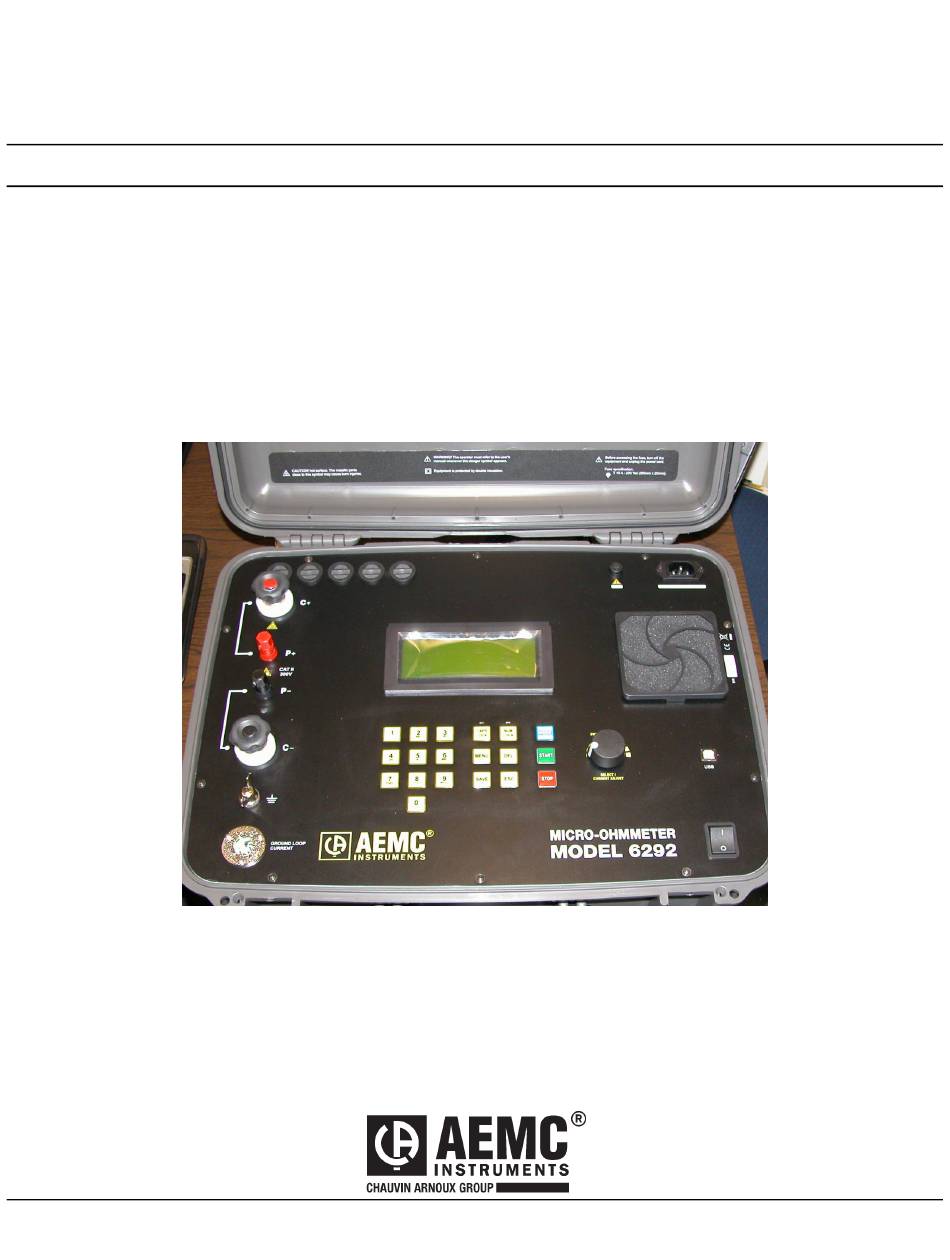

SERVICE / CALIBRATION MANUAL

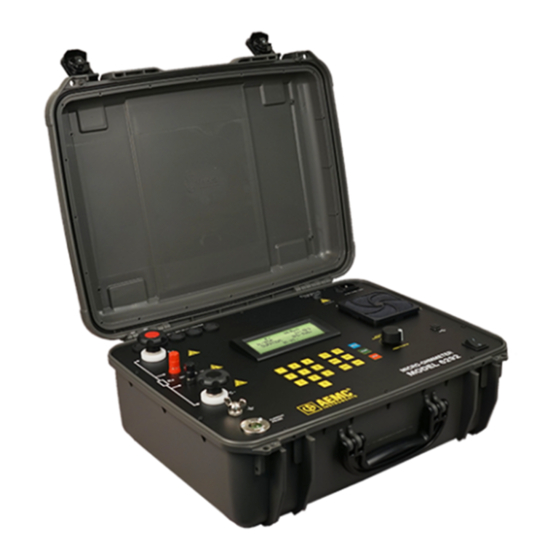

Micro-Ohmmeter
®
AEMC
Model 6292
(Cat. #2129.83)
®
®
This document is confidential property of Chauvin Arnoux
, Inc. d.b.a. AEMC
Instruments and may not be reproduced without permission.
®
AEMC
Instruments retains the right to make changes to specifications herein at any time, without notice.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AEMC 6292
Summary of Contents for AEMC 6292
- Page 1 (Cat. #2129.83) ® ® This document is confidential property of Chauvin Arnoux , Inc. d.b.a. AEMC Instruments and may not be reproduced without permission. ® AEMC Instruments retains the right to make changes to specifications herein at any time, without notice.
-
Page 2: Table Of Contents
MODEL 6292 SERVICE/CALIBRATION MANUAL CAT.# 2129.83 TABLE OF CONTENTS 1. Functional Test ............................. 3 2. Calibration Check ..........................4 Requirements ........................... 4 3. Calibration ............................. 5 Requirements ........................... 5 Entering Calibration Mode ........................ 5 Commands ............................6 Calibration Procedure ........................7 4. -
Page 3: Functional Test
MODEL 6292 SERVICE/CALIBRATION MANUAL CAT.# 2129.83 1. Functional Test It is advisable to test all the items listed in the following table. CHECKLIST ITEM STATUS Ok / Not Ok USB Interface Firmware Updating (BootLoader) Rotary switch: (Turn right, turn left, pull) Keyboard: •... -
Page 4: Calibration Check
MODEL 6292 SERVICE/CALIBRATION MANUAL CAT.# 2129.83 2. Calibration Check Requirements • One set of standard test cables • Shunt 100mVx200A (50μΩ) • Shunt 166mVx100A (166.6μΩ) • Shunt 200mVx200A (1000μΩ) • Shunt 5Vx10A (500mΩ) Check the different values from the chart below:... -
Page 5: Calibration
• Shunt 5Vx10A (500mΩ) Entering Calibration Mode 1. Connect the USB cable from the computer to the powered off AEMC 6292. 2. Launch HyperTerminal. 3. Configure HyperTerminal Com Port as shown below (same as Control Panel > Device Manager). ◦... -
Page 6: Commands
• The first line indicates the equipment has entered calibration mode. • The second line shows the test setup, which is irrelevant because in calibration mode the AEMC 6292 will always work manually for an unlimited amount of time. •... -
Page 7: Calibration Procedure
1. Put the AEMC 6292 in calibration mode (see previous procedure). 2. Setup the AEMC 6292 to perform a test using the 1000μΩ shunt. 3. Press the START key to initiate the test. 4. Type the character 'r' through HyperTerminal to see the operating range. -
Page 8: Firmware Update
HyperTerminal (or other terminal emulation program) Firmware Update Procedure 1. Connect the USB cable from computer to the powered off AEMC 6292. 2. Launch HyperTerminal. 3. Configure HyperTerminal Com Port as shown below (same as Control Panel > Device Manager). - Page 9 MODEL 6292 SERVICE/CALIBRATION MANUAL CAT.# 2129.83 7. In HyperTerminal, press the button “Call” (represented by a yellow phone) to start the connection. 8. If the connection was made successfully, the 'S' character will be displayed sequentially in HyperTerminal screen. 9. In the main menu, choose Transfer > Send File.
- Page 10 MODEL 6292 SERVICE/CALIBRATION MANUAL CAT.# 2129.83 12. Press Send to start firmware update. The following window will be displayed: 13. At the end of the firmware update, the window above will automatically be closed and the application will start in the equipment.
-
Page 11: Usb Interface Update
USB Interface Update Procedure To update the description information in the USB module, follow the steps below: 1. Connect the computer to the AEMC 6292 using an USB cable. 2. Launch the Mprog.exe. 3. In the main menu, choose File > Open, find and select the file AEMC6292.ept located in the “Template”... -
Page 12: Repair And Calibration
MODEL 6292 SERVICE/CALIBRATION MANUAL CAT.# 2129.83 Repair and Calibration To ensure that your instrument meets factory specifications, we recommend that it be submitted to our factory Service Center at one-year intervals for recalibration, or as required by other standards or internal procedures. -
Page 13: Limited Warranty
AEMC Instruments. For full and detailed warranty coverage, please read the Warranty Coverage Information, which is attached to the Warranty Registration Card (if enclosed) or is available at www.aemc.com. Please keep the Warranty Coverage Information with your records. ®... - Page 14 MODEL 6292 SERVICE/CALIBRATION MANUAL CAT.# 2129.83 ® ® Chauvin Arnoux . Inc. d.b.a. AEMC Instruments 15 Faraday Drive • Dover, NH 03820 USA Phone: (603) 749-6434 • (800) 945-2362 • Fax: (603) 742-2346 www.aemc.com ® ® This document is confidential property of Chauvin Arnoux , Inc.
