5. LEDS INDICATIONS.
PAR INICIAL ACELER. DECELER.
INIT. TORQUE ACC.
INITIAL. STARTM. HOCHLAUF RÜCKLAUF
MAX MIN MAX 2S.
MIN
LED 1 READY STATUS
It shows 230V is applied to control board.
LED 2 RUN STATUS
It blinks during acceleration and deceleration ramp.
It is steadily on after acceleration ramp when running at nominal current.
LED 3 OVERLOAD WARNING & UNDERLOAD FAULT
Blinking light:
Description Motor Underload.
Possible Cause Motor working with no load.
POWER ELECTRONICS User's Manual V2
SOBRECARGA CURVA SOBRC.
DEC. OVERLOAD O/L CURVE
ÜBERLAST ÜBERLASTKURVE
15S. 0.8xIn 1.2xIn MIN MAX

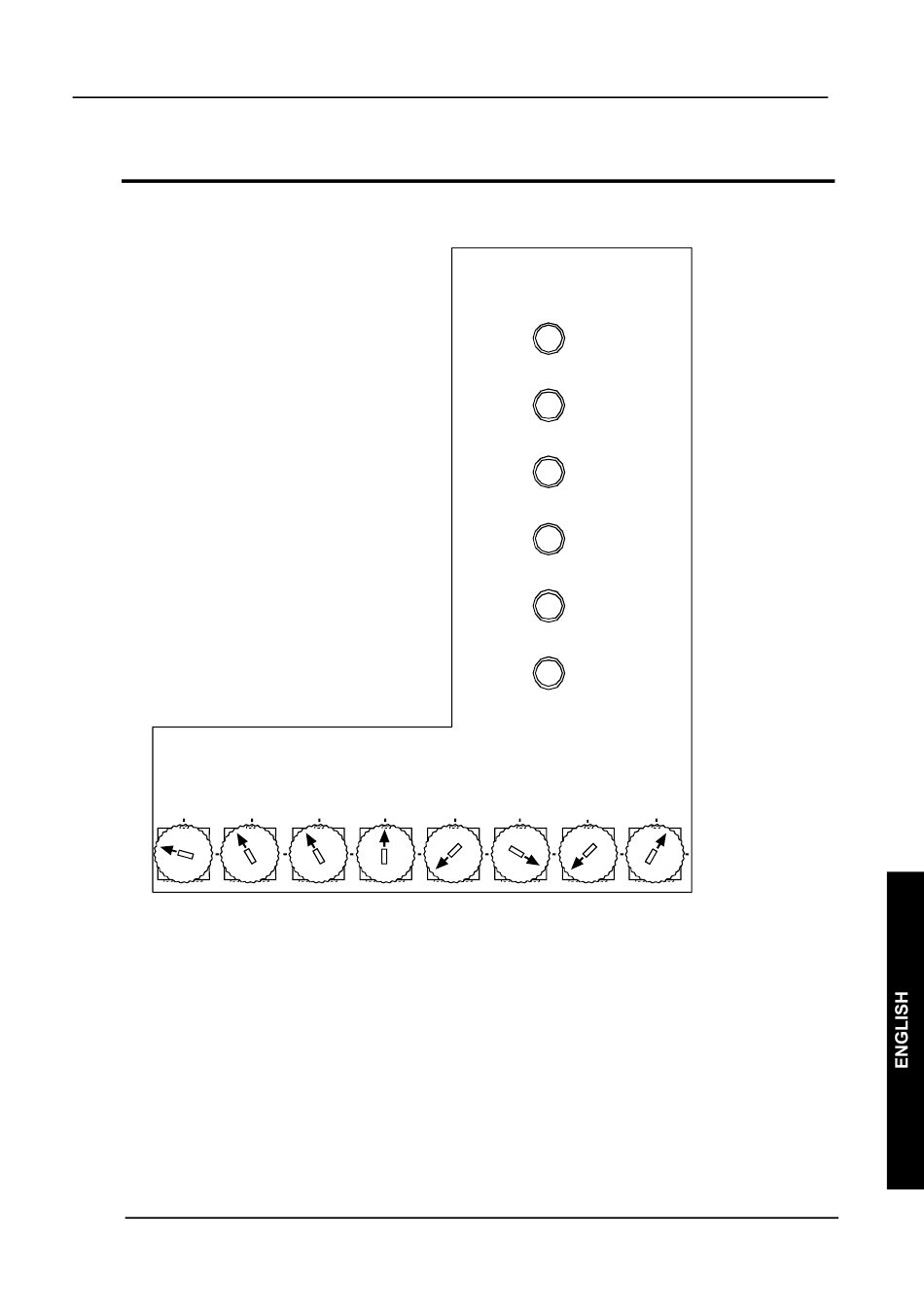

Fig. 11: Led and potentiometer PCB
UNDERLOAD FAULT
ELECTRONIC SOFT-STARTER
LED1
Ready
Listo
Fertig
LED2
Run
Marcha
Läuft
OL warning/
LED3
U L fault
A viso sobrecarga/
Fallo subcarga
Überlast Warnung/
Unterlast Fehler
LED4
Overload
Sobrecarga
Überlast
LED5
Overtemperature
Sobretemperatura
Übertemperature
LED6
General Fault
Fallo General
Fehler
SUBCARG. TIEMPO SUB. LIMITE I.
UNDERLOAD U/L TIME I. LIMIT
UNTERLAST UNTERLASTZEIT STROMBEGRENZ
0.2xIn 0.6xIn MIN MAX 1xIn
DT0039E
5xIn
V2MT01II | 15
