Phocos Any-Grid Series Recommended Battery Settings Manual page 7

For example, if three US2000 batteries are used, their continuous allowed charge current is 25 A each (75
A total) to maintain full battery warranty. Therefore, the next-lower (or same, if available) value of 70 A
will be used by the Any-Grid PSW-H in menu 02. If several PSW-H are used, then the total continuous
battery current is divided by the number if PSW-H and the next-lower charge current is used. All PSW-H
are automatically set to the same value in menu 02.
10. Once the settings have been applied, exit the settings menu by pressing
11. Check that the battery icon
connection between the Any-Grid(s) and battery racks is successfully established. This may take a few
minutes.
12. If no warnings or errors are shown, proceed to check the successful communication connection:
Press the
the screen views. The number of battery racks and battery groups are shown in the information screen view
before the "Main unit firmware version (U1)" as shown below:
Information
Battery rack and battery group
quantity
If errors or warnings are shown, consult the Any-Grid manual for details. Warning codes 60, 61, 69 and 70 are
specific to lithium battery communication functionality.
13. Activate the circuit breakers or insert the fuses to energize the various inputs and outputs on the Any-Grid in
the following order (skip any that are not connected):
a) AC input
b) PV input
c) AC output
14. If you are using more than one Any-Grid, this procedure ensures that the unit to which the Pylontech battery
is connected, will communicate with the Pylontech battery BMS. Automatically, the battery type of all other
connected Any-Grid units will be set to "User-defined", this is normal.
The commissioning and programming of the battery-related settings of the Any-Grid is now complete.
The content of this document is subject to change without notice.
Copyright © 2020 Phocos AG, all rights reserved.
Version: 20210120
Phocos AG
Magirus-Deutz-Str. 12
89077 Ulm, Germany
Phone +49 731 9380688-0
Fax +49 731 9380688-50
www.phocos.com
info@phocos.com
www.phocos.com
outline is flashing permanently to indicate the communication
or button on the Any-Grid to which the battery racks are connected to cycle through

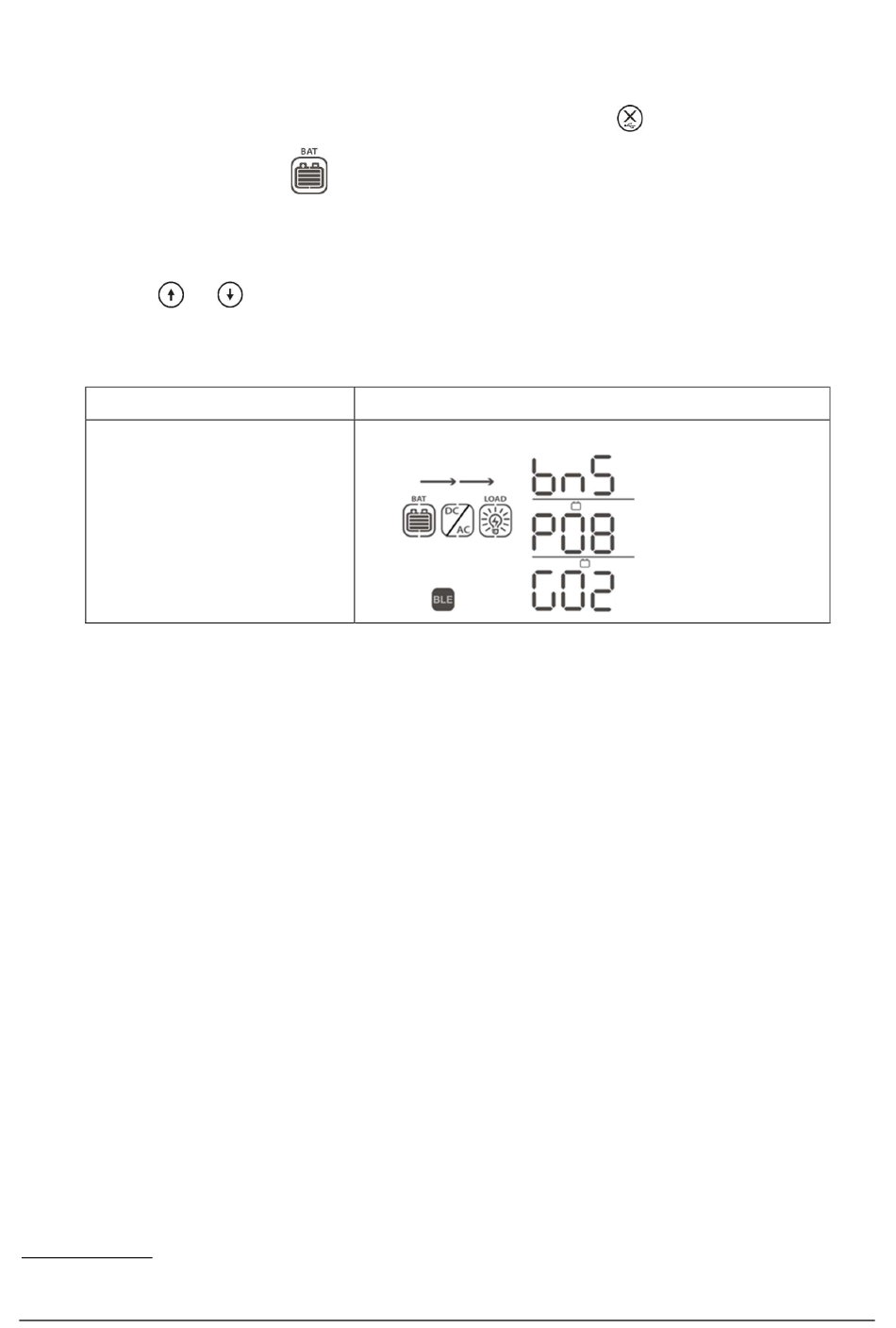

Screen View Example
