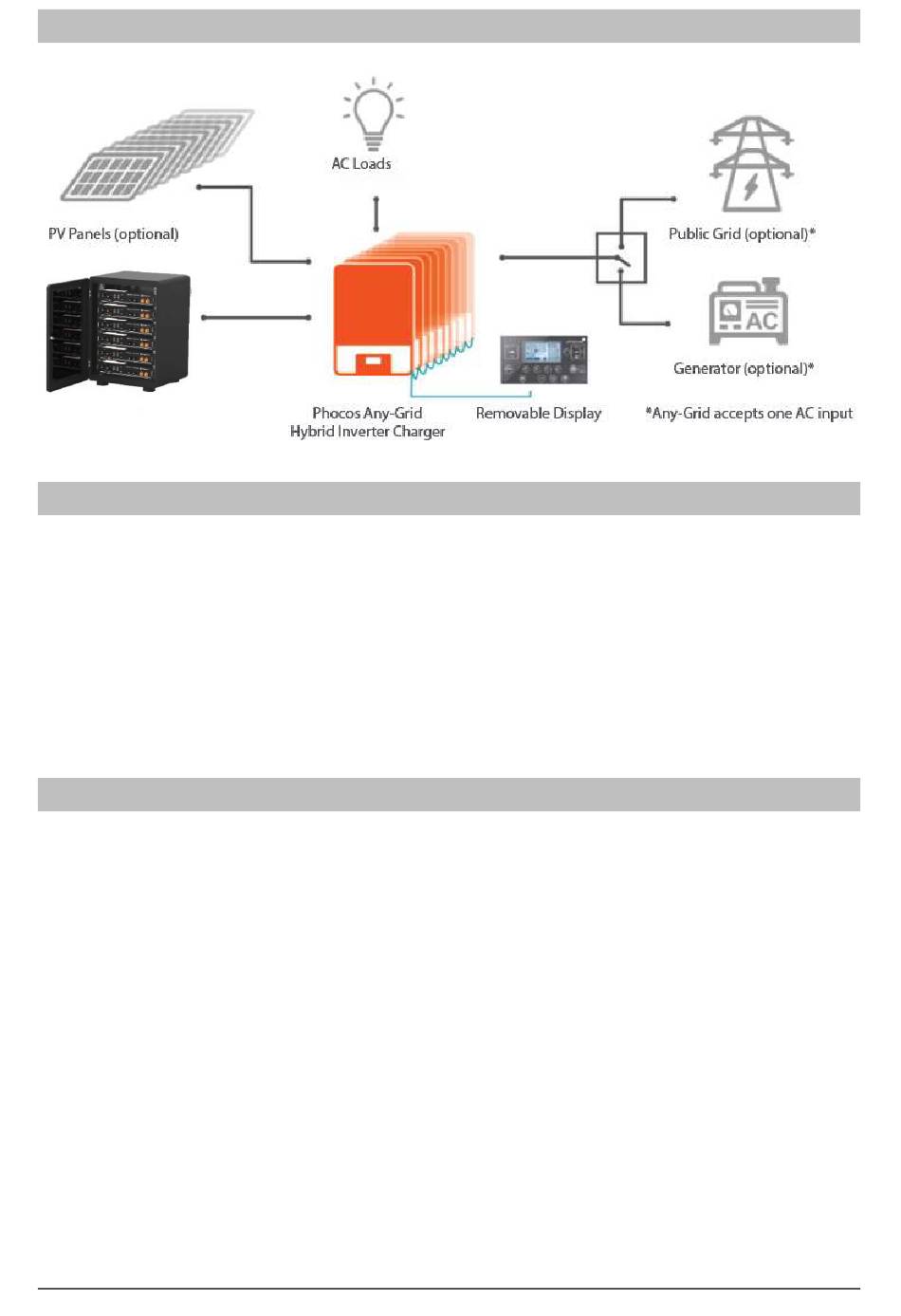

System Overview

Pylontech battery racks
4.0

Battery Sizing

To maintain the full battery warranty, each battery rack should be sized not to exceed 25 Adc (37 Adc for the
US3000(C), Force L1 and Force L2) continuous current and 100 Adc peak (105 Adc for the Force L1/L2, 200 Adc for the
US3000C). It is thus strongly recommended to use at least 5 battery racks in parallel (4 for the US3000(C), Force L1/L2)
to deliver both sufficient continuous current and peak current for a single PSW-H-5KW at full power. When using
multiple Any-Grid units, be sure to have at least 5 battery racks (4 for the US3000(C), Force L1/L2) per Any-Grid to
sustain the required currents. Using less batteries per inverter may void your Pylontech battery warranty.
The batteries must be wired in parallel to form a single large battery bank when using multiple Any-Grids. All Any-
Grids must be connected to a single battery array made up of a maximum of two clusters / groups of battery racks.
The maximum number of battery racks per group is 8 (it is not necessary to have the same number of batteries per
group).
5.0

Battery Settings and Communication Cable Installation

CAUTION: Before connecting the battery racks to the Any-Grid(s), please follow the installation instructions in
this chapter step by step. The battery, AC input source, AC output loads and PV input must remain
disconnected until instructed otherwise.
The battery settings in this chapter are recommendations only. They are intended to keep the batteries within their
operational limits. These settings can be adjusted to optimize the performance of your particular system, but must be
kept within the limits of the battery specifications. If adjustments are made, the battery type (PSW-H settings menu
05) must be set to "USE", otherwise any changes will be over-written if "PYL" is selected.
1. Purchase the PSW-H-BAT-CABLE-PYLON-2 or PSW-H-BAT-CABLE-PYLON from a Phocos dealer. This cable is
designed specifically for connecting the Any-Grid PSW-H to Pylontech battery racks.
2. Ensure the battery racks are all turned off.
