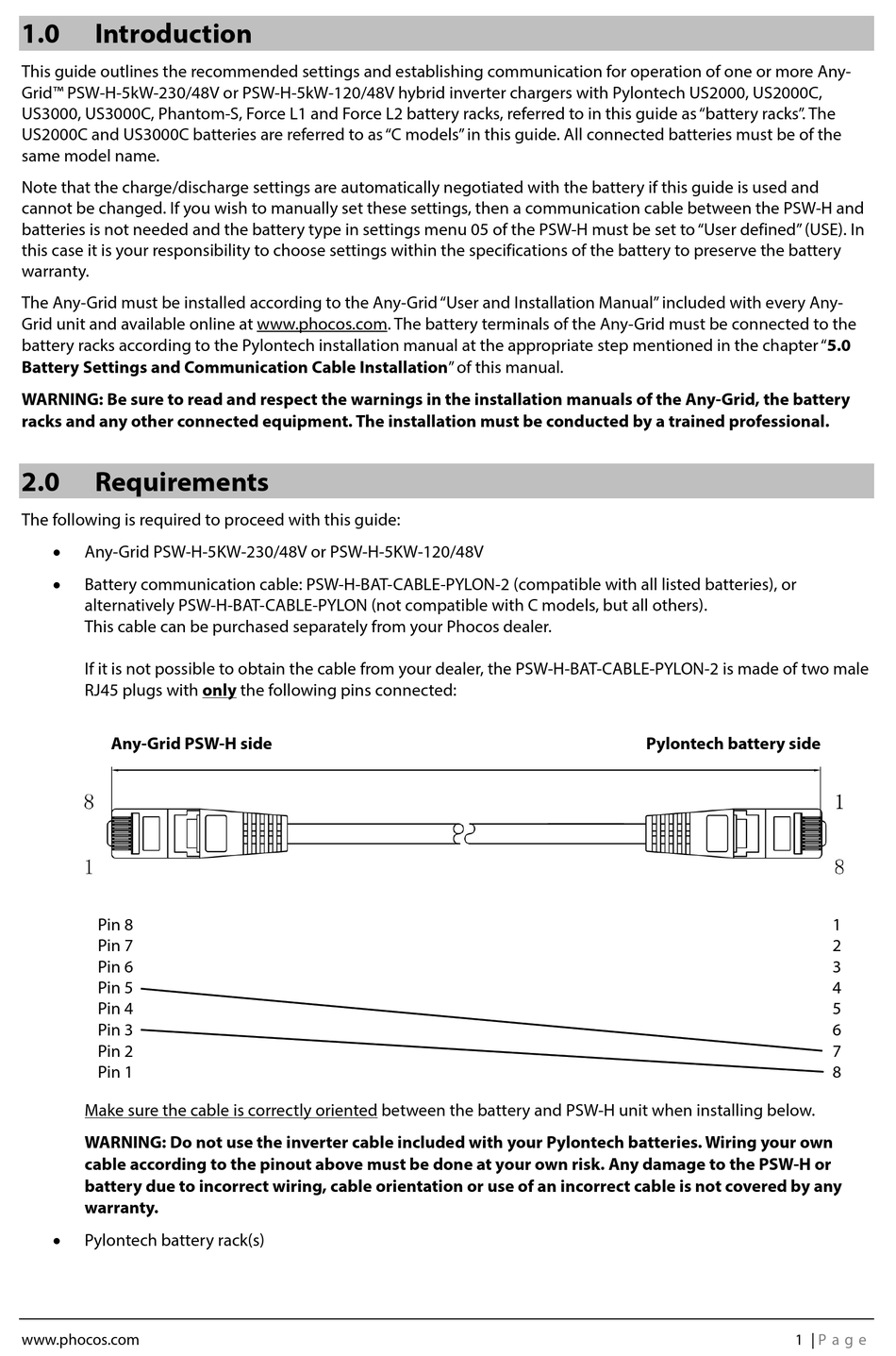

Introduction

This guide outlines the recommended settings and establishing communication for operation of one or more Any-
Grid™ PSW-H-5kW-230/48V or PSW-H-5kW-120/48V hybrid inverter chargers with Pylontech US2000, US2000C,
US3000, US3000C, Phantom-S, Force L1 and Force L2 battery racks, referred to in this guide as "battery racks". The
US2000C and US3000C batteries are referred to as "C models" in this guide. All connected batteries must be of the
same model name.
Note that the charge/discharge settings are automatically negotiated with the battery if this guide is used and
cannot be changed. If you wish to manually set these settings, then a communication cable between the PSW-H and
batteries is not needed and the battery type in settings menu 05 of the PSW-H must be set to "User defined" (USE). In
this case it is your responsibility to choose settings within the specifications of the battery to preserve the battery
warranty.
The Any-Grid must be installed according to the Any-Grid "User and Installation Manual" included with every Any-
Grid unit and available online at www.phocos.com. The battery terminals of the Any-Grid must be connected to the
battery racks according to the Pylontech installation manual at the appropriate step mentioned in the chapter "5.0
Battery Settings and Communication Cable Installation" of this manual.
WARNING: Be sure to read and respect the warnings in the installation manuals of the Any-Grid, the battery
racks and any other connected equipment. The installation must be conducted by a trained professional.
2.0

Requirements

The following is required to proceed with this guide:

Any-Grid PSW-H-5KW-230/48V or PSW-H-5KW-120/48V

Battery communication cable: PSW-H-BAT-CABLE-PYLON-2 (compatible with all listed batteries), or
alternatively PSW-H-BAT-CABLE-PYLON (not compatible with C models, but all others).
This cable can be purchased separately from your Phocos dealer.
If it is not possible to obtain the cable from your dealer, the PSW-H-BAT-CABLE-PYLON-2 is made of two male
RJ45 plugs with only the following pins connected:
Any-Grid PSW-H side
Pin 8
Pin 7
Pin 6
Pin 5
Pin 4
Pin 3
Pin 2
Pin 1
Make sure the cable is correctly oriented between the battery and PSW-H unit when installing below.
WARNING: Do not use the inverter cable included with your Pylontech batteries. Wiring your own
cable according to the pinout above must be done at your own risk. Any damage to the PSW-H or
battery due to incorrect wiring, cable orientation or use of an incorrect cable is not covered by any
warranty.

Pylontech battery rack(s)
www.phocos.com
Pylontech battery side
1 |
1
2
3
4
5
6
7
8
