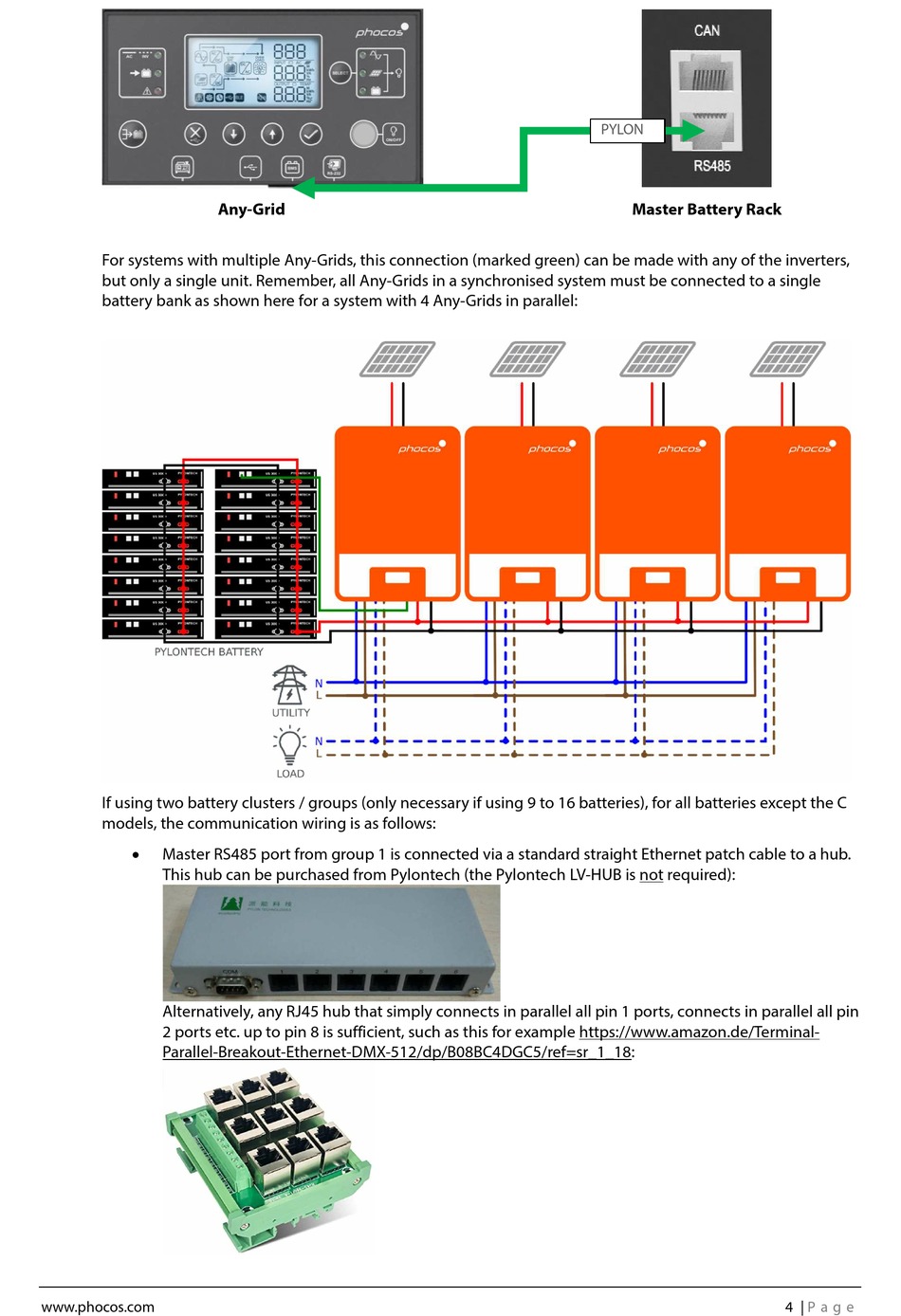

For systems with multiple Any-Grids, this connection (marked green) can be made with any of the inverters,
but only a single unit. Remember, all Any-Grids in a synchronised system must be connected to a single
battery bank as shown here for a system with 4 Any-Grids in parallel:
If using two battery clusters / groups (only necessary if using 9 to 16 batteries), for all batteries except the C
models, the communication wiring is as follows:

Master RS485 port from group 1 is connected via a standard straight Ethernet patch cable to a hub.
This hub can be purchased from Pylontech (the Pylontech LV-HUB is not required):
Alternatively, any RJ45 hub that simply connects in parallel all pin 1 ports, connects in parallel all pin
2 ports etc. up to pin 8 is sufficient, such as this for example https://www.amazon.de/Terminal-
Parallel-Breakout-Ethernet-DMX-512/dp/B08BC4DGC5/ref=sr_1_18:
