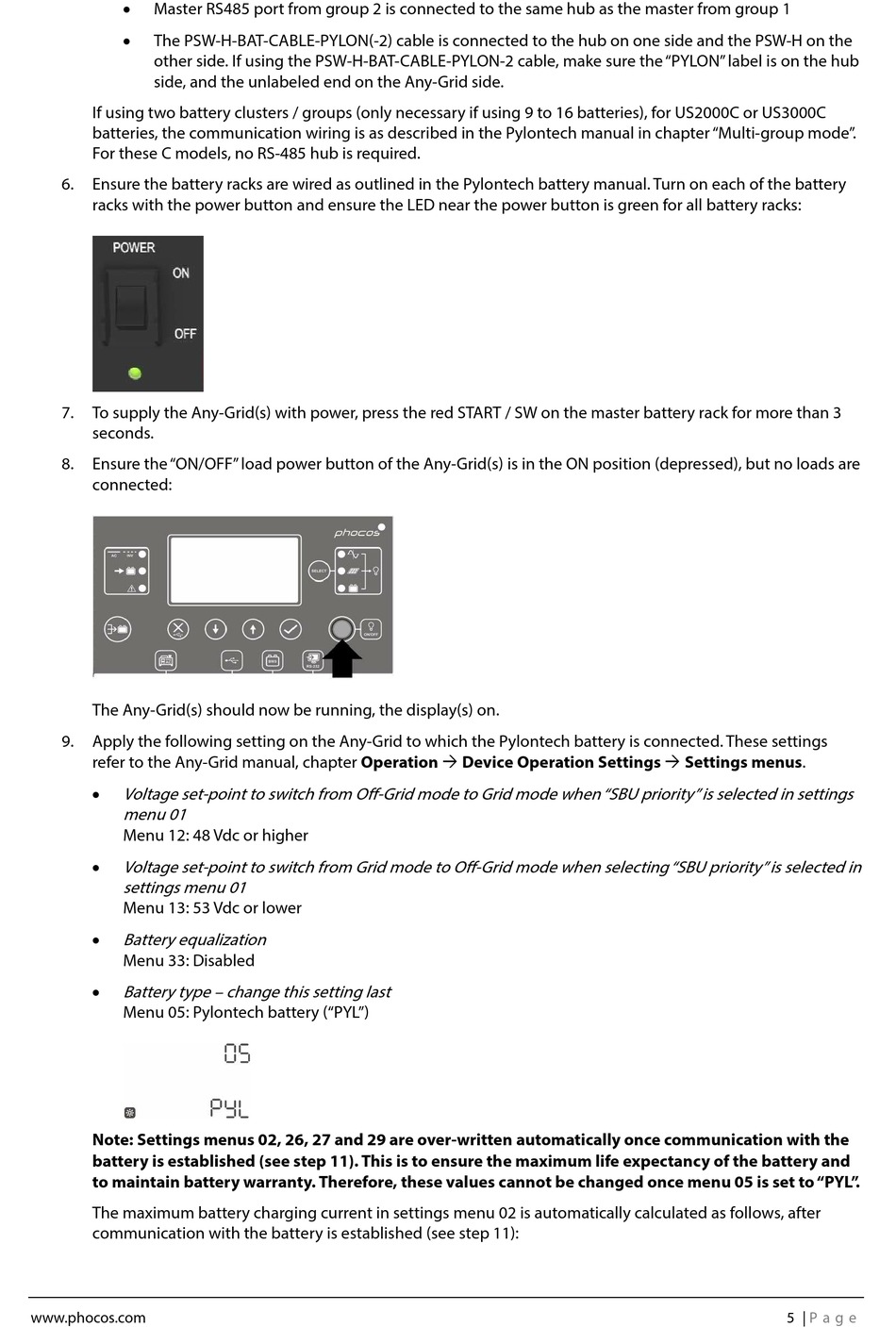

Phocos Any-Grid Series Recommended Battery Settings Manual page 6


Master RS485 port from group 2 is connected to the same hub as the master from group 1

The PSW-H-BAT-CABLE-PYLON(-2) cable is connected to the hub on one side and the PSW-H on the
other side. If using the PSW-H-BAT-CABLE-PYLON-2 cable, make sure the "PYLON" label is on the hub
side, and the unlabeled end on the Any-Grid side.
If using two battery clusters / groups (only necessary if using 9 to 16 batteries), for US2000C or US3000C
batteries, the communication wiring is as described in the Pylontech manual in chapter "Multi-group mode".
For these C models, no RS-485 hub is required.
6. Ensure the battery racks are wired as outlined in the Pylontech battery manual. Turn on each of the battery
racks with the power button and ensure the LED near the power button is green for all battery racks:
7. To supply the Any-Grid(s) with power, press the red START / SW on the master battery rack for more than 3
seconds.
8. Ensure the "ON/OFF" load power button of the Any-Grid(s) is in the ON position (depressed), but no loads are
connected:
The Any-Grid(s) should now be running, the display(s) on.
9. Apply the following setting on the Any-Grid to which the Pylontech battery is connected. These settings
refer to the Any-Grid manual, chapter Operation  Device Operation Settings  Settings menus.

Voltage set-point to switch from Off-Grid mode to Grid mode when "SBU priority" is selected in settings
menu 01
Menu 12: 48 Vdc or higher

Voltage set-point to switch from Grid mode to Off-Grid mode when selecting "SBU priority" is selected in
settings menu 01
Menu 13: 53 Vdc or lower

Battery equalization
Menu 33: Disabled

Battery type – change this setting last
Menu 05: Pylontech battery ("PYL")
Note: Settings menus 02, 26, 27 and 29 are over-written automatically once communication with the
battery is established (see step 11). This is to ensure the maximum life expectancy of the battery and
to maintain battery warranty. Therefore, these values cannot be changed once menu 05 is set to "PYL".
The maximum battery charging current in settings menu 02 is automatically calculated as follows, after
communication with the battery is established (see step 11):
