EVAL-ADUCM420QSP1Z
LIBRARY AND PROJECT OPTIONS FOR ADUCM420
IN KEIL µVISION5
The Keil µVision5 project files are placed in the Arm folder for
each example program. For example, C:\Analog Devices\
ADuCM420\examples\M420_Adc\ARM\M420_Adc.uvporjx
is the file that is opened by Keil. By clicking the Manage Run-
Time Environment icon from the Keil settings menu (see
Figure 9), users can select the components needed from
Peripheral Libraries in their project, as shown in Figure 11.

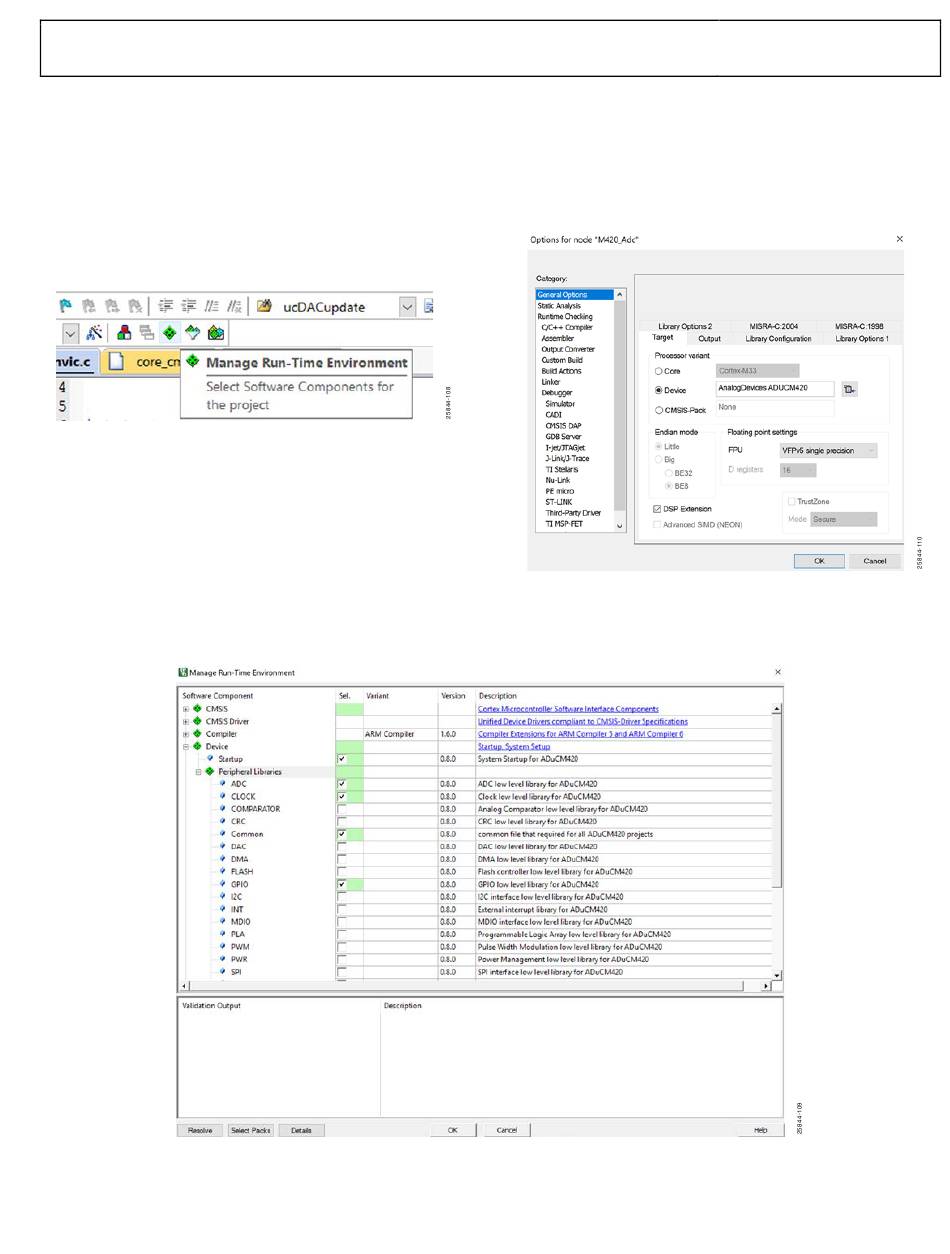

Figure 9. Manage Run-Time Environment Icon
IAR IDE PROJECT SETTINGS
It is recommended for first time users to open an example project
from the examples folder. For instance, the M420_Adc.eww file
is the IAR Embedded Workbench® project file for the ADC
example, and it can be opened from the C:\Analog Devices\
ADuCM420\examples\M420_Adc\IAR\ folder.
Opening an example file allows compilation, programming, and
debugging without any configuration changes from the user.
User Guide
Figure 11. Peripheral Libraries
Rev. 0 | Page 9 of 20
If creating a new IAR-based project, the following steps must be
completed to run the
ADuCM420
1.
From the Project menu, select Options.
2.
Click the General Options category, and ensure the
selected device is Analog Devices ADuCM420 under the
Target tab.
Figure 10. IAR Project Setting
UG-1926
example programs properly:
