Analog Devices EVAL-ADuCM420QSP1Z Getting Started Tutorial page 14

UG-1926
3. After setting the Floating point settings options, run the
FPU example program. Running the debug mode causes
the Output section in the Terminal I/O window to display
fractional values of the variables, as shown in Figure 27.
Running the Keil FPU Program
Perform the following steps before running the FPU example
program from the Keil IDE (included on the
installer).
1. After opening the Keil IDE, click the Flash dropdown
menu, and select the Configure Flash Tools option (see
Figure 26).
ADuCM420

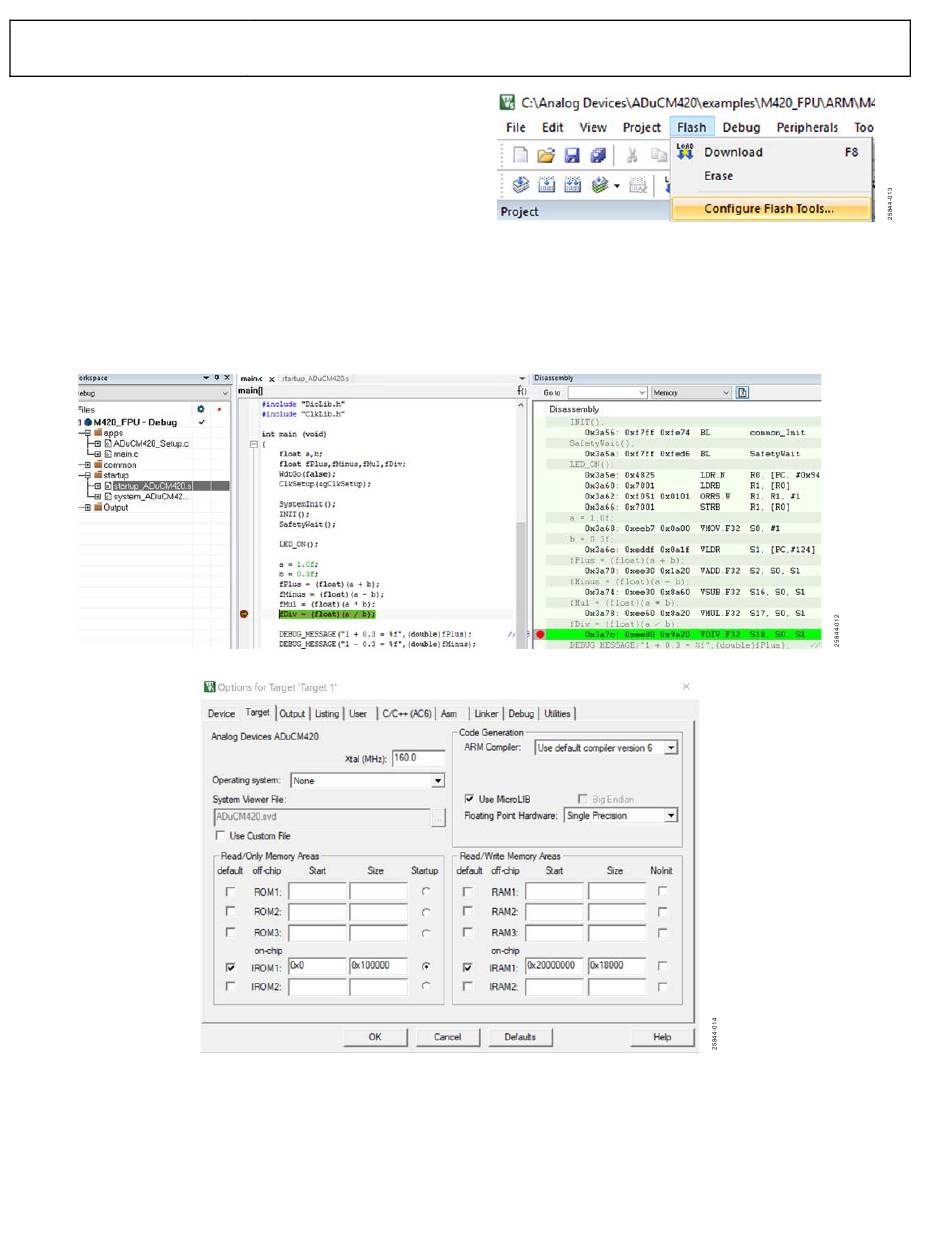

Figure 27. IAR FPU Example Program Output
Figure 28. Keil General Options
Rev. 0 | Page 14 of 20
EVAL-ADUCM420QSP1Z
Figure 26. Keil Flash Dropdown Menu Options
2. Selecting the Configure Flash Tools option opens the
window shown in Figure 28. Click the Target tab, and
ensure the Floating Point Hardware dropdown box is set
to the Single Precision option, as shown in Figure 28.
User Guide
