Condumax II Transportable
Sampling System User's Manual
The gas handling components are as follows:
Coalescing Filter (F1)
Pressure Gauge (PG1)
Pressure Regulator (PR1)
Non-return valve (NRV1)
Metering Valve (MV1)
Flowmeter (FM1)
Needle Valve (NV1)
PR1 Adjustment -
Remove cap. Adjust with 4mm
hex key.
AC Power
gland entry
PR1
PG1
F1
Michell Instruments
Provides protection of the moisture sensor within the
Condumax II instrument.
Provides indication of sample gas inlet pressure.
Allows the user to manually set the sample gas analysis
pressure for hydrocarbon dew-point measurement.
Provides system protection from back pressure of vent
gas when sample gas is not fl owing.
Allows the user to manually set the sample gas fl ow rate
across the dew-point sensors.
Provides indication of the sample gas fl ow rate across
the dew-point sensors.
Allows the user to manually control the bypass fl ow rate
across the coalescing fi lter.
NV1
Sample inlet
Filter Bypass/
Drain outlet

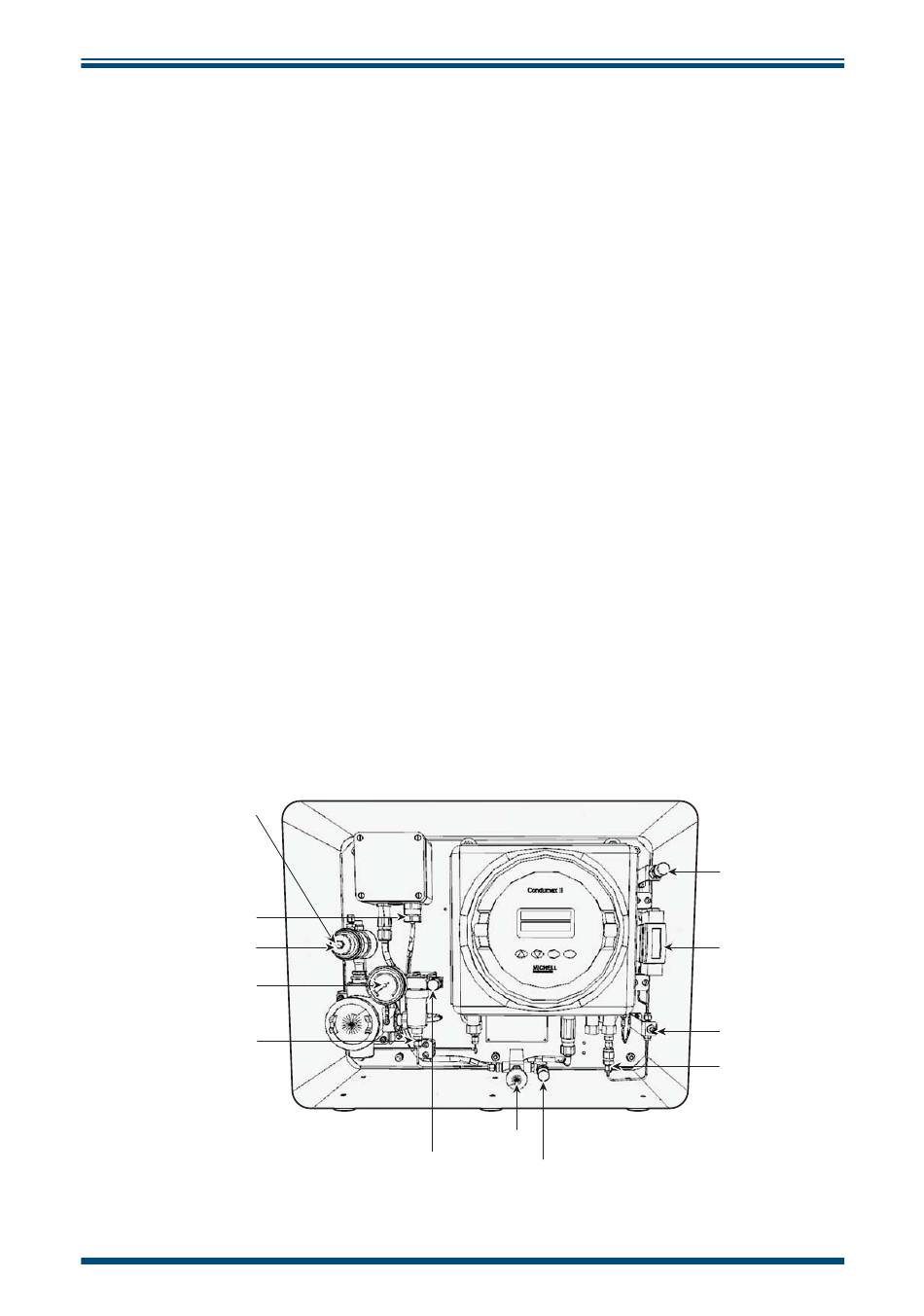

Figure 2 Components
INTRODUCTION
Sample outlet
FM1
MV1
NRV1
3
