Condumax II Transportable
Sampling System User's Manual
3.1
Sample Flow Start Up Procedure
1.
Unscrew and remove the Condumax II fl ameproof enclosure cover after
fi rst loosening the hex grub screw.
2.
The user interface/display assembly uses two ¼-turn bayonet style
fasteners, (fi nger operated), to secure it - turn clockwise to lock, counter-
clockwise to release. The display must be supported once it is removed
from the fasteners. The right hand fastener can be positioned to the left
hand mount, as shown below.
3.
Locate the solenoid valve and the manual override operating adjuster
(brass screw handle) mounted on the base of the solenoid valve body.
Michell Instruments

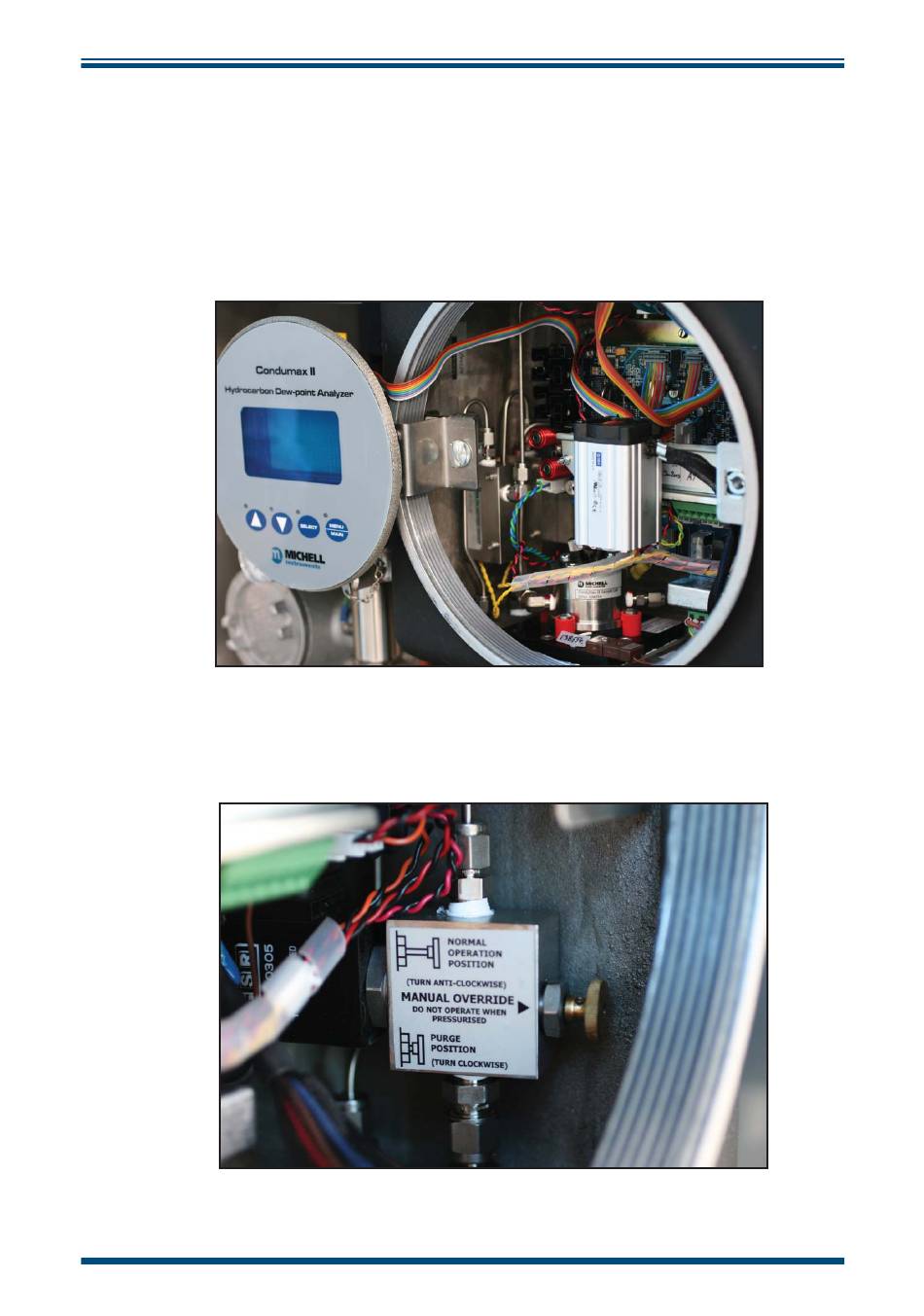

Figure 6
Removal of Interface/Display
Figure 7
Solenoid Valve Location
OPERATION
7
