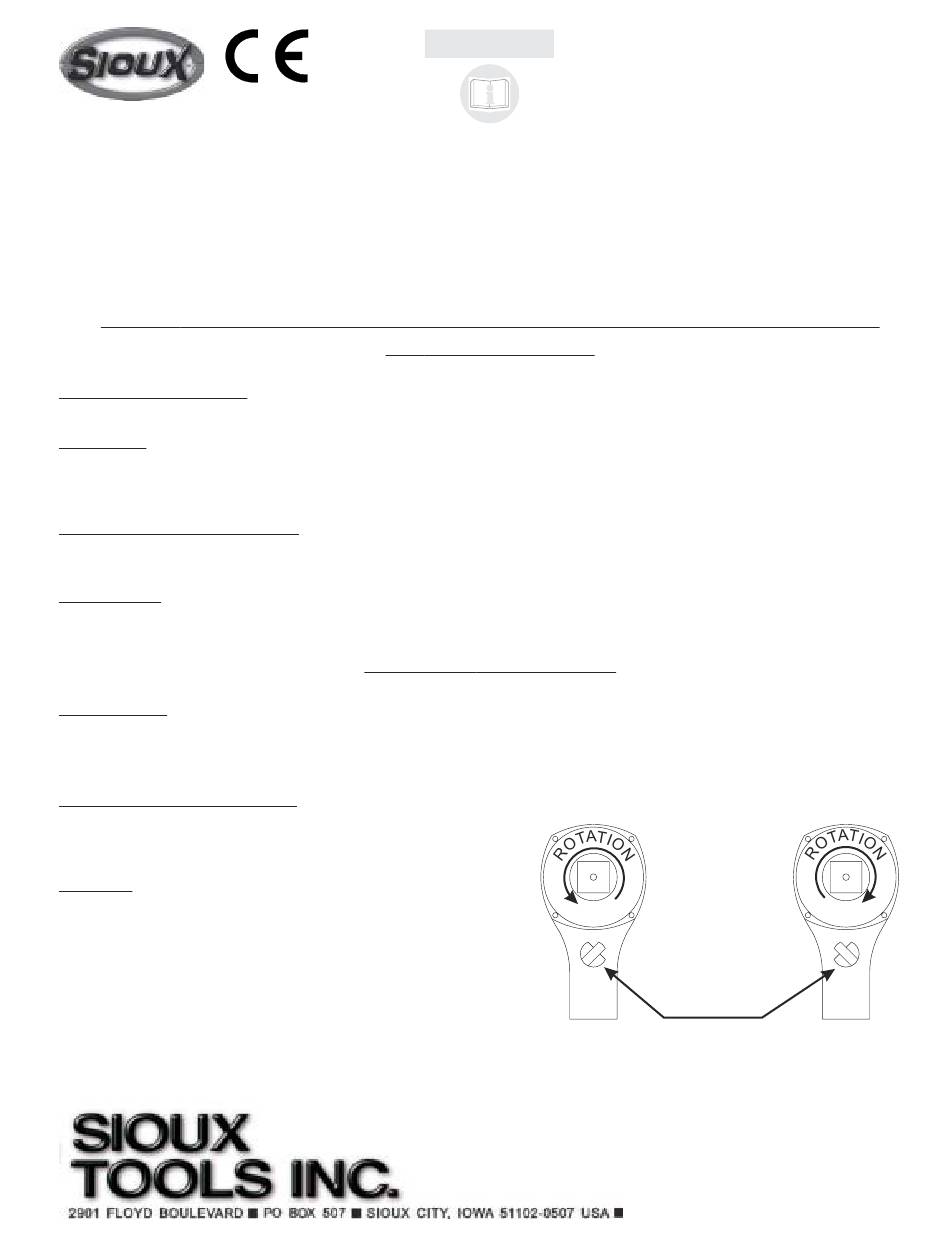

INSTRUCTIONS AND PARTS LIST FOR
SIOUX AIR IMPACT WRENCH IW75AP-6H, IW75AP-8H, &
Read and understand "Safety Instructions For Air Tools" and these instructions before operating this tool.
OPERATING INSTRUCTIONS FOR IW75AP-6H, IW75AP-8H, & IW75AP-4S
FORESEEN USE OF TOOL
Impact wrenches should only be used to install and remove threaded fasteners.
AIR SUPPLY
The efficiency of the tool is dependent on the proper supply of clean dry air at 90 psig (6.2 bar). The use of a line filter, pressure regulator,
and lubricator will insure maximum output and life of tools. Before connecting tool, blow out the air line to remove water and dirt which may
have accumulated.
HOSE AND HOSE CONNECTIONS
Supply hose should be not less than 3/8" (10 mm) I.D. Extension hoses should be at least 1/2" (13 mm) I.D. Use couplings and fittings with
at least 1/2" (13 mm) I.D. When using quick couplers, install a 6 ft (2 m) leader hose between tool and quick couplers.
LUBRICATION
Use SIOUX No. 288 air motor oil. An airline lubricator, set to deliver 1 to 2 drops per minute, is recommended. If a lubricator is not used,
add .06 oz. (1.8 cc, 18 to 22 drops) of oil into the air inlet once daily.
MAINTENANCE
Disassemble, clean, and inspect the impact mechanism every two months. Coat all impact surfaces, splines and mating surfaces with
Sioux Catalog No. 1205-04Z grease and reassemble.
Inspect the tool daily for loose or missing fasteners. Tight all loose fasteners and replace all missing fasteners immediately.
REVERSING SPINDLE ROTATION
The direction of the spindle rotation is controlled with the revering lever
located in the front of the motor housing, above the trigger. Refer to
illustration for spindle rotation vs. reveres lever position.
SOCKETS
Use only impact sockets in good shape.
Use deep impact socket impact rather than extension bars.
E N G L I S H
IW75AP-4S
(STARTING WITH SERIAL "A")
IMPACT WRENCHS
GENERAL OPERATION
1
Form ZCE675
Date 10-01/B
Page 1 of 18
REVERSE LEVER
POSITION
Printed In U.S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IW75AP-6H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sioux Tools IW75AP-6H

Summary of Contents for Sioux Tools IW75AP-6H

  • Page 1 Form ZCE675 Date 10-01/B Page 1 of 18 INSTRUCTIONS AND PARTS LIST FOR SIOUX AIR IMPACT WRENCH IW75AP-6H, IW75AP-8H, & IW75AP-4S (STARTING WITH SERIAL “A”) Read and understand "Safety Instructions For Air Tools" and these instructions before operating this tool.

  • Page 2: Declaration Of Conformity

    *per ISO 8662 DECLARATION OF CONFORMITY We, Sioux Tools Inc., 2901 Floyd Boulevard, P.O. Box 507, Sioux City Iowa, 51102, USA, declare under our sole responsibility that the products IW75AP-6H, IW75AP-8H, & IW75AP-4S to which this declaration relates are in conformity with the following standard or standards or other normative document or documents: EN 792, EN 292 Parts 1&2, ISO 8662, Pneurop PN8NTC1...

  • Page 3: Allgemeiner Gebrauch

    (BEGINNEND MIT SERIE “A”) Vor dem Betrieb dieses Werkzeugs lesen Sie bitte diese Anweisungen und die “Sicherheitsanweisungen für Druckluftwerkzeuge”. BEDIENUNGSANLEITUNG FÜR DIE SCHLAGSCHRAUBER IW75AP-6H, IW75AP-8H, & IW75AP-4S VORGESEHENER ANWENDUNGSBEREICH DES WERKZEUGS Schlagschrauber dürfen nur zum Anbringen und Entfernen von Gewinde-Befestigungselementen eingesetzt werden.
  • Page 4 *per ISO 8662 KONFORMITÄTSERKLÄRUNG Wir, Sioux Tools, Inc., 2901 Floyd Boulevard, P.O. Box 507, Sioux City, Iowa, 51102, USA, erklären hiermit alleinverantwortlich, daß die Produkte IW75AP-6H, IW75AP-8H, & IW75AP-4S auf die sich diese Erklärung bezieht, mit den Anforderungen der folgenden Standards oder Normen oder Dokumenten übereinstimmen: EN 792, EN 292 Teile 1&2, ISO 8662, Pneurop PN8NTC1...

  • Page 5: Funcionamiento General

    E S PA N O L INSTRUCCIONES DE SEGURIDAD PARA LLAVES DE IMPACTO IW75AP-6H, IW75AP-8H, & IW75AP-4S DE SIOUX TOOLS (COMENZANDO CON LA SERIE “A”) Lea y entienda las "Instrucciones de seguridad para herramientas neumáticas" y estas instrucciones antes de operar esta herramienta.
  • Page 6 *según PN8NTC1 *según ISO 8662 DECLARACION DE CONFORMIDAD Nosotros, Sioux Tools, Inc., 2901 Floyd Boulevard, P.O. Box 507, Sioux City, Iowa, 51102, USA, declaramos bajo nuestra única responsabilidad que los productos IW75AP-6H, IW75AP-8H, & IW75AP-4S con los cuales se relaciona esta declaración están en conformidad con las siguiente(s) norma(s) u otro(s) documento(s) normativo(s): EN 792, EN 292 Partes 1&2, ISO 8662, Pneurop PN8NTC1...

  • Page 7: Uso Generale

    I TA L I A N O ISTRUZIONI ED ELENCO RICAMBI PER ATTREZZI PNEUMA- TICI AD IMPATTO SIOUX IW75AP-6H, IW75AP-8H, & IW75AP-4S (SERIE INIZIANTE CON LA LETTERA “A”) Leggere attentamente le “Istruzioni per l’uso sicuro di apparecchiature pneumatiche” e le seguenti avvertenze prima di utilizzare il presente apparecchio.
  • Page 8 *secondo PN8NTC1 *secondo ISO 8662 CERTIFICAZIONE DI CONFORMITA La Sioux Tools, Inc, con sede al 2901 Floyd Boulevard, P.O. Box 507, di Sioux City, Iowa, USA, solennemente dichiara sotto la propria e sola responsabilità che i prodotti IW75AP-6H, IW75AP-8H, & IW75AP-4S...

  • Page 9: Fonctionnement General

    F R A N C A I S INSTRUCTIONS ET LISTE DE PIÈCES POUR CLÉS PNEUMA- TIQUES À CHOCS SIOUX RÉF. IW75AP-6H, IW75AP-8H, & IW75AP-4S (COMMENÇANT PAR LA SÉRIE A) Lisez avec attention les “Instructions de mise en garde lors de l’utilisation d’outils pneumatiques”...
  • Page 10 ISO 8662 DÉCLARATION DE CONFORMITÉ La société Sioux Tools, Inc., située à : 2901 Floyd Boulevard, P.O. Box 507, Sioux City, Iowa, 51102, USA, affirme que les produits IW75AP-6H, IW75AP-8H, & IW75AP-4S dont cette fiche fait l’objet, sont conformes aux normes, documents normatifs et autres références :...

  • Page 11: Algemeen Gebruik

    N E T H E R L A N D S INSTRUCTIES EN ONDERDELEN VOOR DE SIOUX PERS- LUCHTSLEUTEL NR. IW75AP-6H, IW75AP-8H, & IW75AP-4S (BEGIN MET SERIE “A”) Voordat u met de machine aan de slag gaat, moet u deze instructies en de “Veiligheids- voorschriften voor persluchtmachines”...
  • Page 12 *conform PN8NTC1 *conform ISO 8662 CONFORMITEITSVERKLARING Ondergetekende, Sioux Tools, Inc., 2901 Floyd Boulevard, P.O. Box 507, Sioux City, Iowa, 51102, USA, verklaart met inachtneming van de eigen aansprakelijkheid desbetreffend, dat de produkten IW75AP-6H, IW75AP-8H, & IW75AP-4S waarop deze verklaring van toepassing is, conform zijn met de hierna genoemde norm, normen en/of andere regels en voorschriften:...
  • Page 13 S W E D I S H ANVISNINGAR OCH ARTIKELLISTA FÖR SIOUX LUFTSLAG- NYCKLAR Nr. IW75AP-6H, IW75AP-8H, & IW75AP-4S (STARTAR MED SERIE “A”) Läs och sätt dig in “Säkerhetsföreskrifter för tryckluftsverktyg” samt dessa anvisningar innan du använder detta verktyg. DRIFTANVISNINGAR FÖR IW75AP-6H, IW75AP-8H, & IW75AP-4S SLÅENDE SKRUVDRAGARE...

  • Page 14: Försäkran Om Överensstämmelse

    *enligt ISO 8662 FÖRSÄKRAN OM ÖVERENSSTÄMMELSE Vi, Sioux Tools, Inc., 2901 Floyd Boulevard, P.O. Box 507, Sioux City, Iowa, 51102, USA, förklarar under eget ansvar att produkterna IW75AP-6H, IW75AP-8H, & IW75AP-4S som denna försäkran gäller uppfyller följande standard eller standarder eller andra normgivande dokument:...
  • Page 15 notes...
  • Page 17 IW75AP-4S #4 SPLINE DRIVE IMPACT WRENCH Fig. Part Fig. Part Description Description 1. 602137 3/4" Sq Std Drive Anvil (IW75AP-6H) 26. 602101 Upper End Plate 602136 1" Sq. Std Drive Anvil (IW75AP-8H) 27. 602031 Bearing 602294 #4 Spline Drive Anvil (IW75AP-4S) 28.
  • Page 18 Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Der durch Elektrosanden, -sägen, -schleifen und -bohren sowie durch andere Bauarbeiten anfallende Staub enthält Chemikalien, die nachweislich Krebs sowie Geburts- bzw. andere Fortpflanzungsschäden hervorrufen.
