Sioux Tools 2 1/2 Series Instructions Manual

Read and understand "Safety Instructions For Air Tools" and these instructions before operat-
AIR SUPPLY
The efficiency of the tool is dependent on the proper supply of clean dry air at 90 psig (6.2 bar). The use of a line filter, pressure regulator,
and lubricator will insure maximum output and life of tools. Before connecting tool, blow out the air line to remove water and dirt which may
have accumulated.
HOSE AND HOSE CONNECTIONS
Supply hose should be not less than 3/8" (10mm) I.D. Extension hoses should be at least 1/2" (13mm) I.D. Use couplings and fittings with at
least 3/8" (10mm) I.D.
LUBRICATION
Use SIOUX No. 288 air motor oil. An airline lubricator, set to deliver 2 to 4 drops per minute, is recommended. If a lubricator is not used, add
.04 oz. (1.2cc, 12 to 15 drops) of oil into the air inlet twice daily.
Lubricate the gearing every 100 hours of operation with SIOUX No. 289A grease.
Lubricate the angle head with SIOUX 1232A grease after every 40 hours of operation.
Lubricate positive and adjustable clutches every 40 hours with SIOUX No. 1232A grease.
GENERAL OPERATION
The air motor is started by depressing the operating lever or trigger. Motor speed may be controlled by adjusting the slotted head control
which is located on the tool housing or on some models on the trigger surface.
On reversing tools, the direction of spindle rotation is controlled by the reversing button. When the button is depressed, the spindle
rotates counterclockwise. Always depress the button fully to obtain full power. The reversing button on some models can be
locked in the reverse direction by fully depressing and rotating the button clockwise.
Clutch Operation Information
Screw Drivers And Nut Runners
STALL DRIVE ........................................... Spindle turns with motor. Motor stalls when fastener is tight.
DIRECT CLUTCH ...................................... Spindle doesn't turn with motor. Pressure on spindle engages straight jaws to turn
POSITIVE CLUTCH-ANGULAR JAW ........ Spindle doesn't turn with motor. Pressure on spindle engages angular jaws to turn
POSITIVE CLUTCH ROLLER JAWS ........ Similar to angular jaw except 4 rollers engage angular teeth. Ratchets faster and blow
ADJUSTABLE CLUTCH ............................ Spindle doesn't turn with motor. Pressure on spindle engages the clutch, causing the
Adjustment of Adjustable Clutch
ABOVE 25 INCH POUNDS

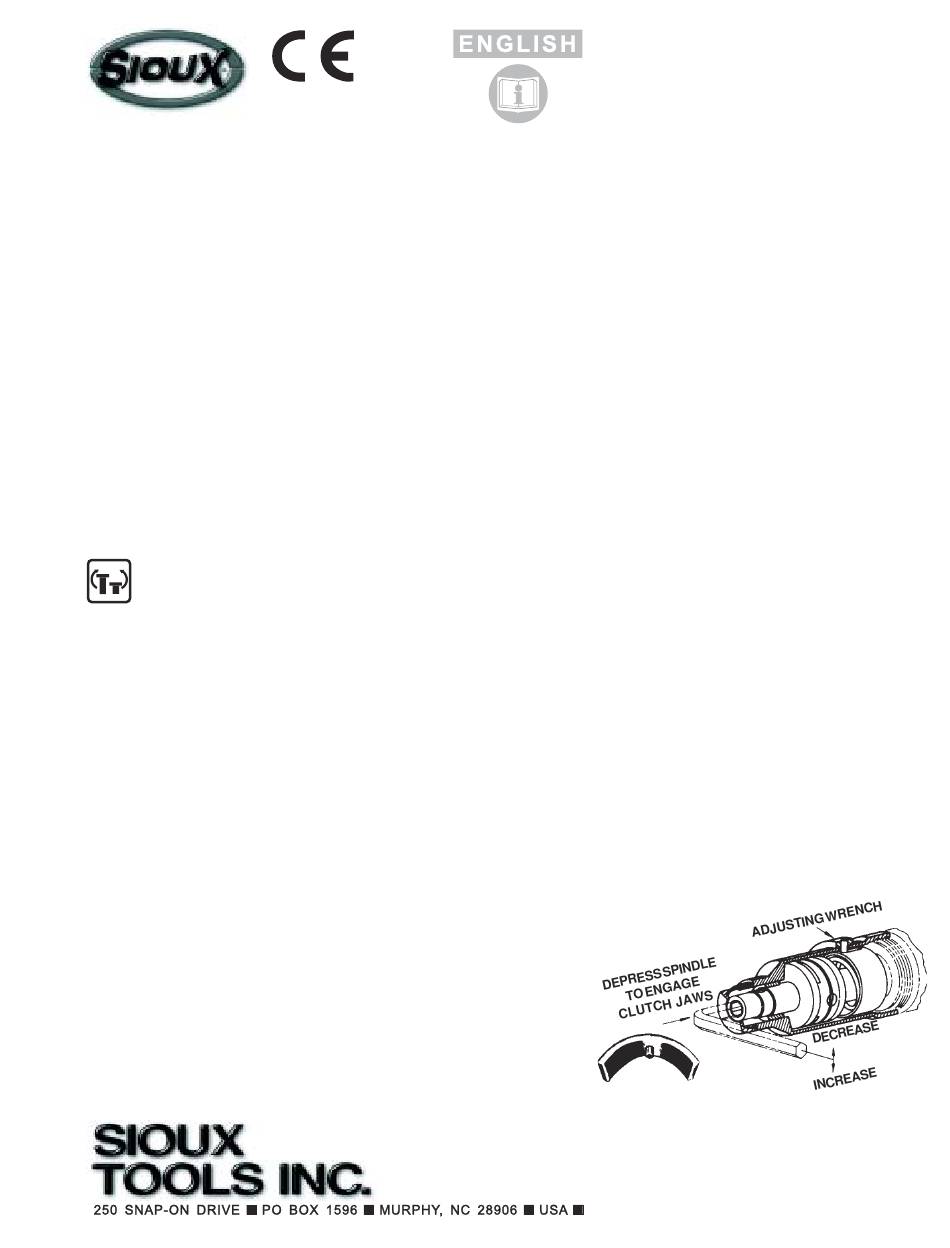

To adjust clutch place adjusting wrench (No. 53099) with pin through opening in
the clutch case. Place 1/4" (6.4 mm) HEX wrench in the Bit Holder, press in and
turn until adjusting wrench falls into the slot of the Nut of the Clutch. Keep Bit
Holder depressed in with HEX Wrench and turn clockwise to increase and
counterclockwise to decrease Torque.
BELOW 25 INCH POUNDS CHANGE TO GREEN SPRING NO. 41284
Again place adjusting wrench in position as for the higher Torque, but place a
screw driver blade through the bit holder opening until in contact with the slot at
the far end. Rotate screw driver until adjusting wrench falls into place, again
rotate screw driver clockwise to increase and counterclockwise to decrease
Torque.
INSTRUCTIONS FOR 2 1/2 SERIES ANGLE
NUTRUNNERS, SCREWDRIVERS, & DRILLS
ing this tool.
spindle. Motor stalls when fastener is tight.
spindle. Clutch ratchets when certain tightness is reached. Torque on the fastener is
determined by how hard the operator pushes on the tool.
not as hard.
spindle to turn. When fastener reaches a preset torque, clutch will ratchet. Adjusting
spring pressure will change torque.
53099
1
Form ZCE512
Date 2003June24/C
Page 1 of 16
Printed In U.S.A.
