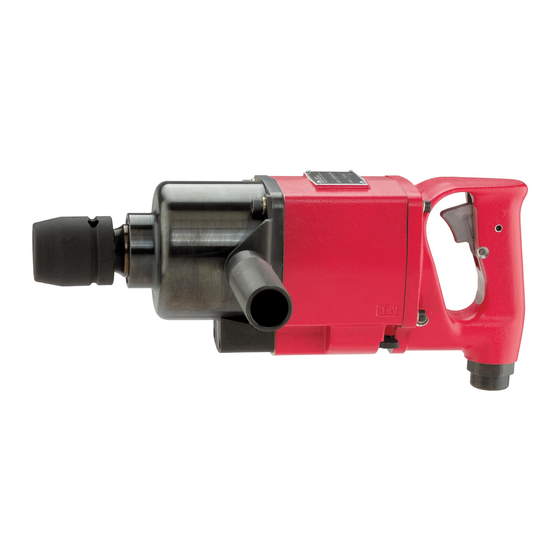

Air impact wrench
Hide thumbs Also See for IW100AI-8H:

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 1

Quick Links

Download this manual
INSTRUCTIONS AND PARTS LIST FOR
SIOUX AIR IMPACT WRENCH IW100AI-8H, IW100AI-8H6,
IW100AI-8H8, IW100AO-8H, IW100AO-8H6, IW100AO-8H8,
Read and understand "Safety Instructions For Air Tools" and these instructions before operating this tool.
FORESEEN USE OF TOOL
Impact wrenches should only be used to install and remove threaded fasteners.
AIR SUPPLY
The efficiency of the tool is dependent on the proper supply of clean dry air at 90 psig (6.2 bar). The use of a line filter, pressure regulator,
and lubricator will insure maximum output and life of tools. Before connecting tool, blow out the air line to remove water and dirt which may
have accumulated.
HOSE AND HOSE CONNECTIONS
Supply hose should be not less than 3/4" (19 mm) I.D. Extension hoses should be at least 3/4" (19 mm) I.D. Use couplings and fittings with
at least 3/4" (19 mm) I.D. When using quick couplers, install a 6 ft (2 m) leader hose between tool and quick couplers.
LUBRICATION
Use SIOUX No. 288 air motor oil. An airline lubricator, set to deliver 1 to 2 drops per minute, is recommended. If a lubricator is not used,
add .06 oz. (1.8 cc, 18 to 22 drops) of oil into the air inlet once daily.
MAINTENANCE
Disassemble, clean, and inspect the impact mechanism every two months. Coat all impact surfaces, splines and mating surfaces with
Sioux Catalog No. 1205-04Z grease and reassemble.
Inspect the tool daily for loose or missing fasteners. Tight all loose fasteners and replace all missing fasteners immediately.

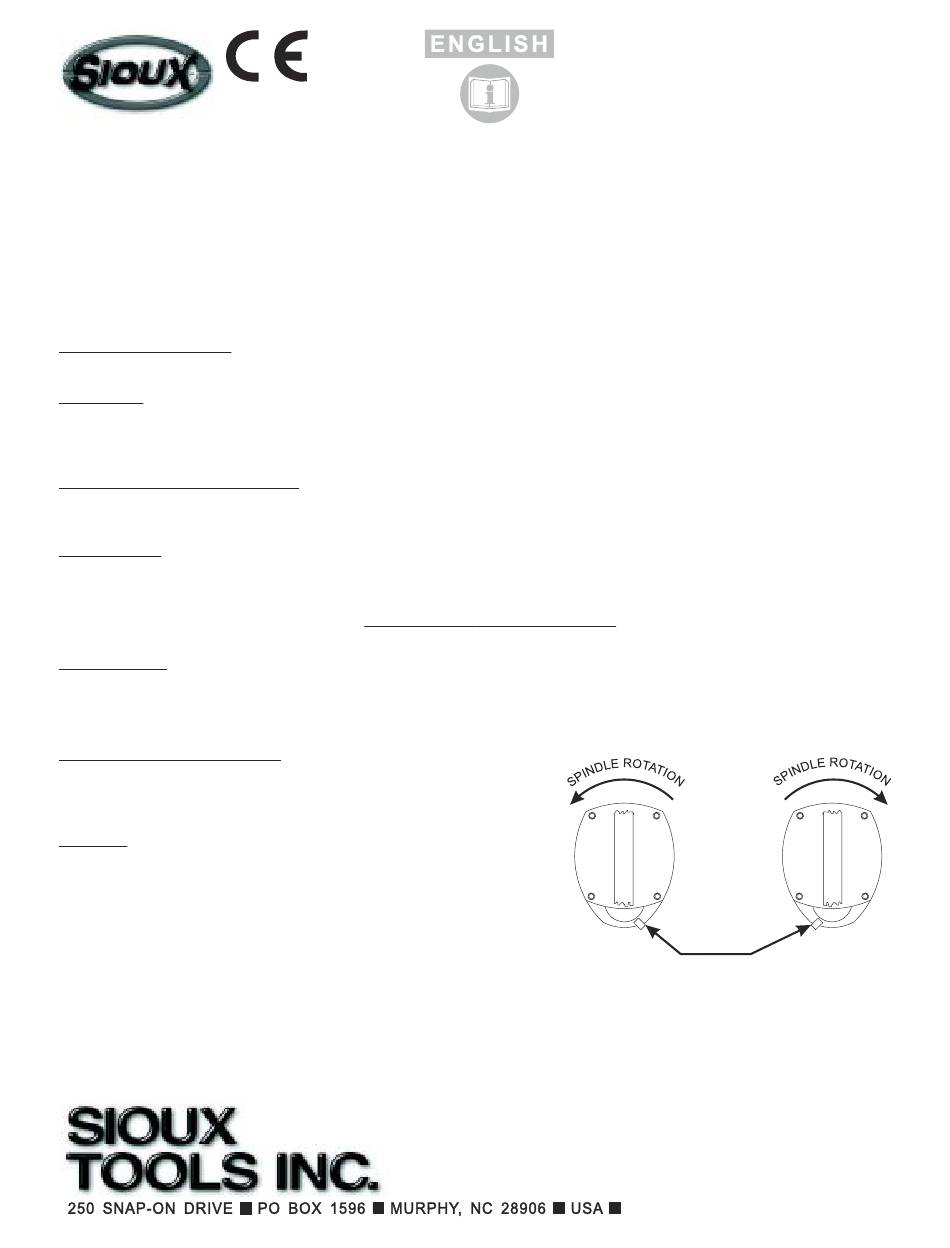

REVERSING SPINDLE ROTATION
The direction of the spindle rotation is controlled with the reversing lever
located on the rear of the motor housing, under the trigger handle. Refer to
illustration below for spindle rotation vs. reverse lever position.
SOCKETS
Use only impact sockets in good shape.
Use deep impact socket impact rather than extension bars.
IW100AI-5S, & IW100AO-5S
(STARTING WITH SERIAL "A")
GENERAL OPERATION
REVERSE LEVER
1
Form ZCE676
Date 2003July30/B
Page 1 of 18
POSITION
Printed In U.S.A.
